Detailed Specifications

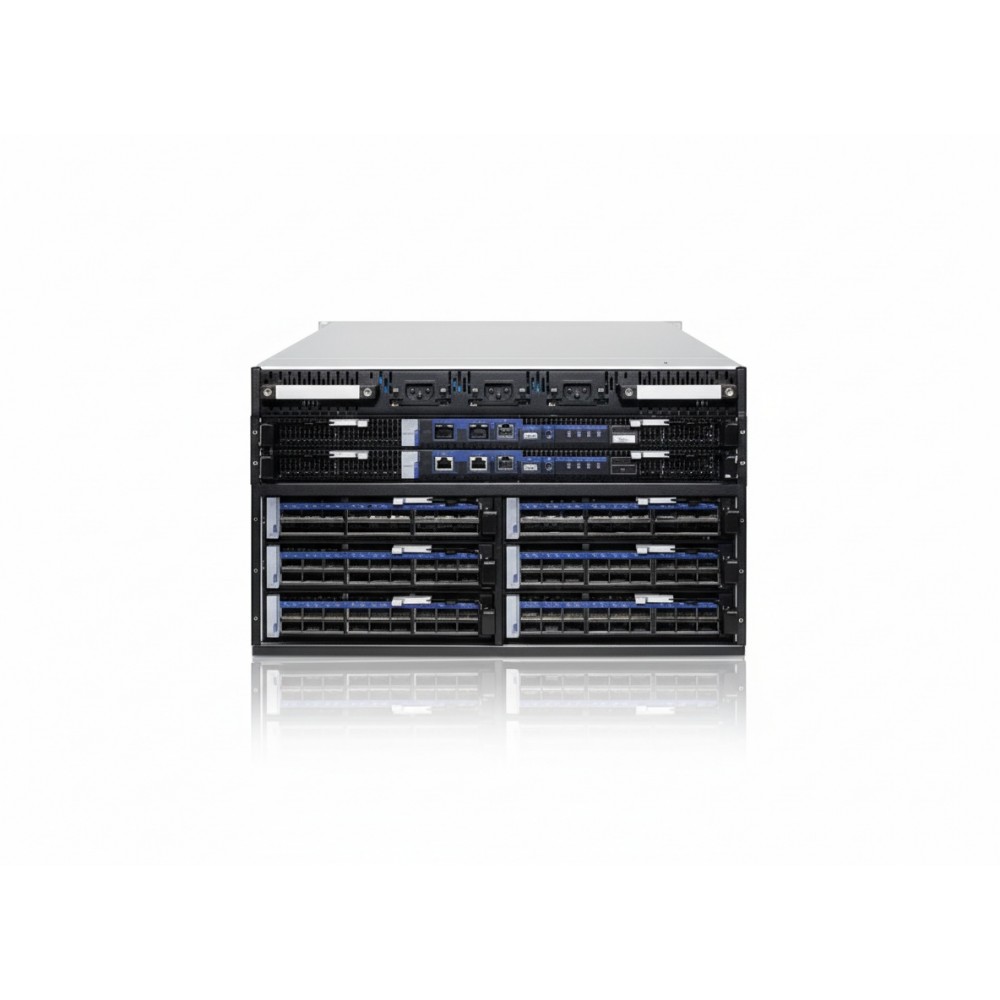

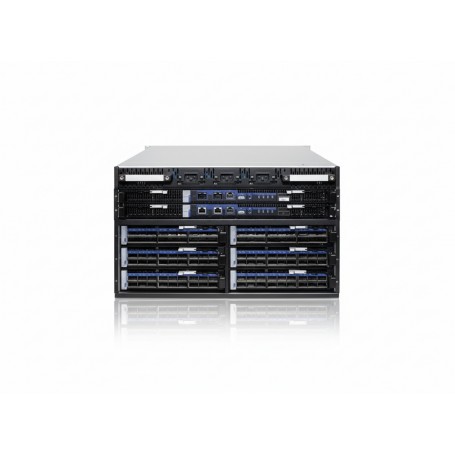

HPE R0X27-61201 Aruba CX 6410 v2 Modular Switch Chassis
Overview
The HPE R0X27-61201 is a modular switch-chassis designed for the Aruba CX 6410 v2 series, enabling flexible deployment of up to ten line-cards in a high-density core or aggregation rack. It accommodates hot-swappable power supply and cooling modules, permitting high availability and serviceability in enterprise networks. The chassis is suited for campus core, wiring closet or data-center aggregation zones, integrating into Aruba's AOS-CX software environment for unified management, telemetry and fabric automation.
Key Features
Ten open line-card slots for expandable port capacity
Two management-module bays for redundant control-plane configuration
Hot-swappable fan-tray and power-supply modules for minimum downtime
Compatible with line-cards offering PoE/UPoE, 1/10/25/100 Gb support
Rack-mounted form-factor suited for enterprise wiring closet or data-center installation
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | R0X27-61201 |
| Product Type | Modular switch chassis (Aruba CX 6410 v2) |
| Module Slots (Line-Cards) | Up to 10 |
| Management Module Slots | 2 |
| Power Supply Bays | Up to 4 modular units (ordered separately) |
| Fan Tray Slots | 4 (front-serviceable) |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 0 °C to 45 °C |
| Supported Altitude | Up to 10,000 ft (3,048 m) |
| Airflow Direction | Front-to-back |
| PoE Support via Line-Cards | Supports IEEE 802.3af/at/bt (depending on module) |
| Fabric Capacity (maximum) | Up to ~28 Tbps (fully populated) |
| Form Factor (H × W × D in inches) | ~20.8 × 17.5 × 17.7 in |
| Weight (empty chassis) | ~64.7 lbs |
| Architecture | Modular chassis with mixed-speed support (1/10/25/100 Gb) |
