Detailed Specifications

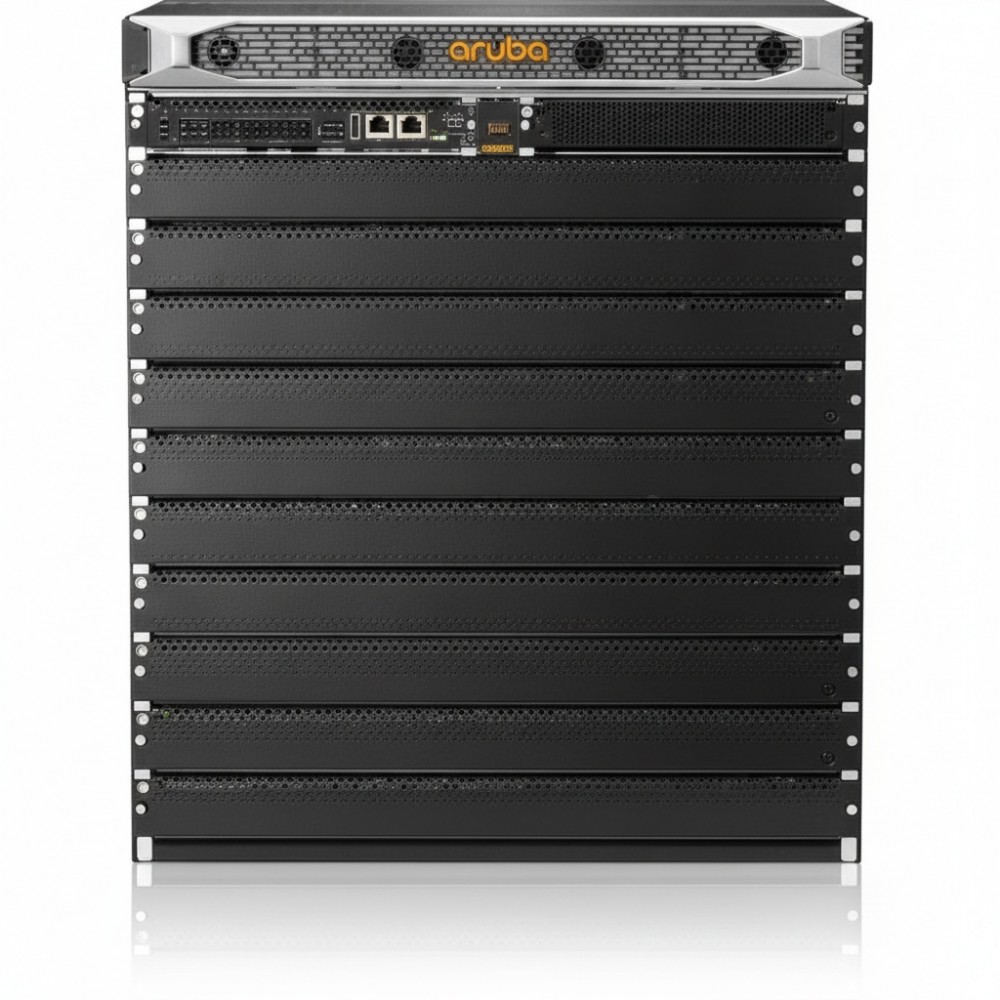

HPE R0X25C Aruba CX 6410 v2 Modular Switch Chassis
Overview
The HPE R0X25C is a modular chassis platform designed to support the Aruba CX 6410 v2 family of switches. It enables deployment of multiple line-cards in a single rack-mount enclosure, allowing capacity growth and interface diversification in campus core or data-centre aggregation layers. The chassis supports redundant power and cooling infrastructure as well as hot-swappable services, making it appropriate for high-availability environments. It integrates with the AOS-CX operating system and Aruba networking management platforms for centralized configuration, telemetry and automation.
Key Features
Ten line-card slots plus two management module bays for flexible expansion
Hot-swappable fan trays and power supplies for uptime resilience
Supports line-cards with PoE/UPoE capabilities for enterprise access scenarios
Rack-mount form-factor tailored for core/aggregation wiring closets with high-density demands
Compatible with Aruba's fabric services such as VSX for active-active switching
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | R0X25C |
| Product Type | Modular switch chassis (Aruba CX 6410 v2) |
| Module Slots (Line Cards) | Up to 10 |
| Management Module Slots | 2 |
| Fan Tray Slots | 4 (front-serviceable) |
| Supported Power Supply Bays | Up to 4 modular units |
| PoE Support via Line Cards | Supports IEEE 802.3af/at/bt (depending on module) |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Form Factor (H × W × D in inches) | Approximately 12-U height × 17.5 × 17.7 in |
| Weight | Approximately 64.7 lbs (empty chassis) |
| Operating Temperature | 0 °C to 45 °C |
| Supported Altitude | Up to 10,000 ft (3,048 m) |
| Airflow Direction | Front-to-back |
| Fabric Capacity (max) | Up to ~28 Tbps (when fully populated) |
| Architecture | Chassis supports mixed Ethernet speeds (1/10/25/100 Gb) via line-cards |
| Management OS | Aruba AOS-CX |
