Detailed Specifications

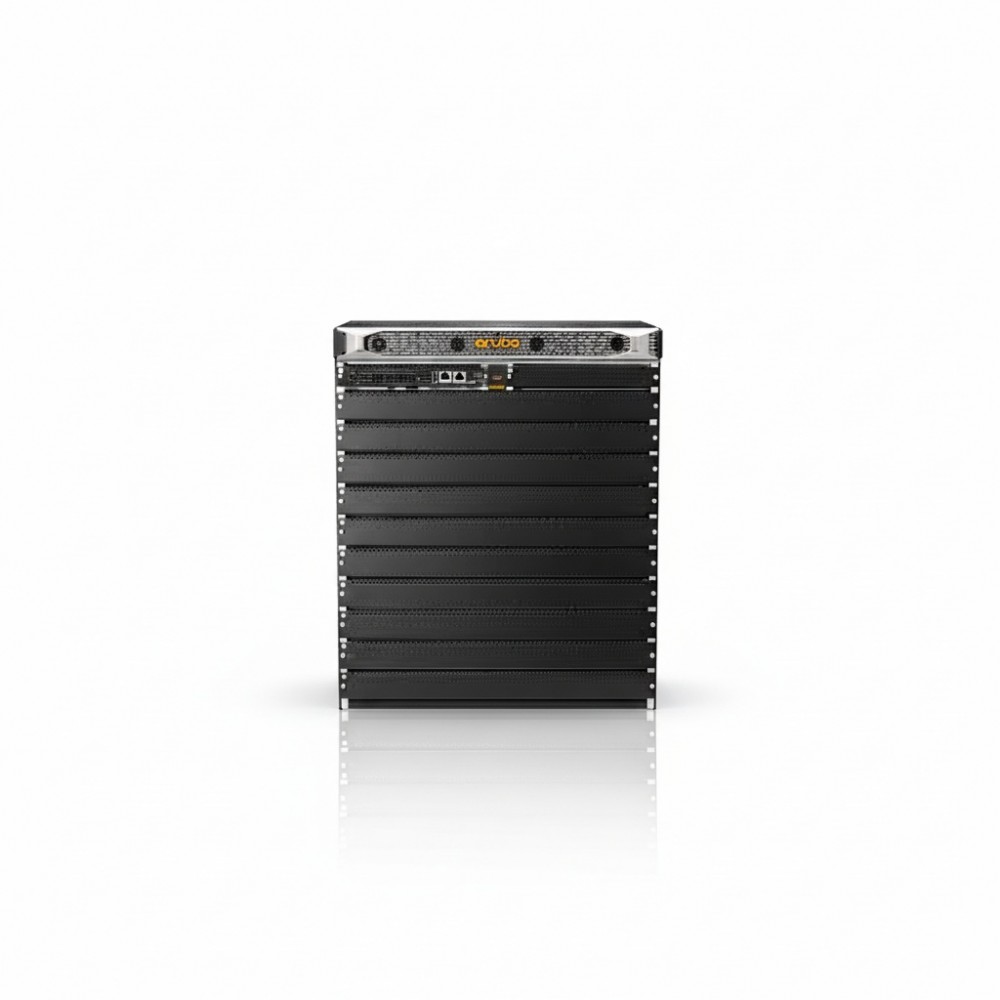

HPE R0X25-61101 Aruba CX 6410 v2 Modular Switch Chassis
Overview
The HPE R0X25-61101 is a modular chassis designed for the Aruba CX 6410 v2 series, intended for enterprise campus or data-center aggregation/core deployments. It offers a 10-slot architecture for line cards, and supports redundant fan trays and power supplies to meet high-availability requirements. The system is compatible with the AOS-CX operating system and integrates into Aruba's analytics, automation and fabric architectures. It supports hot-swappable modules and is engineered for deployment in rack environments using standard protocols for management and monitoring.
Key Features
10 open module slots for line-cards and fabric modules
Dual management-module slots for high-availability control plane
Front-serviceable, hot-swappable fan trays and power supplies
Supports IEEE 802.3af/at/bt PoE line-cards (dependent on modules used)
Rack-mountable 12-U form-factor optimized for campus/core wiring closets
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | R0X25-61101 |
| Product Type | Modular switch chassis (Aruba CX 6410 v2) |
| Module Slots | Up to 10 line-card slots |
| Management Module Slots | 2 |
| Fan Tray Slots | 4 front-serviceable trays |
| Power Supply Bays | Up to 4 modular power supplies (ordered separately) |
| PoE Support (via line-cards) | Supports IEEE 802.3af, 802.3at, 802.3bt standards through compatible line-cards |
| Processor (Management) | Quad-core ARM Cortex A72 @ 1.8 GHz (in management module) |
| Memory (Management Module) | 16 GB DDR4 ECC |
| Flash Storage (Management Module) | 32 GB eMMC |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Form Factor (H × W × D) | 12 U height, approx 20.8 × 17.5 × 17.7 in (based on typical chassis dimensions) |
| Weight | ~64.7 lbs (29.3 kg) for empty chassis |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Supported Altitude | Up to 10,000 ft (3,048 m) |
| Airflow Direction | Front-to-back |
| Maximum Fabric Capacity | Up to ~28 Tbps (series maximum with full module set) |
