Detailed Specifications

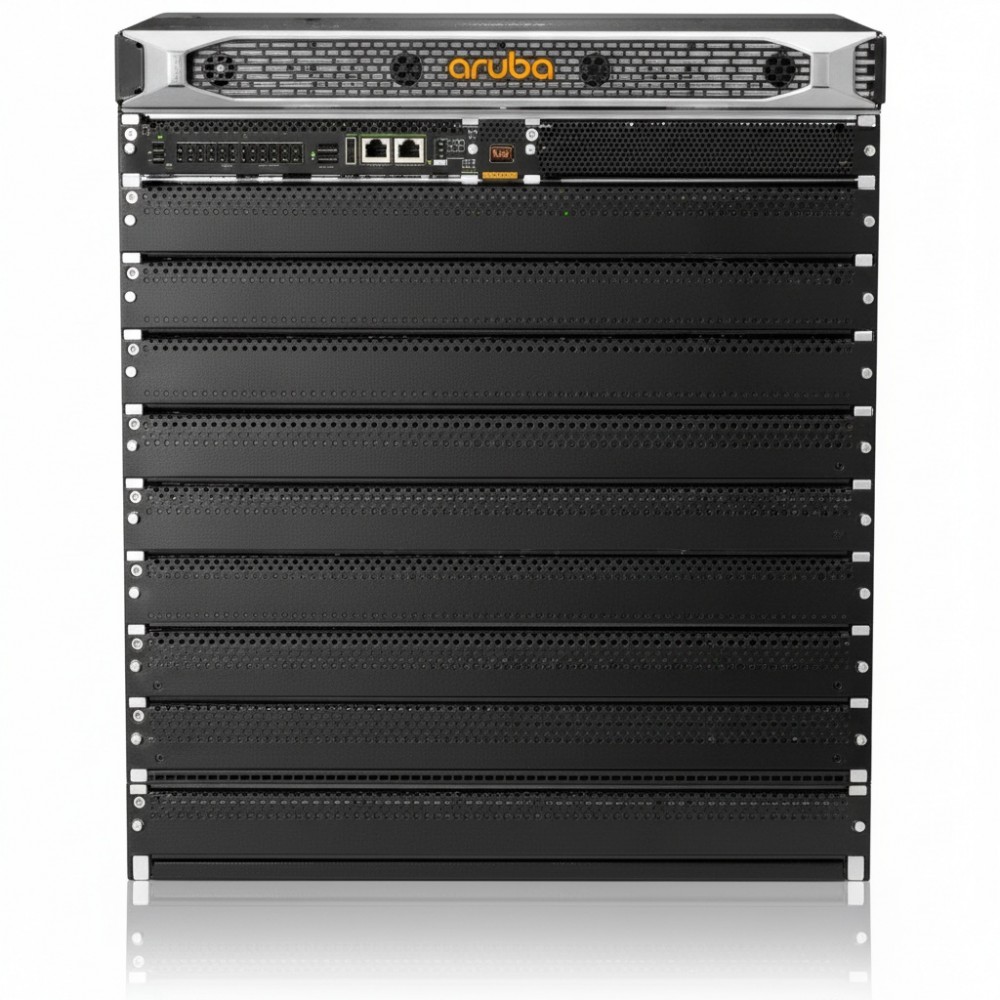

HPE R0X25A Aruba CX 6410 Chassis for Modular Switch Fabric
Overview
The HPE R0X25A is a modular chassis designed for the Aruba CX 6410 switch family, allowing deployment of up to ten line-cards in a single 10-slot rack enclosure. It supports high-density enterprise deployments where flexible module upgrades and fabric scalability are required. The chassis suits data-center core and aggregation layers or campus environments where growth, high-availability power/fan architecture and advanced management are needed. Integration with the Aruba AOS-CX software stack ensures consistent configuration, telemetry and fabric management across modules.
Key Features
Ten open module slots for line-cards and modules
Two management-module slots and four fan-tray slots for redundancy
Supports PoE/UPoE line-cards (e.g., IEEE 802.3af/at/bt) for flexible power delivery
Front-serviceable, hot-swappable power supplies and fan trays for high availability
Modular chassis architecture enables in-field upgrades of capacity and interface types
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | R0X25A |
| Product Type | Chassis for Aruba CX 6410 modular switch |
| Module Slots | 10 open slots for line-cards |
| Management Module Slots | 2 |
| Fan Tray Slots | 4 |
| Supported Power Supplies | Up to 4 modular power supplies (ordered separately) |
| PoE Support | Supports IEEE 802.3af/at/bt line-cards |
| Memory (Management Module) | 16 GB DDR4 ECC |
| Flash (Management Module) | 32 GB eMMC |
| Packet Buffer (Line Cards) | 8 MB or 32 MB depending on line-card model |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) up to 5,000 ft |
| Dimensions (H × W × D in inches) | 20.8 × 17.5 × 17.7 in |
| Weight | ~64.7 lbs (29.3 kg) |
| Supported Altitude | Up to 10,000 ft (3,048 m) |
| Airflow | Front-to-back |
| AC Input Voltage | 100-240 VAC, 50/60 Hz |
