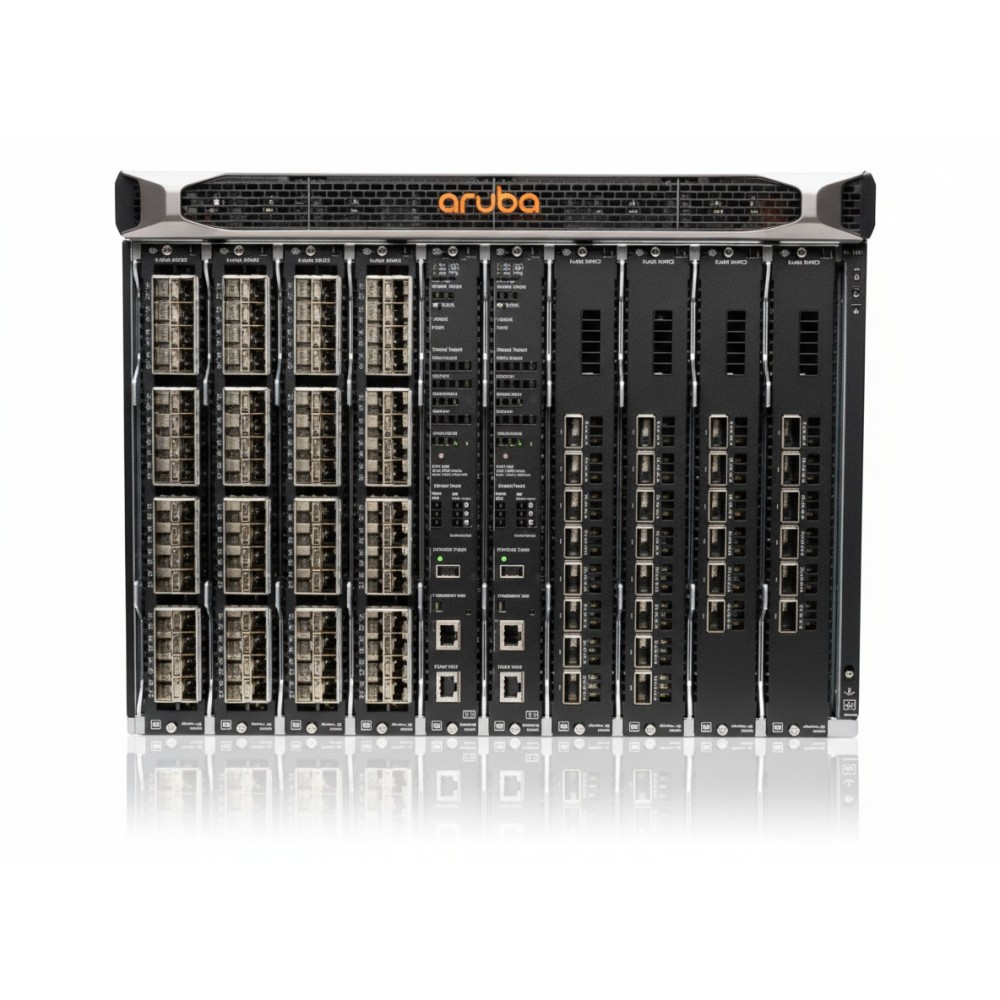

HPE R0X24-61001 Aruba CX 6400/6405 Modular Switch Chassis
Overview
The HPE R0X24-61001 is a rack-mount modular chassis designed for the Aruba CX 6400 Series in enterprise campus or data-centre deployments. It provides a base platform with multiple module slots allowing switching, uplink, PoE or line-card expansion, solving the problem of fixed-port switches by enabling future growth without full chassis replacement. The chassis supports hot-swappable fan trays, management modules and redundant power supplies to maintain high availability under load. It is suited for access-aggregation layers or flexible campus backbone racks requiring modular growth, high port densities, multi-gig access and modern switching services.
Key Features
Modular 7-RU chassis format with 5 line-card slots, 1 management slot, 2 fan trays
Supports Gen-7 ASIC line-cards up to 100 GbE, 25 GbE and multi-gig ports
High-availability design with redundant power supplies and hot-swappable cooling
Full-feature Layer 3 switch fabric with non-blocking architecture across slots
Integration with ArubaOS-CX enabling programmability, analytics and VSX stacking
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | R0X24-61001 |
| Product Type | Aruba CX 6400/6405 Modular Switch Chassis |
| Chassis Height | 7 RU |
| Line-Card Slots | 5 slots |
| Management Module Slots | 1 slot |
| Fan Tray Slots | 2 trays |
| Top-of-Rack/Uplink Fabric | Supports 100 GbE, 25 GbE, multi-gig via line-cards |
| Non-Blocking Fabric Capacity | Up to ~28 Tbps aggregate across line-cards |
| Stack/VSX Capability | Yes, for high availability and dual-control-plane operation |
| Module Insert Architecture | Hot-swappable line-cards, management, fan trays |
| Environment Operating Temp | 0 °C to 40 °C (typical data-centre ambient) |
| Power-Supply Redundancy | Dual AC-power inputs (redundant) |
| Compatible OS | ArubaOS-CX |
