Detailed Specifications

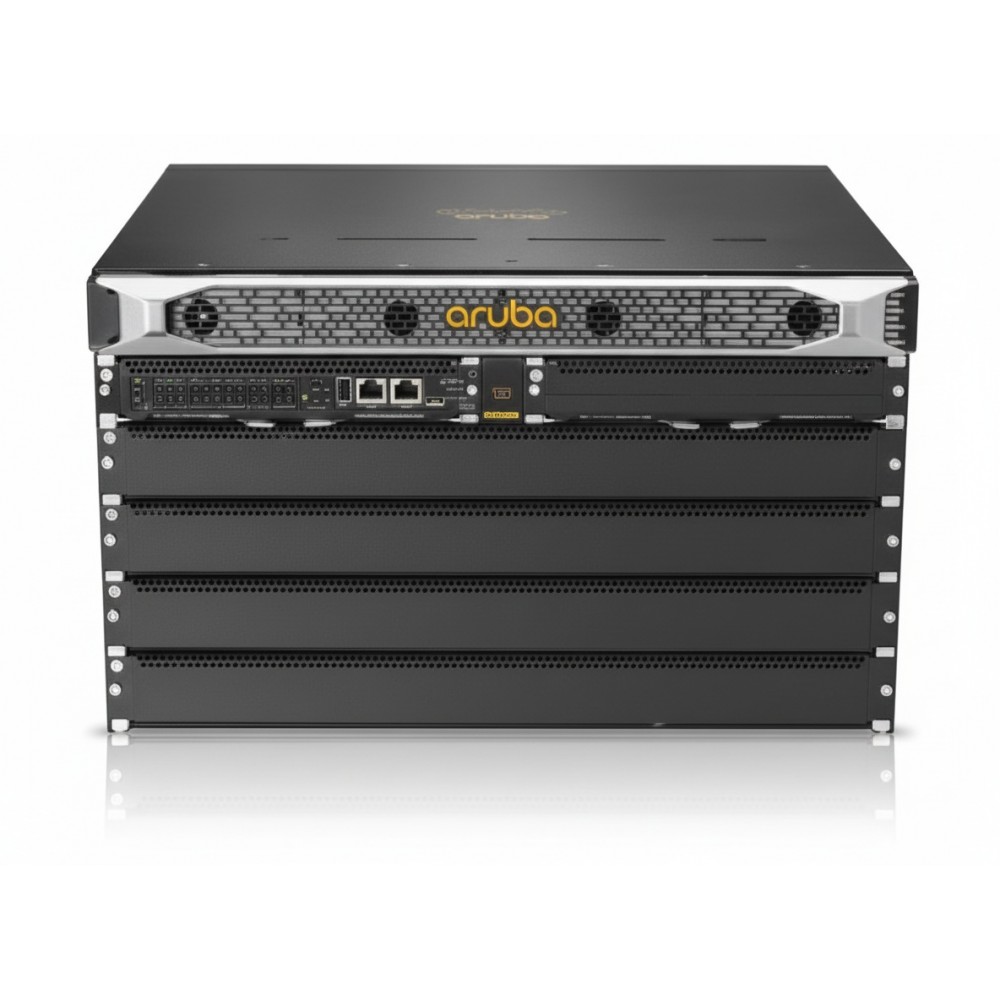

HPE R0X24-61101 Aruba 6405 Series Switch Chassis
Overview
The HPE R0X24-61101 is a chassis unit designed for the Aruba 6405 series modular switch platform, intended for enterprise network infrastructure engineers who need a flexible, high-capacity switching foundation. It supports up to seven slots including five line-card/module bays, two fan/airflow trays and one management module slot, offering scalability and serviceability for access, aggregation or campus deployments. The chassis is rack-mountable, supports stacking and modular upgrades of line-cards as network demands grow, enabling incremental expansion without replacing the entire foundation. It fits in wiring closets, branch aggregation racks or campus distribution nodes and integrates with the ArubaOS-CX operating system and management ecosystem for unified configuration and automation. The design supports redundant power and airflow options (depending on configuration), and is suited for organizations planning growth, high availability and evolving access/aggregation needs.
Key Features
Up to 7 physical slots including 5 line-card bays
Designed for Aruba 6405 modular switch platform
Stackable chassis for increased scale and resilience
RJ-45 console port plus management module bay for network control
Rack-mountable in standard 19-inch racks
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | R0X24-61101 |
| Product Type | Switch chassis - Aruba 6405 series |
| Card/Line-card Slots | Up to 5 line-card/module bays |
| Management Module Slots | 1 slot for management module |
| Fan or Air Tray Bays | 2 fan or airflow trays |
| Console Port | 1 × RJ-45 console port |
| Rack Units | 7 RU |
| Chassis Depth | (not publicly confirmed) |
| Chassis Width | Standard 19-inch rack width |
| Stackable | Yes |
| Compatible Modules | Aruba 6400/6405 series line cards |
| Power Supply Bays | Dependent on module configuration (redundancy possible) |
| Form Factor (H × W × D) | 12.25 in × 19.0 in × (depth unspecified) |
| Weight (empty chassis) | Approx. 46.0 lbs (verified in reseller listing) |
| Operating Temperature | 0 °C to 45 °C typical data-centre range |
