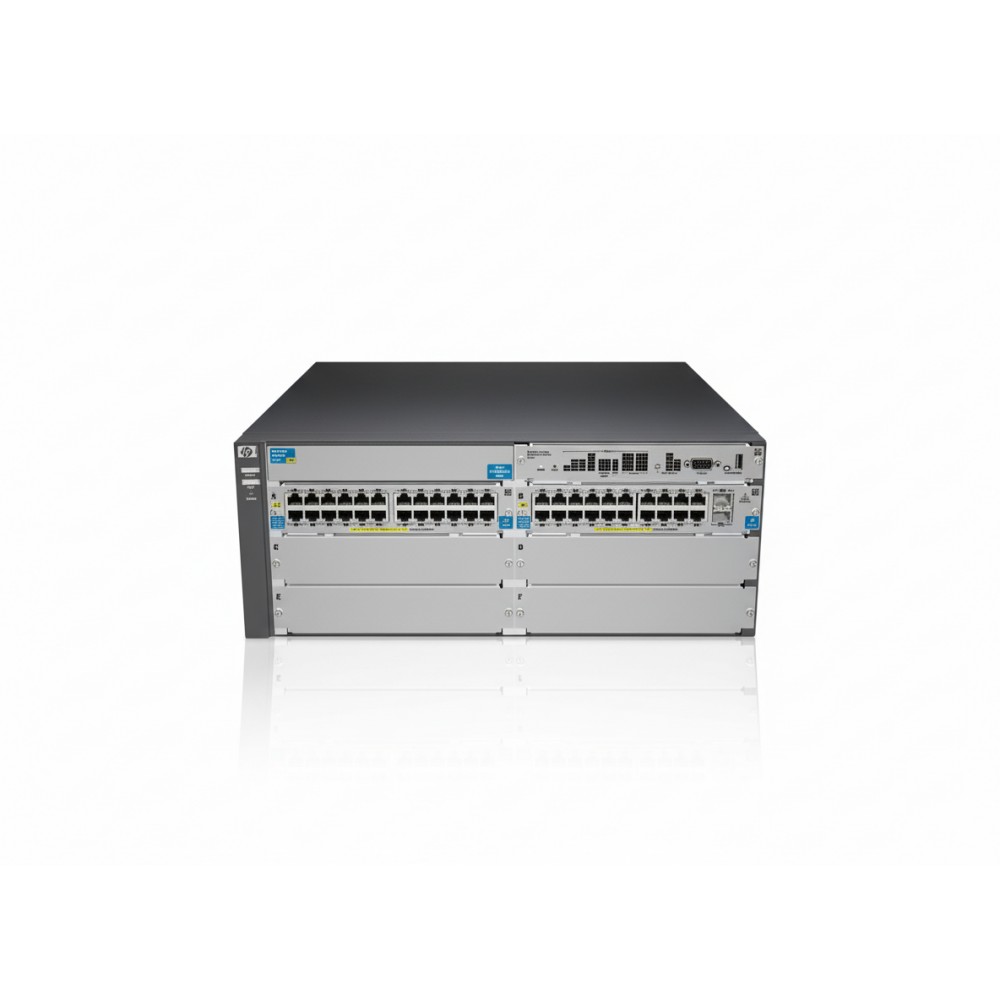

HP J9642A 5400 zl Series E5406 zl Switch Chassis View larger

HP J9642A 6 Slot Modular Switch Chassis 5406 zl

New

HP 5406 zl modular switch chassis (6‑slot)
×




  • New
  • Refurbished

Detailed Specifications

HP J9642A – Modular Chassis Switch / 6‑Slot 5400 zl Series

Overview :

The HP J9642A is the 6‑slot modular chassis switch targeted at networking engineers and IT teams deploying high‑capacity, flexible infrastructure. It supports installation of a variety of 10/100/1000 and 10 GbE modules and is designed to solve the challenge of scaling ports, uplinks and features in enterprise‑edge or distribution layer environments. With support for up to 48 10 GbE or 144 autosensing gigabit ports (or mini‑GBICs) it provides significant density in a 4U form factor. This chassis fits in campus core, data‑centre aggregation or large branch edge deployments where slot‑based modularity is required. It integrates into HP’s (now HPE) management ecosystem including CLI, web GUI and SNMP based systems—as part of a unified wired and wireless infrastructure.

Key Features :

  • 6‑slot modular chassis supports diverse I/O modules

  • Up to 48 10 GbE or 144 1 Gb autosensing ports

  • Supports full Layer 2/Layer 3 feature set including IPv4/IPv6

  • Designed for 4U rack‑mount height in standard racks

  • Hot‑swappable modules and redundant power‑supply capability

Specifications :

ParameterValue
Brand HP
Part Number J9642A
Product Type 6‑slot modular chassis switch (5406 zl Series)
Chassis slots 6 open module slots
Max ports (10 GbE) Up to 48 ports
Max ports (1 Gb autosense) Up to 144 ports
Backplane / Switching Fabric* 760 Gbps backplane (as cited)
Dimensions (W×D×H) 17.5 in × 17.75 in × 6.9 in
Weight 23.55 lbs
Rack height 4 U
Minimum power supplies 1 required (slots for redundant supplies)
Feature set IPv4/IPv6, BGP, OSPF, policy‑based routing
Management interfaces Console, auxiliary, web GUI, CLI, SNMP
Hot‑swap support Yes (modules and transceivers)
License / Software Premium Software included
