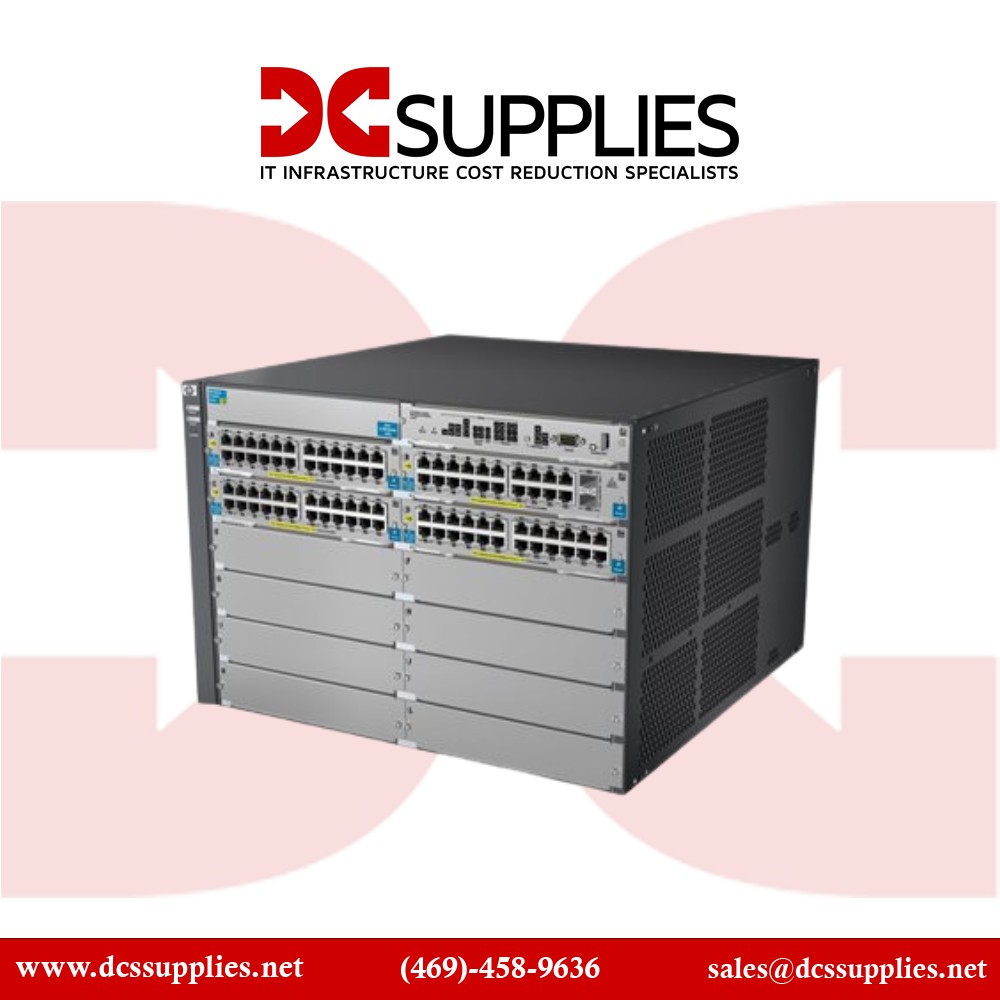

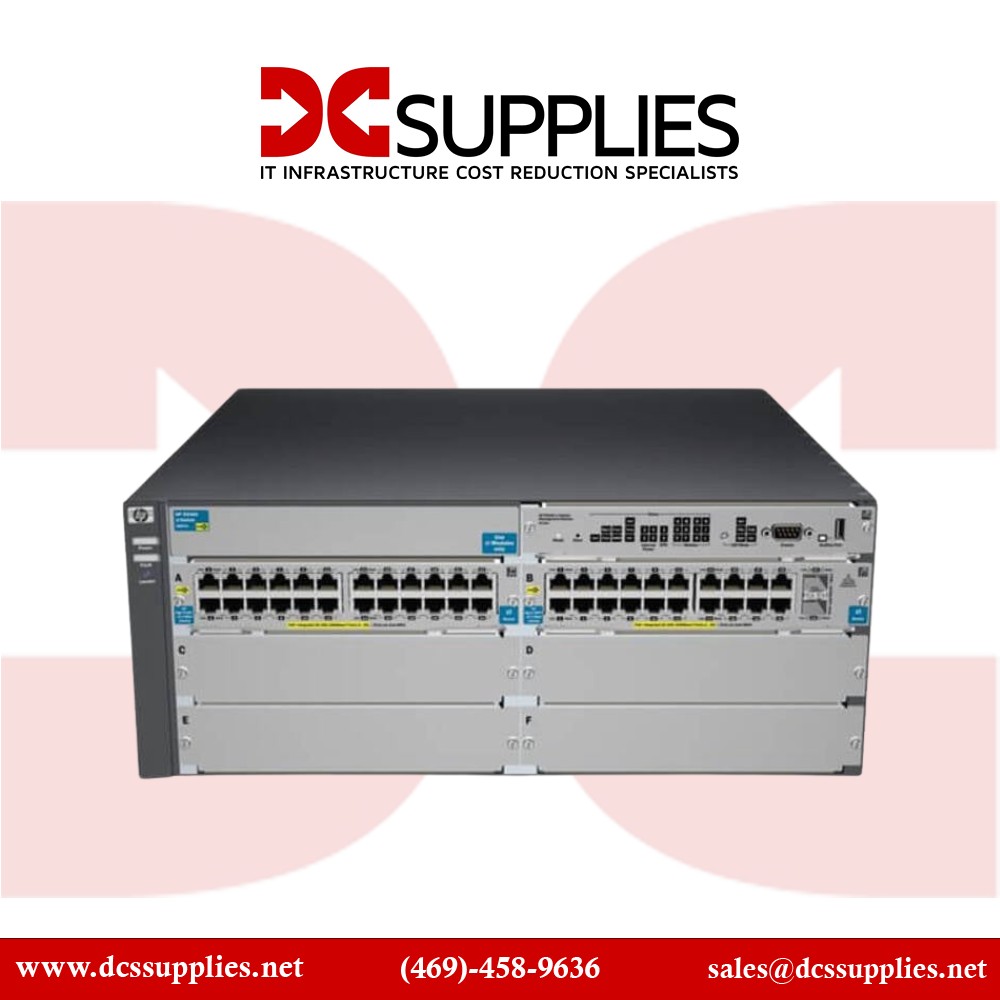

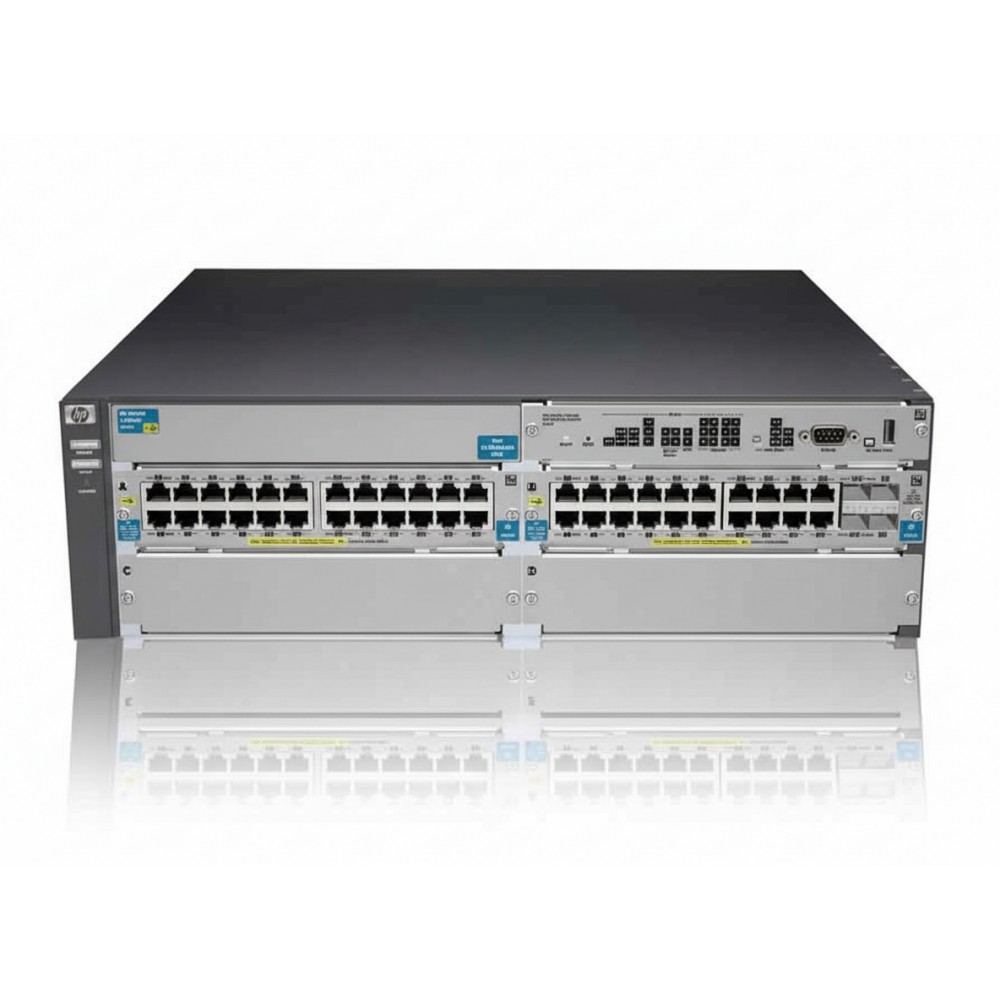

HPE Aruba J9539A E5406-44G-PoE+/4G-SFP Switch Chassis

New

44‑port Gigabit PoE+ modular switch chassis (4× SFP uplinks, 6‑slot,

×




  • New

Detailed Specifications

HPE J9539A

Aruba E5406‑44G‑PoE+/4G‑SFP Switch Chassis Model

The HPE Aruba E5406‑44G‑PoE+ /4G‑SFP v2 zl (Model J9539A) is a modular Layer 3 managed switch chassis offering 44 PoE+ gigabit ports alongside four SFP uplinks and six expansion slots for future growth. This flexible platform suits enterprise edges, branch offices, and campus access layers requiring high uptime and rich feature sets.

Features

Part of the HPE Aruba 5400 zl series, this chassis is built on a programmable ProVision ASIC fabric delivering up to ~760 Gbps switching capacity (379.2 Gbps per half‑chassis) and enterprise‑grade Layer 2–4 services such as OSPF, RIP, static routing, IPv6, policy-based routing, and OpenFlow support—all without separate licensing .

Advanced Options

The chassis includes 6 slots supporting PoE+ line cards or high-speed uplinks. It comes pre-populated with two module cards (e.g. a 24-port PoE+ and a 20-port PoE+ plus 4× SFP uplink module), with four slots free for future expansion. A 1500 W internal PoE+ supply (J9306A) is included, and hot-swappable redundant PSUs can be added to ensure high availability .

Product Key Features

  •  44 × autosensing 10/100/1000 BASE‑T PoE+ RJ‑45 ports

  •  4 × 1 Gb SFP uplink ports for fiber or copper connectivity

  •  ProVision-based chassis with Layer 3 routing and QoS support

  •  Redundant power supply support and hot-swappable modules

  •  Six expansion slots for additional line cards or uplink modules

  •  Advanced management via CLI, web UI, SNMP (v1/2c/3), RMON


Reliability & Performance

Engineered for mission-critical operations, the J9539A chassis supports redundant power supplies and hot-swappable line cards and fans, ensuring uninterrupted operation. With 256 MB DDR SDRAM, 4 MB flash memory, support for jumbo frames, robust QoS, and dynamic VLAN segmentation, it offers both flexibility and resilience for enterprise deployments

Key Features :

  • 44 × autosensing Gigabit PoE+ ports (IEEE 802.3at)

  • 4 × 1 Gb SFP uplink ports (mini-GBIC)

  • Six modular expansion slots (4 free) for PoE or uplink cards

  • Layer 3 routing: OSPF v2/v3, RIP, static IPv4/v6, policy routing

  • ProVision ASIC architecture: stable QoS, VLAN, OpenFlow support

  • Redundant, hot-swappable PSU (1500 W included; additional optional)

  • CLI, Web GUI, ProCurve Manager, SNMP v1/v2c/v3, RMON support

  • Support for IPv6, VLANs, security ACLs, QoS, jumbo frames

  • MAC table up to ~64K entries, wire-speed forwarding

  • Lifetime warranty and environmental compliance (RoHS)

SpecificationDetails
Model Number J9539A (E5406‑44G‑PoE+/4G‑SFP v2 zl)
Product Type Layer 3 Modular Switch Chassis (4U rack-mountable)
PoE+ Ports 44 × 10/100/1000 BASE‑T RJ‑45 PoE+
Uplink Ports 4 × 1 Gb SFP (mini‑GBIC)
Expansion Slots 6 total (4 currently free for modules)
Included Modules 2 pre-installed PoE+ / uplink modules (J9534A + J9535A)
Switching Capacity 379.2 Gbps (single chassis)
Forwarding Rate Up to ~282.1 Mpps
RAM / Flash 256 MB DDR SDRAM / 4 MB Flash
MAC Table Size ~64K entries
Routing Protocols OSPF, RIP-1/2, static IPv4/IPv6, VRRP, policy-based routing, multicast support
Management Interfaces CLI, Web UI, SNMP v1/v2c/v3, RMON 1/2/3/9, Telnet
QoS / Security Features VLANs, ACLs, DiffServ, IGMP/MLD snooping, QoS shaping, OpenFlow support

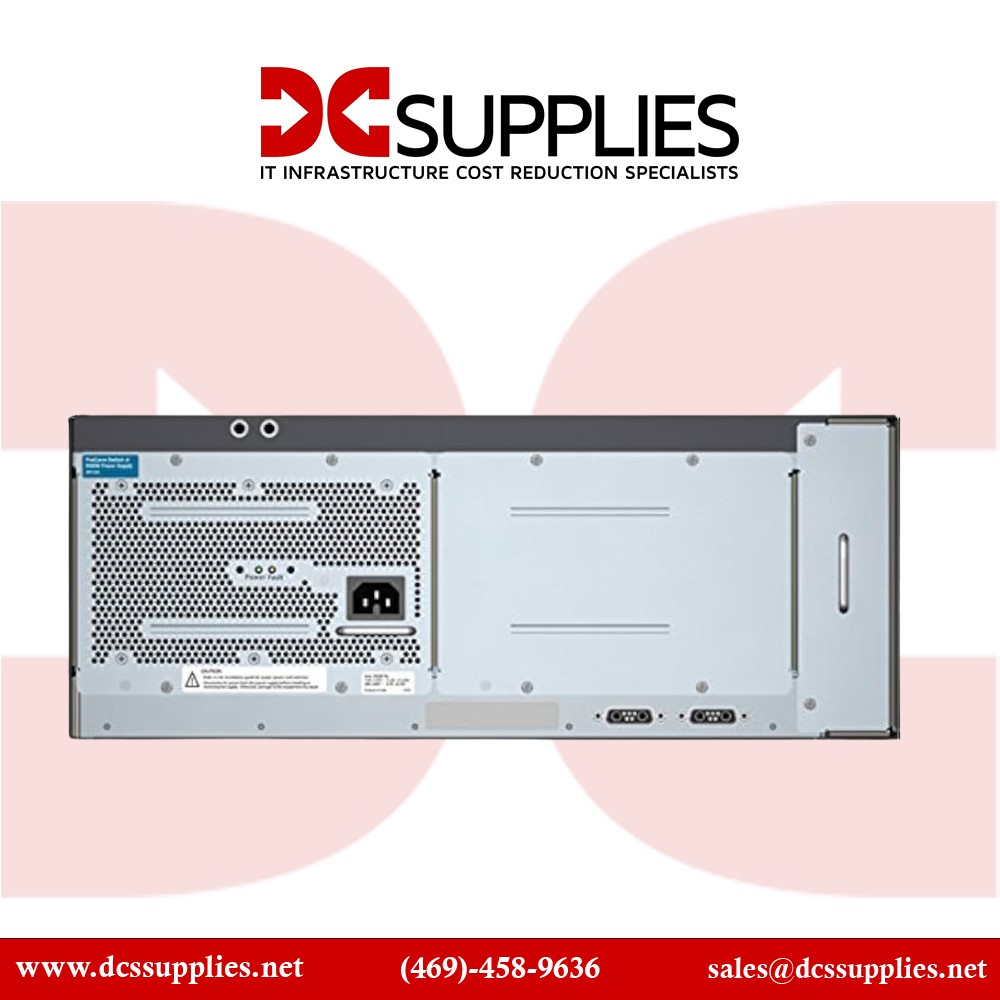

Redundancy & Power Internal 1500 W PoE+ PSU (included), optional redundant PSU supported
Form Factor 4U rack-mountable / desktop deployment possible
Dimensions (H×W×D) ~6.9″ × 17.5″ × 17.8″ (44.5 cm × 45.1 cm)
Weight ~45.6 lb (20.7 kg)
Environmental Specs 0–55 °C; 15–95 % non‑condensing
