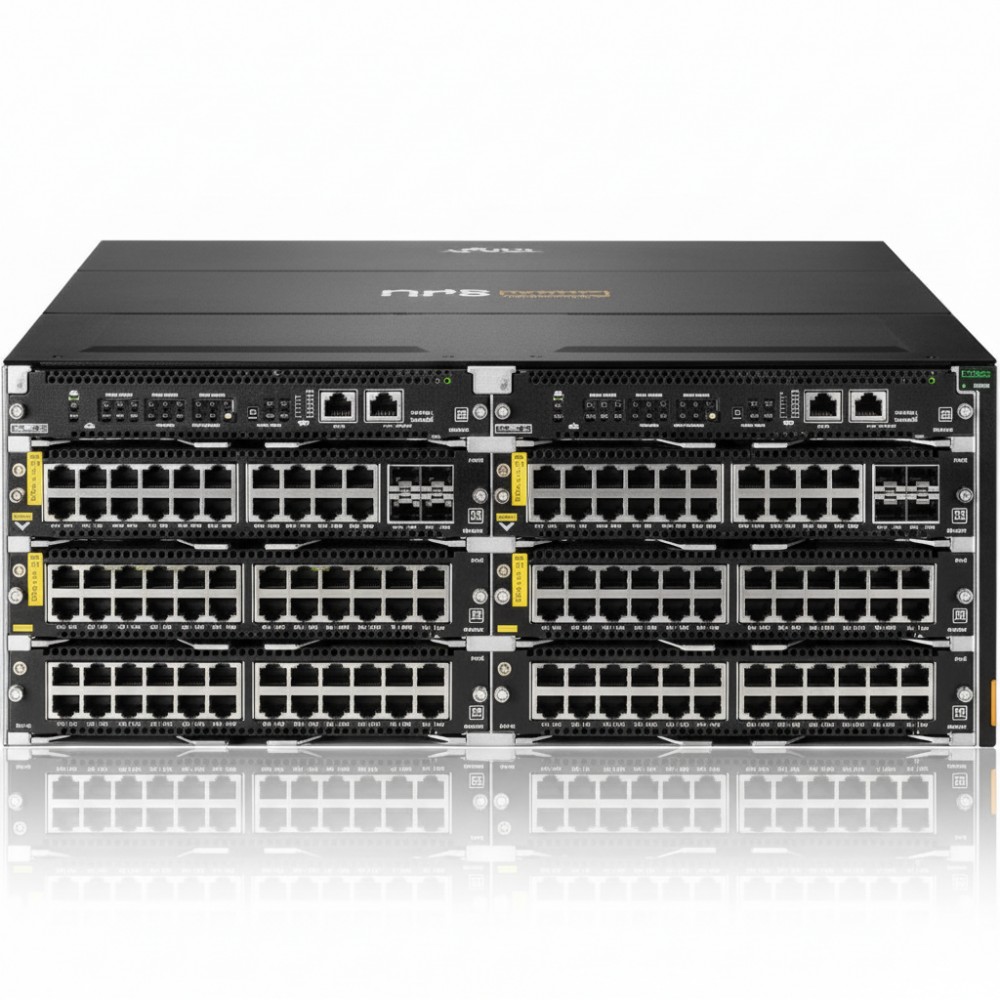

HPE S0U61A Aruba Networking CX 5420 Switch Chassis

S0U61A

New

HPE Aruba S0U61A Networking CX 5420
×




Detailed Specifications

HPE S0U61A – Aruba CX 5420 24‑Port 1 Gb RJ‑45 Access Module

Overview

The HPE S0U61A is a 24-port 10/100/1000 Mbps RJ-45 line card built for the Aruba CX 5420 modular chassis. It’s a straightforward, non‑PoE access layer module that delivers cost‑efficient gigabit connectivity where power over Ethernet isn’t required. Ideal for access closets, campus edge, or branch deployments, this card plugs into the 5420 chassis and leverages the AOS‑CX operating system for full Layer‑3 routing, automation, and VSX high-availability. Because it’s part of the modular chassis, it provides growth flexibility — mix it with other cards (PoE, fiber, high-speed) as your network evolves.

Key Features

  • 24 × 10/100/1000 RJ-45 ports — reliable gigabit access for non‑PoE devices.

  • Gen‑7 ASIC architecture — delivers wire-speed performance, low latency, and efficient packet processing.

  • Layer‑3 switching with AOS‑CX — supports OSPF, static routing, ACLs, and automation.

  • Front-to-back airflow design — aligns with the CX 5420 chassis cooling for efficient thermal management.

Technical Specifications

SpecificationDetail
Brand HPE / Aruba Networking
Part Number S0U61A
Product Type Modular Line Card (Chassis)
Port Configuration 24 × RJ-45 (10/100/1000 Mbps)
Switching Bandwidth 24 Gbps slot capacity
Throughput / Packet Rate ~714 Mpps
Management / OS Aruba AOS‑CX via CX 5420 chassis
Power / PoE No PoE on this module
Airflow Front-to-back (consistent with chassis)
Dimensions / Weight ~214.7 × 212.2 × 45.15 mm; ~0.92 kg
Operating Temperature 0 °C to 45 °C
