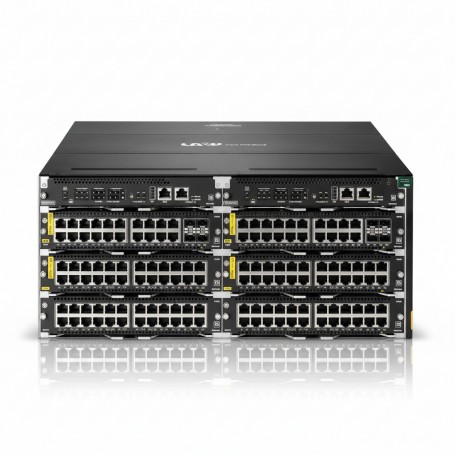

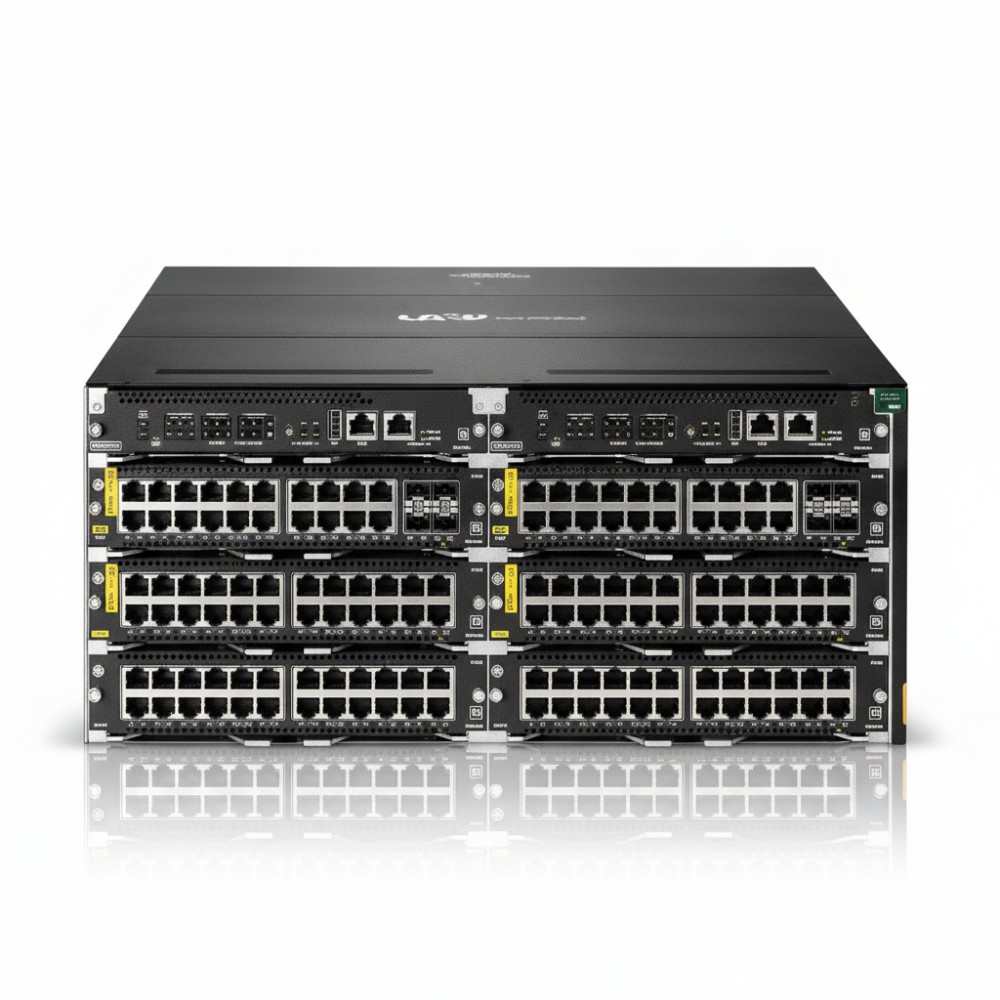

HPE Aruba S0U66A Networking CX 5420 Switch Series View larger

HPE S0U66A Aruba Networking CX 5420 Switch Chassis

S0U66A

New

HPE Aruba S0U66A Networking CX 5420 Switch
×




Detailed Specifications

HPE S0U66A – Aruba CX 5420 16‑Port Smart‑Rate (1/2.5/5 Gb) Class‑6 PoE Module

Overview

The HPE S0U66A is a modular line card for the Aruba CX 5420 chassis, providing 16 RJ‑45 Smart‑Rate ports that support 1 Gb, 2.5 Gb, and 5 Gb speeds, plus Class‑6 PoE. This module is designed for access-layer environments where multi‑gig speeds are needed but full 10 Gb is not, and where connected devices require moderate-to-high PoE power (e.g. modern APs, phones, high-powered IoT). It plugs into the CX 5420 chassis, running on AOS‑CX, giving you full Layer‑3 routing, VSX, network automation, and high availability support. The module is supported on AOS‑CX from version 10.15.0001 onward.

Key Features

  • 16 × Smart‑Rate RJ‑45 ports (1 / 2.5 / 5 Gb) — supports modern multi-gig devices.

  • Class‑6 PoE support — provides substantial PoE power over Smart‑Rate copper.

  • Gen‑7 ASIC architecture — efficient processing, low latency, and full AOS‑CX functionality.

  • AOS‑CX management — enables Layer‑3 routing, automation (REST, CLI), VSX redundancy, and more.

Technical Specifications

SpecificationDetail
Brand HPE / Aruba Networking
Part Number S0U66A
Product Type Modular Line Card (Chassis Module)
Port Configuration 16 × Smart‑Rate (1 / 2.5 / 5 Gb) RJ-45
PoE Class Class 6 (IEEE 802.3bt)
Switching Capacity (per Slot) 80 Gb/s
Management / OS AOS‑CX (CLI, REST, Web)
Minimum Supported AOS‑CX Version 10.15.0001
Operating Temperature 0 °C to 45 °C
Packet Buffer Memory 64 MB shared across ports (chassis spec)
Latency ~2.5 microseconds (per line‑card spec)
MACsec Hardware-capable
