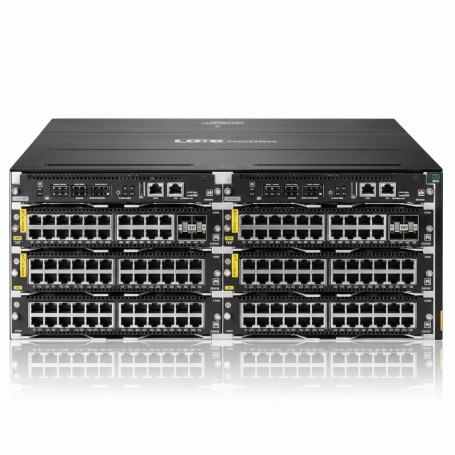

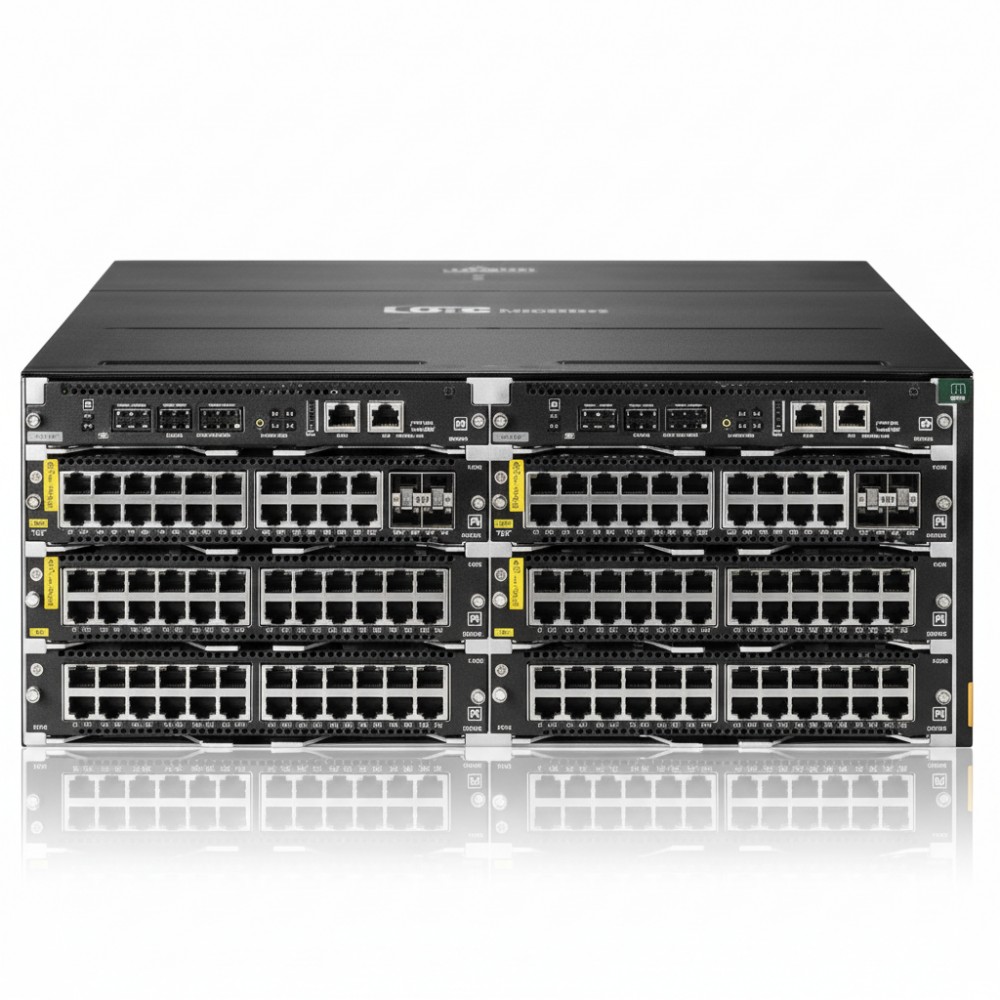

HPE Aruba S0U65A Networking CX 5420 View larger

HPE S0U65A Aruba Networking CX 5420 Switch Chassis

S0U65A

New

HPE Aruba S0U65A Networking CX 5420
×




Detailed Specifications

HPE S0U65A – Aruba CX 5420 8‑Port Smart‑Rate (1/2.5/5/10 Gb) Class‑8 PoE Module

Overview

The HPE S0U65A is a high-performance Smart‑Rate line card for the Aruba CX 5420 modular chassis, delivering eight RJ-45 ports capable of 1 Gb, 2.5 Gb, 5 Gb, and 10 Gb speeds, along with Class 8 PoE (up to 90 W per port). It’s built for environments where you need both multi-gig connectivity and very high PoE power — for example, powering modern access points, high-end VoIP phones, or edge compute devices. With its Gen‑7 ASIC architecture and tight integration into the CX 5420 chassis running AOS‑CX, this module gives you full Layer‑3 routing, VSX (high availability), scripting, and automation. According to the platform support matrix, the minimum AOS‑CX version required for this module is 10.15.0001.

Key Features

  • 8 Smart‑Rate ports (1 / 2.5 / 5 / 10 Gb) — for flexible, high-speed multi-gig access.

  • Class 8 PoE (90 W) — supports very high-powered devices through standard RJ‑45.

  • High‑speed switching capacity — supports 80 Gb/s for each slot per chassis spec.

  • Tight chassis integration — runs under AOS‑CX in the CX 5420 modular chassis for full Layer‑3, VSX, and automation support.

Technical Specifications

SpecificationDetail
Brand HPE / Aruba Networking
Part Number S0U65A
Product Type Modular Line Card (Smart‑Rate PoE)
Port Configuration 8 × RJ‑45 Smart‑Rate (1 / 2.5 / 5 / 10 Gb)
PoE Class Class 8 (IEEE 802.3bt)
Max PoE Budget Up to 90 W per port (platform‑dependent)
Switching Capacity (per Slot) 80 Gb/s
Management / OS AOS‑CX via CX 5420 chassis
Minimum Supported AOS‑CX Version 10.15.0001
Supported PoE Standards IEEE 802.3af / at / bt up to Class 8
Operating Temperature 0 °C to 45 °C (matches chassis spec)
