Detailed Specifications

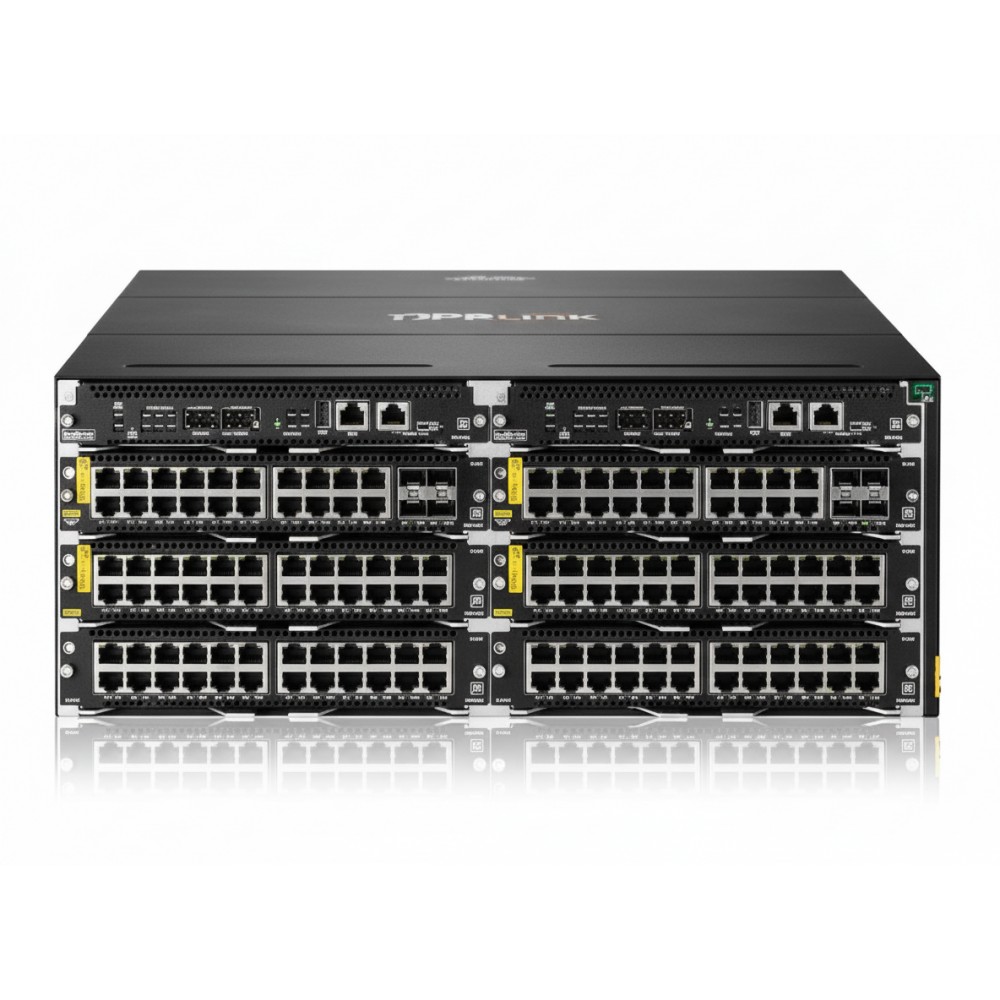

HPE Aruba CX 5420 6 Slot Chassis (S0U60A) - Modular Switch Platform
Overview
HPE Aruba CX 5420 6-slot Chassis (S0U60A) ek modular switch platform hai jo enterprise-grade access ya aggregation layer ke liye design kiya gaya hai. Is chassis mein 6 half-width line-card slots hain, jisse aap alag modules (PoE, uplink, SFP, etc.) deploy kar sakte hain aur network ko scale kar sakte hain. Chassis ki switching capacity 960 Gbps hai, jo har slot pe ~160 Gbps potential provide karti hai. Ye modular architecture VSX redundancy support karta hai, jisse high-availability designs bana sakte hain. AOS-CX OS ke saath, aap modern programmability, automation, aur visibility ka fayda utha sakte hain
Key Features
Six modular slots: Flexible deployment with different line cards.
960 Gbps switching capacity: High-throughput for aggregation or core.
AOS-CX support: Modern OS for automation, telemetry, L3.
VSX Live Upgrade capable: For active-active redundancy and minimal downtime.
Redundant power support: Chassis supports up to 4 hot-swappable power supplies
Front-to-back airflow: Efficient cooling for rack deployment.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE Aruba |
| Part Number | S0U60A |
| Product Type | Modular Chassis Switch |
| Slots | 6 line-card slots |
| Switching Capacity | 960 Gbps (480 Gbps in + 480 Gbps out) |
| Forwarding Rate | 714 Mpps |
| Management Module | Requires separate management module (e.g. S0U55A) |
| Power Supply Support | 4 hot-swappable PSUs supported |
| Operating System | AOS-CX (minimum version 10.15.0001 for this chassis |
| Form Factor | 4U, rack-mountable |
| Cooling | Modular fan tray (front-to-back airflow) |
