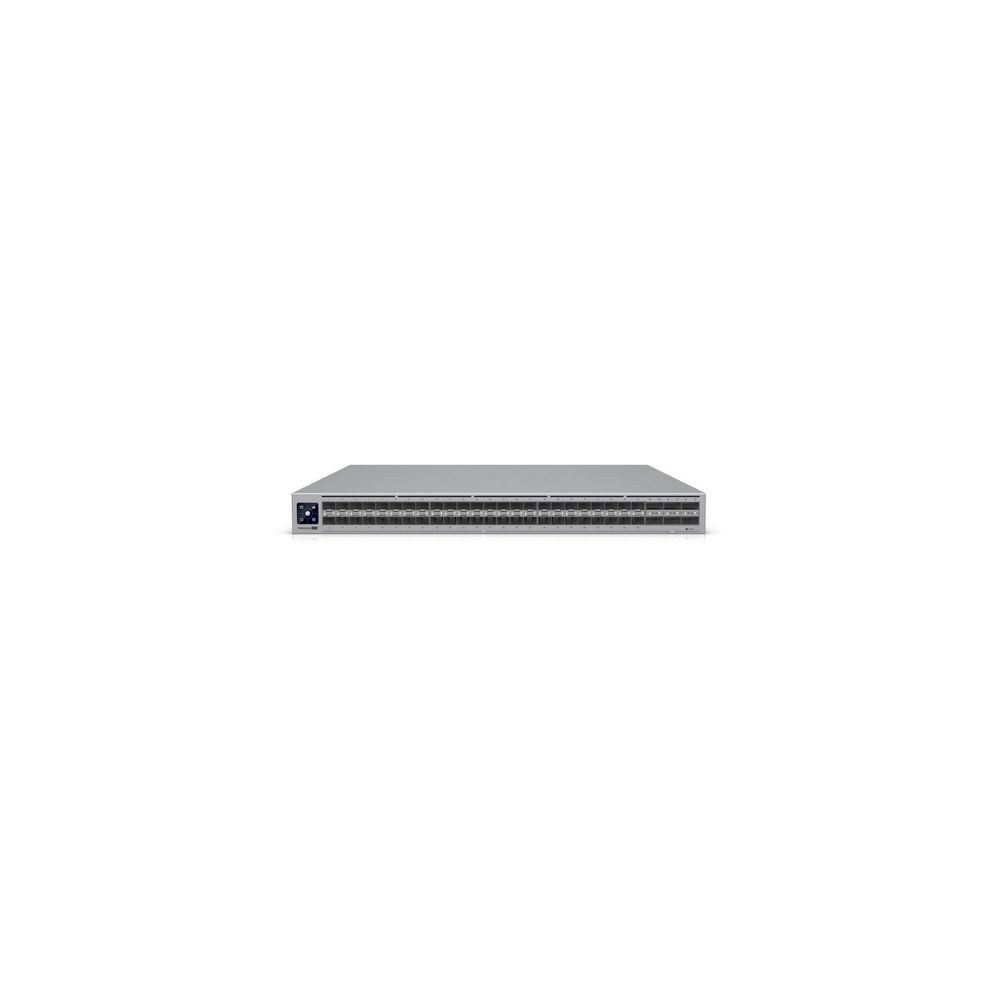

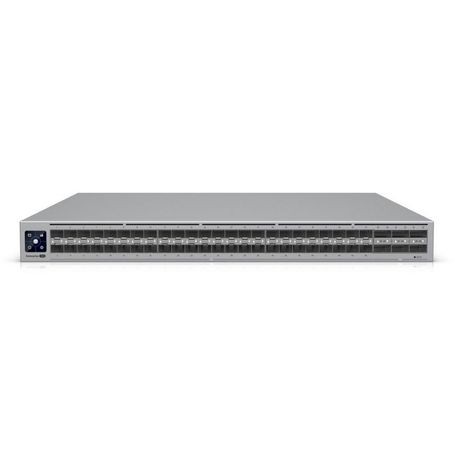

Ubiquiti ECS-Aggregation – Enterprise Campus 48-Port 25G SFP28 100G QSFP28 Switch
Overview
The Ubiquiti ECS-Aggregation is an Enterprise Campus Layer 3 aggregation switch designed for high-capacity enterprise network infrastructure. It provides 48 25G SFP28 ports supporting 25G and 10G connections, plus six 100G QSFP28 ports supporting 100G and 40G connections.
With 3.6 Tbps switching capacity, 1.8 Tbps total non-blocking throughput, and a forwarding rate of 2.4 billion packets per second, ECS-Aggregation is designed to aggregate high-speed access and distribution links in enterprise campus networks and data center environments.
Technical Information
The switch supports Layer 2 and Layer 3 networking, including inter-VLAN routing, static routing, DHCP server and relay functions, LACP port aggregation, and Multi-Chassis Link Aggregation (MC-LAG). Additional capabilities include STP/RSTP, IGMP snooping, VLANs, ACLs, port isolation, port mirroring, jumbo frames, and DHCP snooping.
Etherlighting™ provides visual port identification on supported SFP28 and QSFP28 interfaces. The 1U, full-depth rackmount chassis includes a 1.3-inch touchscreen, five hot-swappable fan modules, and two hot-swappable 550W AC/DC power modules.
Compatibility
ECS-Aggregation uses SFP28 and QSFP28 interfaces for supported optical transceivers, direct-attach cables, and compatible network connections. Confirm the supported speed, transceiver type, cable specification, and link distance for each connection before deployment.
The switch is managed through UniFi Network and requires UniFi Network version 8.5.6 or later according to the manufacturer’s published technical specifications. Its four-post rack installation supports rack post depths from 650 to 1,000 mm.
Key Features
- 48 × 25G SFP28 ports supporting 25G and 10G
- 6 × 100G QSFP28 ports supporting 100G and 40G
- 3.6 Tbps switching capacity and 1.8 Tbps non-blocking throughput
- Layer 3 routing, MC-LAG, and LACP aggregation support
- Dual hot-swappable 550W power modules and five hot-swappable fans
Applications
- Enterprise campus network aggregation
- High-speed distribution and backbone connectivity
- Data center network aggregation using 25G and 100G links
- Redundant network designs using MC-LAG and dual power modules
- High-capacity Layer 3 network segmentation and inter-VLAN routing
DC Supplies Product Note
Plan rack depth, airflow, power feeds, and optical link requirements before installation. The switch supports 100–240V AC input through two hot-swappable power modules; confirm that the selected optics and cabling match the required link speeds and distances.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | ECS-AGGREGATION |
|---|
| Product Type | Enterprise Campus Layer 3 Aggregation Switch |
|---|
| SFP28 Ports | 48 × 25G/10G |
|---|
| QSFP28 Ports | 6 × 100G/40G |
|---|
| Switching Capacity | 3.6 Tbps |
|---|
| Total Non-Blocking Throughput | 1.8 Tbps |
|---|
| Forwarding Rate | 2.4 Bpps |
|---|
| Supported VLANs | 1,000 |
|---|
| MAC Address Table | 128,000 entries |
|---|
| IPv4 Static Routes | 256 |
|---|
| Packet Buffer | 24 MB |
|---|
| Access Control Lists | 512 IPv4 ACLs; 512 MAC ACLs |
|---|
| Layer 3 Features | DHCP server, DHCP relay, inter-VLAN routing, static routing |
|---|
| Aggregation Features | LACP, MC-LAG |
|---|
| Redundancy | 2 hot-swappable power supplies; 5 hot-swappable fans |
|---|
| Power Supply | 2 × 550W hot-swappable AC/DC modules |
|---|
| Power Input | 100–240V AC, 50/60 Hz |
|---|
| Maximum Power Consumption | 340W |
|---|
| Heat Dissipation | 1,160 BTU/hr |
|---|
| Form Factor | 1U, full-depth rackmount |
|---|
| Dimensions | 442.4 × 43.7 × 496 mm |
|---|
| Weight | 9.9 kg without mounting brackets; 10 kg with brackets |
|---|
| Enclosure Material | SGCC steel |
|---|
| Supported Rack | 19-inch four-post rack; 650–1,000 mm post depth |
|---|
| Display | 1.3-inch touchscreen |
|---|
| Operating Temperature | -5 to 40°C |
|---|
| Operating Humidity | 10–95% noncondensing |
|---|
| ESD Protection | Air: ±12 kV; contact: ±8 kV |
|---|
| Management Software | UniFi Network 8.5.6 or later |
|---|
| Compliance | NDAA compliant |
|---|
| Certifications | CE, FCC, IC |
|---|
FAQs
How many high-speed ports does ECS-Aggregation provide?
It has 48 SFP28 ports supporting 25G and 10G, plus six QSFP28 ports supporting 100G and 40G.
Does ECS-Aggregation support Layer 3 routing?
Yes. Supported functions include static routing, inter-VLAN routing, DHCP server, and DHCP relay.
Does the switch support MC-LAG?
Yes. Multi-Chassis Link Aggregation is supported alongside LACP port aggregation.
What power inputs does ECS-Aggregation use?
It uses two hot-swappable AC/DC power modules and supports 100–240V AC input at 50/60 Hz.
What rack depth is required?
The switch supports 19-inch four-post racks with post depths from 650 to 1,000 mm. Check the cabinet’s usable depth and cable clearance before installation.
