Detailed Specifications
Overview

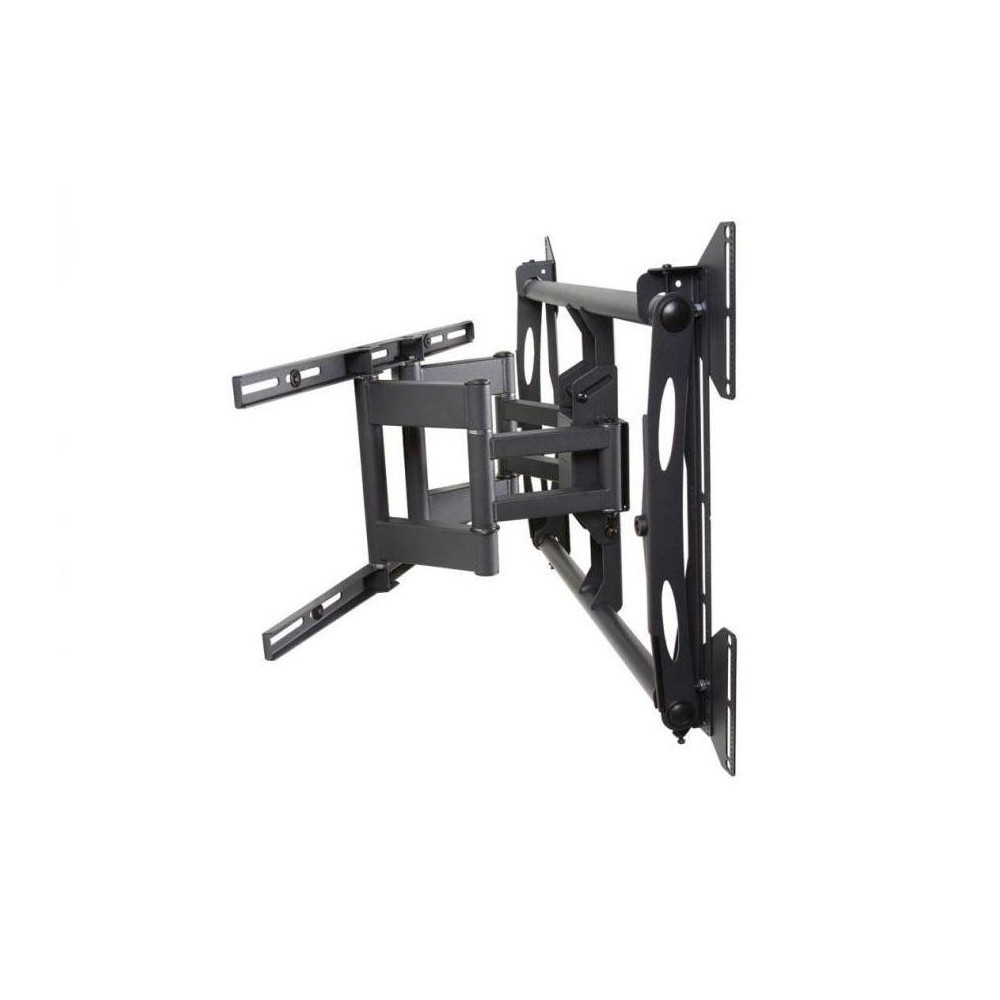

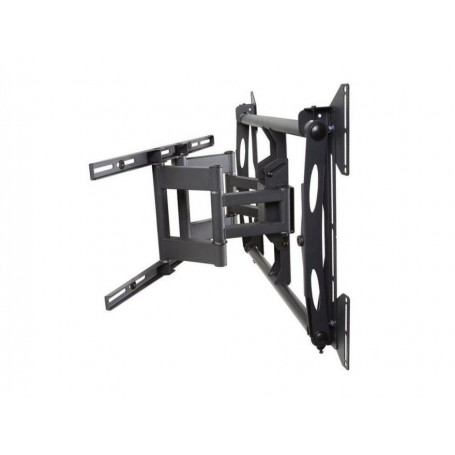

The Premier Mounts AM175 Swingout Mount is a heavy-duty articulating wall mount designed for compatible flat-panel displays weighing up to 175 lbs. Its scissor-style arm extends the display away from the wall for easier viewing and access, while swivel and tilt adjustments help position the screen for different room layouts. The mount also features post-installation leveling adjustments and patented Griplates to help secure the display mounting brackets.
Key Features
- Supports flat-panel displays weighing up to 175 lbs
- Up to 45° swivel in either direction
- 10° continuous tilt adjustment
- Extends approximately 15.9 inches from the wall
- Post-installation leveling for fine adjustment
- Griplate system helps secure the display brackets
- Includes extension adapters for a range of mounting patterns
- Black finish for professional AV installations
Technical Specifications
| Specification | Details |
|---|
| Brand | Premier Mounts |
| Part Number / MPN | AM175 |
| Product Type | Swingout Articulating Display Wall Mount |
| Color | Black |
| Maximum Display Weight | 175 lbs (79.5 kg) |
| Mounting Pattern Range | 200 × 200 mm to 650 × 820 mm |
| Swivel | Up to 45° |
| Tilt | 10° |
| Maximum Extension | 15.9 in (403.9 mm) |
| Product Width | 30.19 in |
| Product Height | 22.23 in |
| Product Depth | 3.11–15.9 in, depending on extension |
| Product Weight | Approximately 41 lbs |
| Warranty | Lifetime manufacturer warranty, subject to applicable terms |
Applications
- Conference and meeting rooms
- Classrooms and training facilities
- Corporate offices and presentation spaces
- Healthcare and institutional environments
- Professional audiovisual installations
Installation and Compatibility
Confirm the display's weight and VESA mounting pattern before installation. The wall structure and fasteners must be suitable for the combined load and installed according to the manufacturer's instructions. Installation by a qualified technician is recommended. The mount can be combined with compatible Premier Mounts in-wall accessories for supported flush-style installations.
Frequently Asked Questions
1. What is the maximum supported display weight?
The AM175 supports displays weighing up to 175 lbs (79.5 kg).
2. Does the mount swivel?
Yes. It provides up to 45° of swivel in either direction.
3. How far does it extend from the wall?
The articulating arm extends up to approximately 15.9 inches from the wall.
4. Is tilt adjustment available?
Yes. The mount offers 10° of tilt adjustment.
5. Which mounting patterns are supported?
The published mounting-pattern range is 200 × 200 mm to 650 × 820 mm. Check the display's exact hole pattern before purchasing.
6. Is installation hardware included?
The manufacturer's specification sheet lists the swingout arm, left and right brackets, hardware pack, and extension brackets. Confirm the package contents with the seller before ordering.
DC Supplies Product Note
DC Supplies recommends checking the display's weight, mounting pattern, and wall structure before ordering. Contact our team if you need assistance confirming compatibility with your display.
