Detailed Specifications

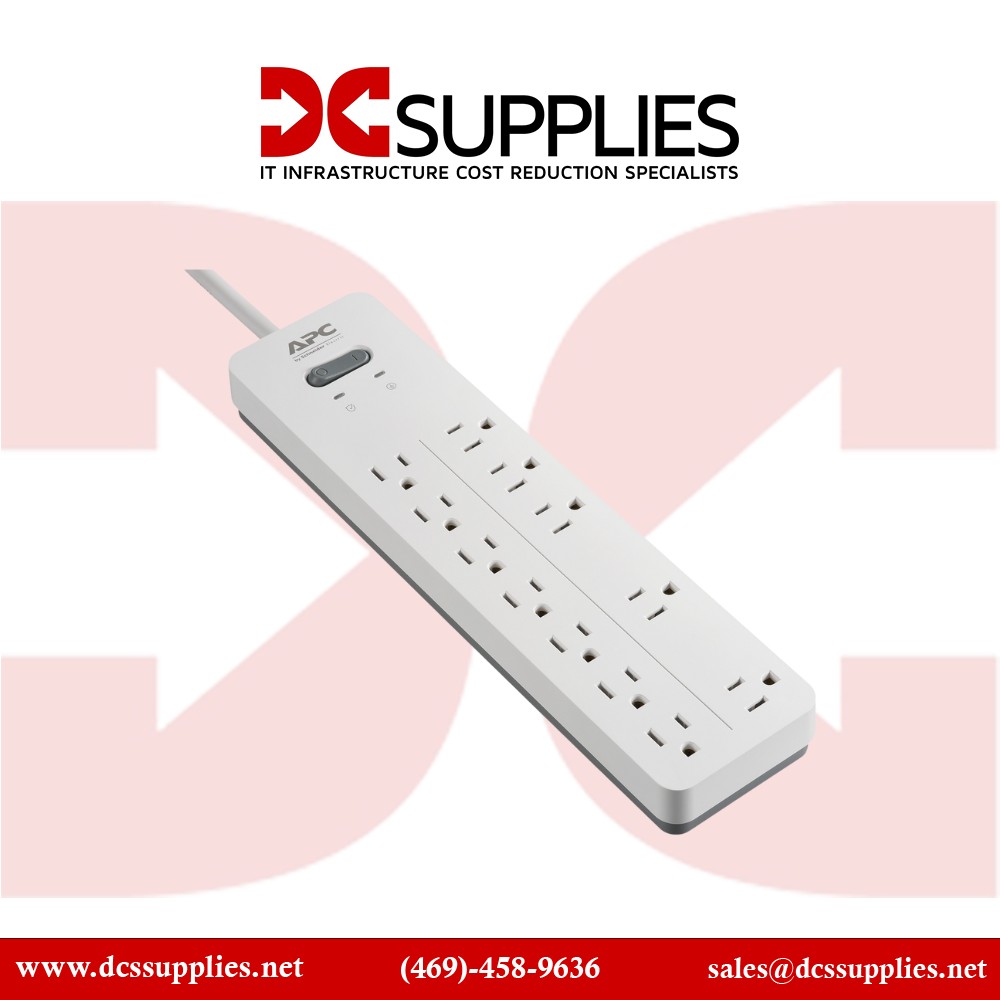

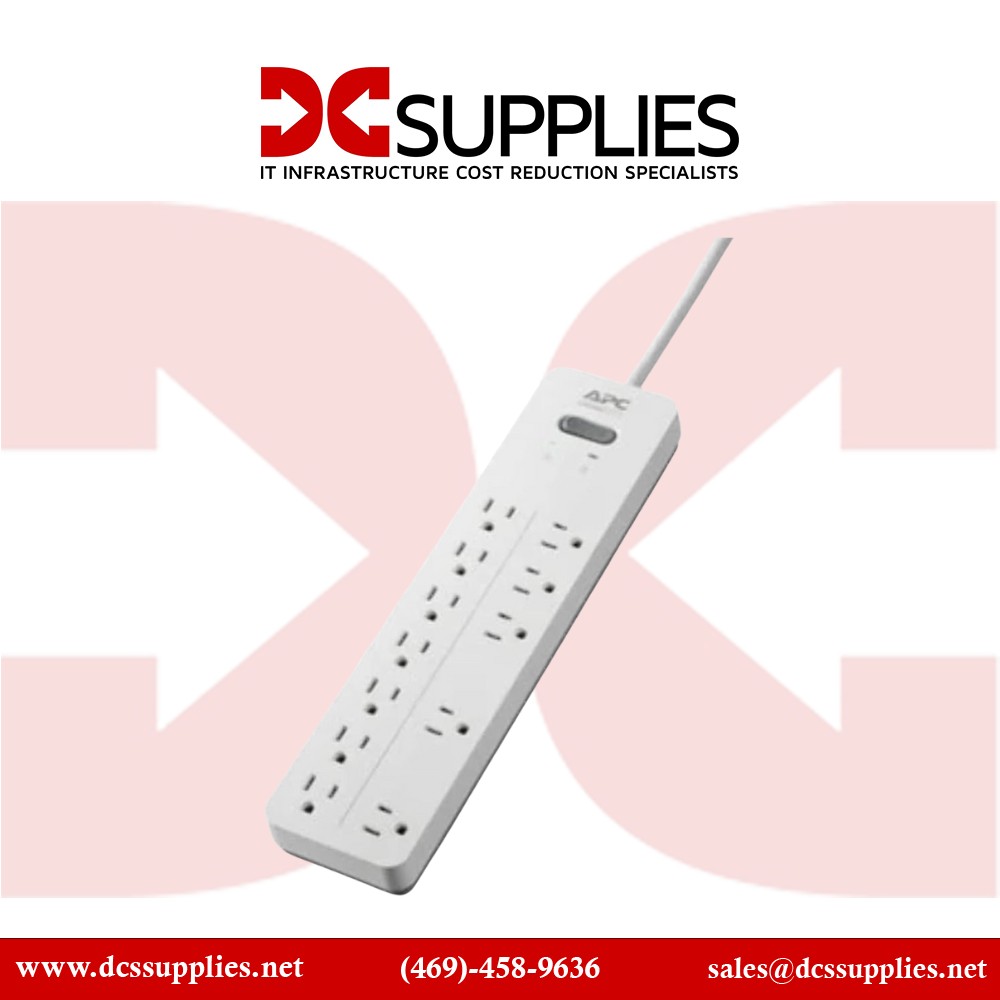

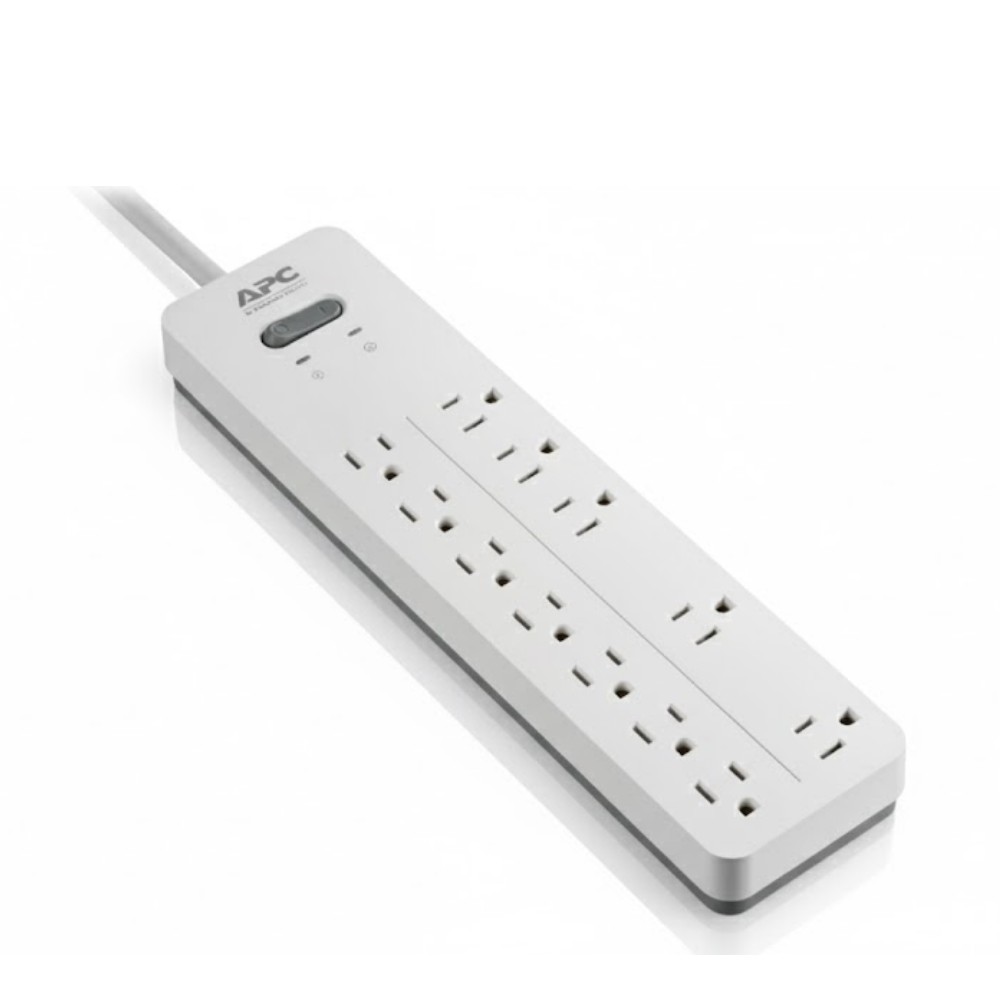

APC PH12W - SurgeArrest 12-Outlet Surge Protector
Overview :
This is a 12-outlet surge protection strip used by IT professionals to protect server racks, workstations, and network gear from voltage spikes and transients. It supports 120 V AC input at up to 15 A, with a surge energy rating of 2160 J. The unit is intended for use in offices, branches, and edge environments rather than full data center trunks. It integrates status LEDs and built-in EMI/RFI noise filtering for easier diagnostics and cleaner power delivery.
Key Features :
Supports 2160 J surge energy capacity
12 × NEMA 5-15R outlets (2 transformer-spaced)
Right-angle NEMA 5-15P input plug, 6 ft cable
Fail-safe mode cuts power after internal damage
Specifications :
| Specification | Value |
|---|
| Brand | APC (by Schneider Electric) |
| Part Number | PH12W |
| Product Type | Surge Protector / Power Strip |
| Input Voltage | 120 V AC |
| Input Frequency | 50 / 60 Hz |
| Maximum Input Current | 15 A |
| Number of Outlets | 12 |
| Outlet Type | NEMA 5-15R |
| Surge Energy Rating | 2160 J |
| Response Time | 1 ns (nominal) |
| Cable Length | 6 ft (1.83 m) |
| Dimensions (H × W × D) | 1.18″ × 3.03″ × 12.09″ (30 × 77 × 307 mm) |
| Operating Temperature | 0 °C to 40 °C |
| Certification / Standards | MET USA / MET Canada, UL 1363, UL 1449 |
