Detailed Specifications
APC NET9RMBLK Black Rackmount Performance SurgeArrest 9 Outlet 120V
Overview :
Keep your server rack surge-safe with the black, 120V 9-Outlet SurgeArrest Rackmount Surge Protector from APC. Featuring a NEMA 5-15P input connection, this surge protector provides nine NEMA 5-15R outlets. Two block-sized receptacles provide room for transformers. Compatible with a 120V 50/60 Hz power input, the APC SurgeArrest provides 120V at 15A. Connected equipment is protected by a 2770-joule surge energy rating and a peak current of up to 40,000A.

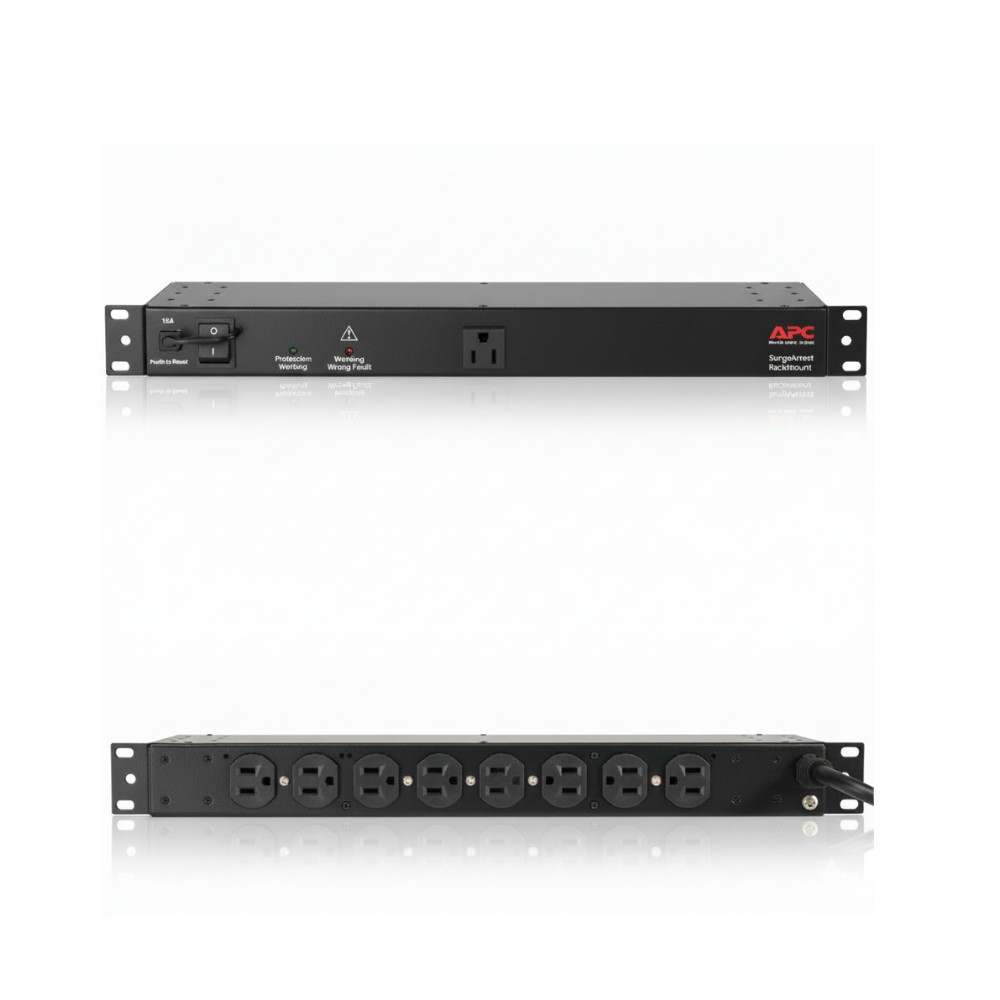

Using a 1 RU form factor, this SurgeArrest is designed for easy installation in a server rack. A circuit breaker switch on the front panel sits next to an on/off power switch, which controls the eight rear outlets. The ninth outlet, a front convenience outlet, is not connected to this on/off switch. A ground screw is present on the rear panel and included cord management rails can be installed to prevent undue strain on outlets while keeping power cables organized. Alongside the cord management rails, the APC 9-Outlet SurgeArrest comes with mounting brackets and plug pull protectors.
- 9 x NEMA 5-15R Outlets
- 1 x NEMA 5-15P Input Connection
- 15A Maximum Line Current
- 120V Input Voltage
Specifications :
Lead time |
Usually in Stock |
Main
Main Input Voltage |
120 V |
Input Connection Type |
NEMA 5-15P |
Cable length |
15 ft (4.57 m) |
Number of cables |
1 |
Provided equipment |
Cord management rails Plug pull protectors Rack Mounting brackets User Manual |
Physical
Color |
Black |
Height |
1.73 in (4.4 cm) |
Width |
19.02 in (48.3 cm) |
Depth |
5.75 in (14.6 cm) |
Net Weight |
4.81 lb(US) (2.18 kg) |
Mounting preference |
No preference |
Mounting Mode |
Not rack-mountable |
Input
Maximum Line Current per phase |
15 A |
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
Maximum Input Current per Phase |
15 A |
Switching current capacity |
15 A |
Output
Number of power socket outlets |
9 |
Outlet standard |
NEMA 5-15R |
Conformance
UL 1449 TVSS Rating |
330 |
Product Certifications |
CSA UL Listed |
Standards |
UL 1283 UL 1449 |
Equipment protection policy |
Lifetime : $25000 |
Environmental
Ambient air temperature for operation |
32…104 °F (0…40 °C) |
Relative Humidity |
0…95 % |
Operating altitude |
0...10000 ft |
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
Storage Relative Humidity |
0…95 % |
Storage altitude |
0…50000 ft (0.00…15240.00 m) |
Surge Protection and Filtering
NM Surge Response Time (ns) |
0 ns common mode |
EMI/RFI Noise rejection (100 kHz to 10 MHz) |
90 dB |
Peak current |
40 kAcommon mode 26 kAnormal mode |
Surge energy rating |
2770 J |
