Detailed Specifications
APC PE6U4 - SurgeArrest Essential 6-Outlet Surge Protector (1080 J)
Overview :
The APC PE6U4 is a surge protector used by IT technicians and infrastructure teams to shield electronics and small IT gear from transient voltage spikes. It addresses the need for basic surge suppression on standard 120 V power systems by combining multiple outlets with integrated USB charging ports.
This unit provides 1080 joules of surge energy absorption and features six NEMA 5-15R outlets plus four USB Type-A charging ports. Its fail-safe design disconnects connected equipment if the surge suppression components are compromised, preventing subsequent surges from reaching sensitive loads.

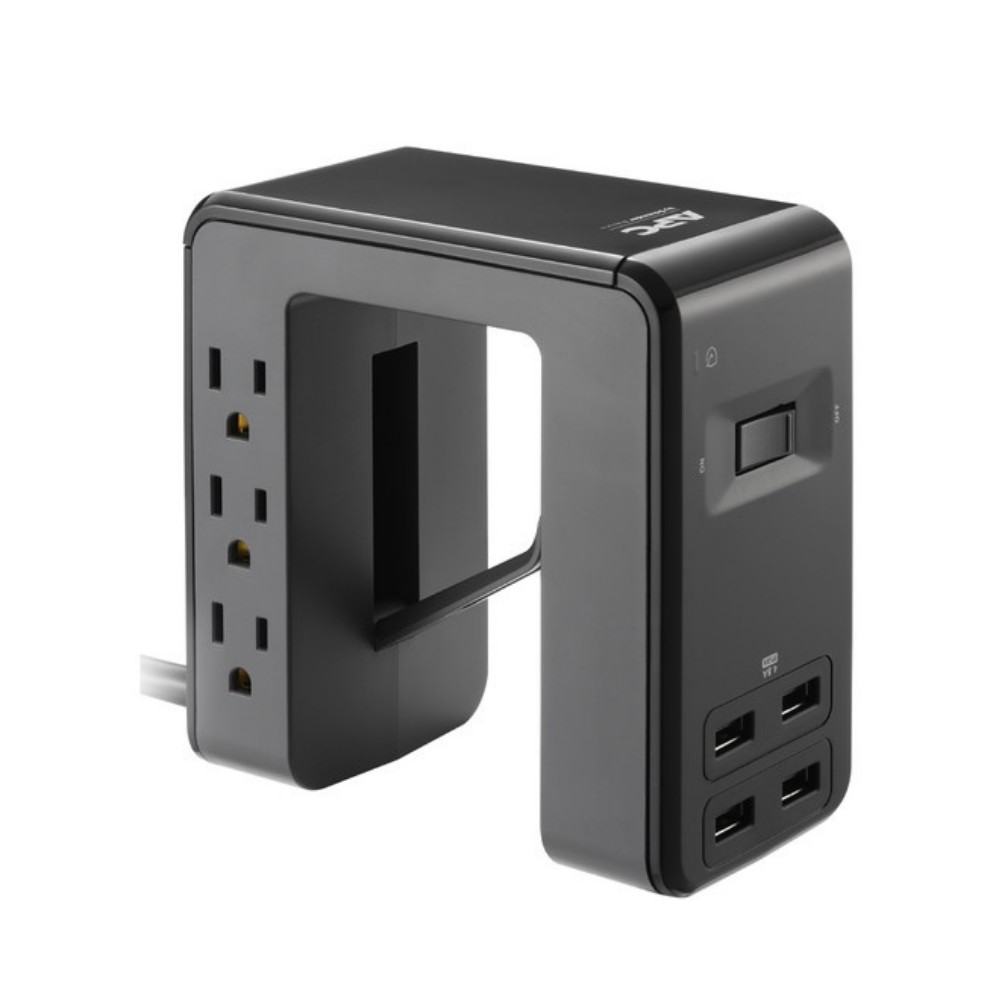

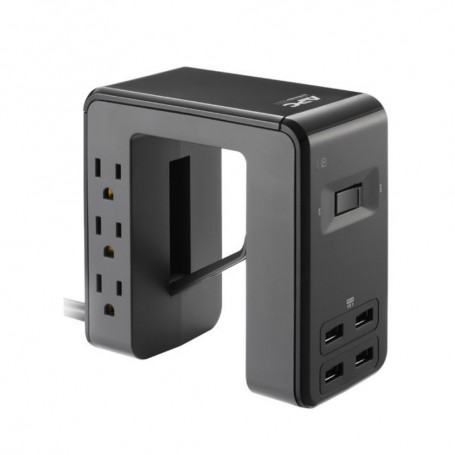

Physically, PE6U4 is a compact, desk-mountable power strip with a 6 ft cord and a standard NEMA 5-15P plug, suitable for general workstations, network closets, or non-critical electronics enclosures where localized surge protection is required.
Integrated EMI/RFI noise filtering helps reduce interference that can affect connected devices, and an on/off switch plus LED indicator provide basic operational feedback.
In practical deployments, PE6U4 is ideal for workbench power distribution and peripheral protection where rack-mounted PDUs or UPS systems are not used; it should not be used as primary protection for mission-critical server infrastructure.
Key Features :
• 1080 J surge suppression for standard 120 V circuits
• Six NEMA 5-15R outlets for local device power
• Four USB-A charging ports with 4.8 A shared output
• 6 ft power cord with NEMA 5-15P plug
• EMI/RFI filtering with fail-safe disconnect circuitry
Specifications :
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | PE6U4 |
| Product Type | Surge Protector / SurgeArrest |
| Input Voltage | 120 VAC, 50/60 Hz |
| Maximum Current | 15 A |
| Surge Energy Rating | 1080 J |
| Outlets | 6 × NEMA 5-15R |
| USB Charging Ports | 4 × USB-A (4.8 A total) |
| Input Plug | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Response Time | ~1 ns |
| EMI/RFI Filtering | Up to ~40 dB |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 0 % to 95 % |
| Dimensions (H×W×D) | 5.31″×2.72″×5.20″ (135×69×132 mm) |
| Net Weight | ~1.52 lb (0.69 kg) |
| Certifications | UL 1449, UL 1363, cULus, FCC Part 15 Class B |
