Detailed Specifications

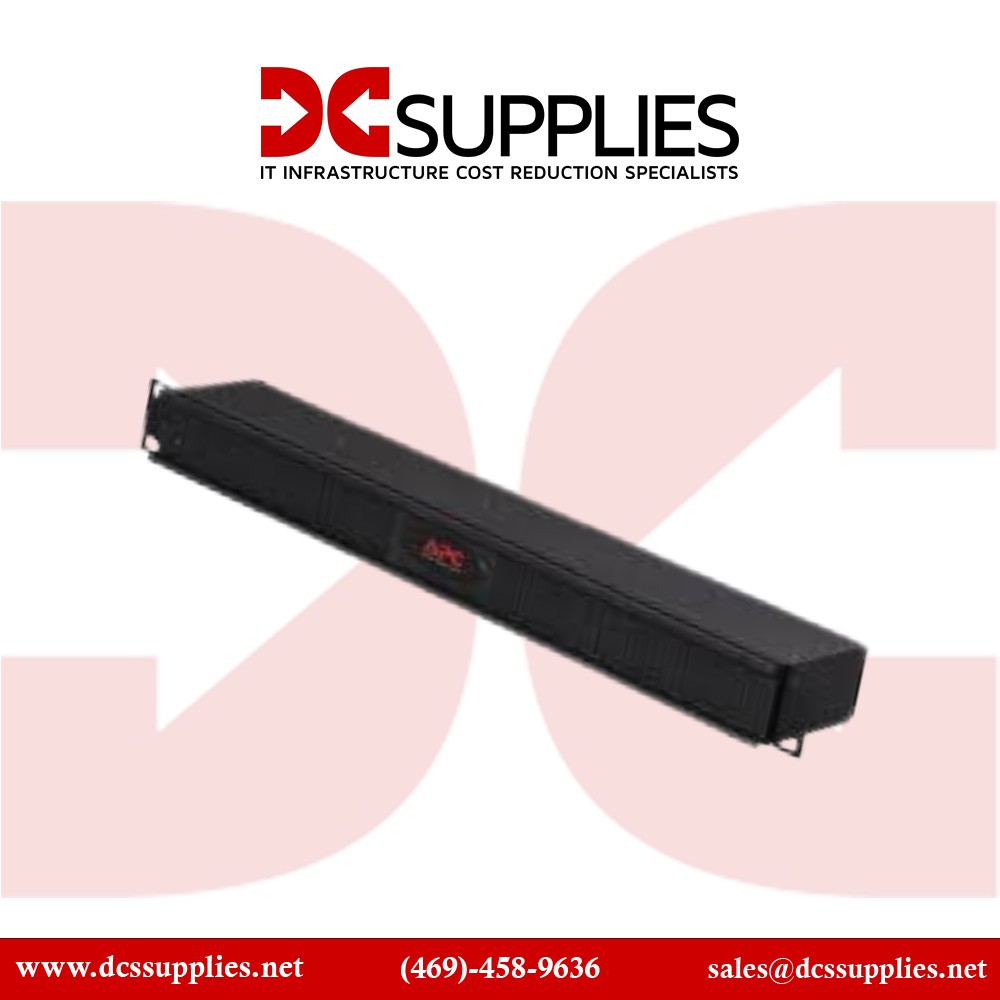

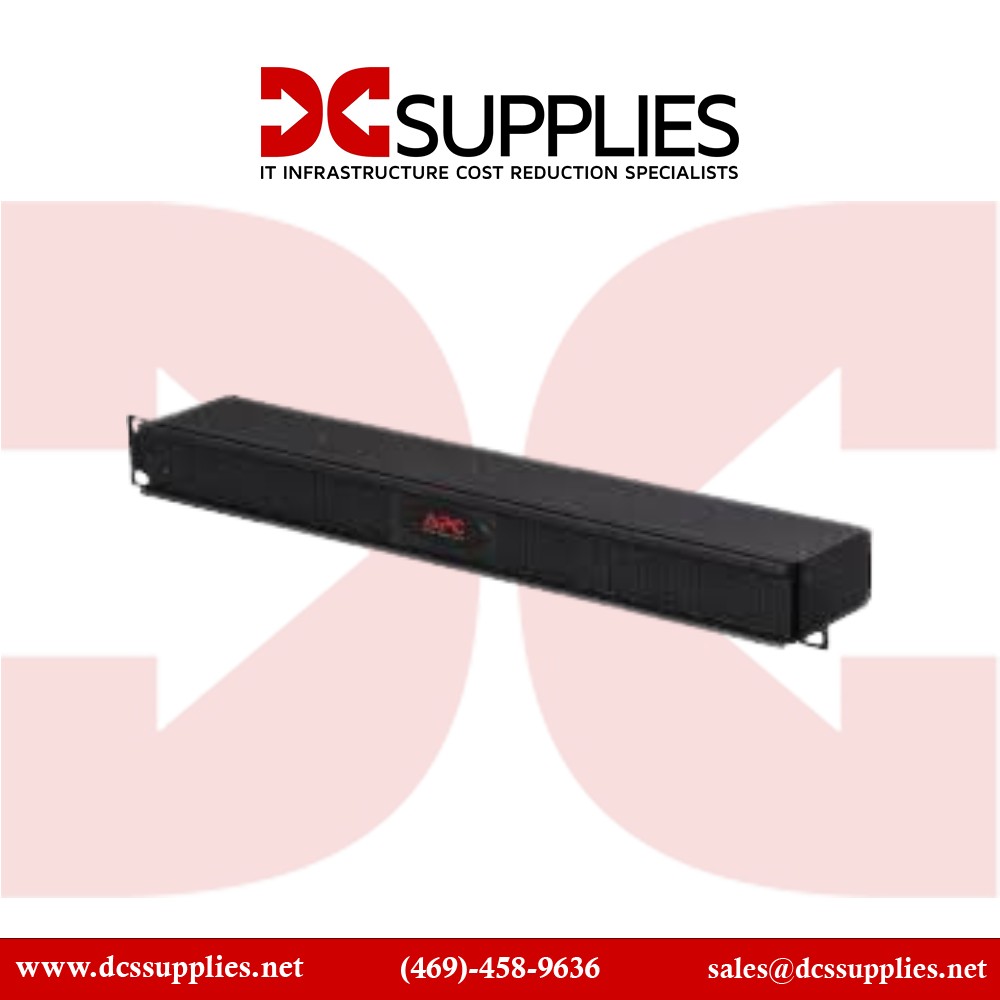

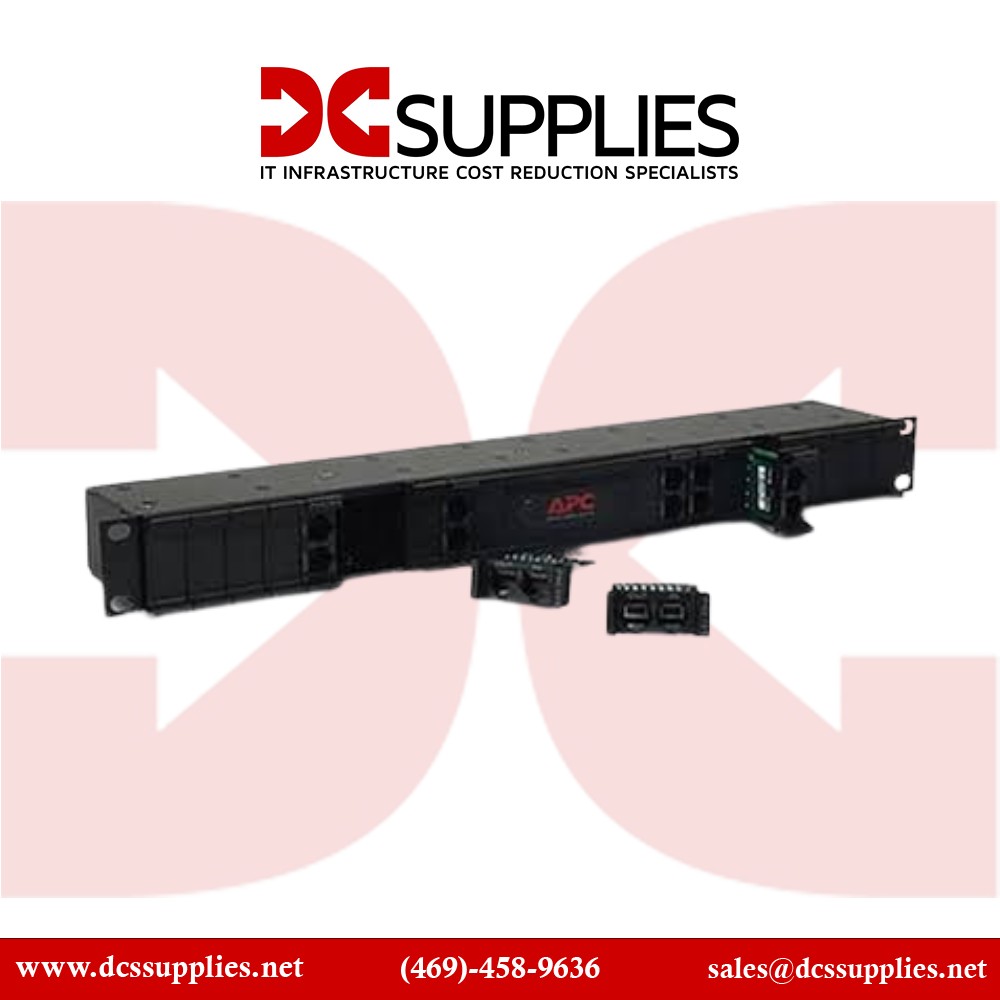

APC PRM24 - 24-Position Surge Protection Chassis
Overview :
The APC PRM24 is a 1U rackmount chassis designed to house up to 24 replaceable surge protection modules for data lines. It is suitable for environments requiring modular surge protection for Ethernet, coaxial, and telephone lines. The chassis provides a centralized solution for managing multiple surge protection modules in a single 19-inch rackmountable unit. It is ideal for deployment in server rooms, data centers, and network closets where space optimization and modularity are essential.
Key Features :
Houses up to 24 surge protection modules
1U rackmount design for space efficiency
Supports Ethernet, coaxial, and telephone line protection
RoHS compliant for environmental safety
Specifications :
| Specification | Details |
|---|
| Brand | APC by Schneider Electric |
| Part Number | PRM24 |
| Product Type | Surge Protection Chassis |
| Rackmount Form Factor | 19" (1U) |
| Number of Slots | 24 |
| Supported Modules | Replaceable surge protection |
| Data Line Protection Types | Ethernet, Coaxial, Telephone |
| Dimensions (WxDxH) | 18.9" x 3.5" x 1.7" |
| Weight | 2.7 lbs (1.22 kg) |
| Operating Temperature Range | 5°C to 45°C (41°F to 113°F) |
| Storage Temperature Range | -15°C to 45°C (5°F to 113°F) |
| Relative Humidity | 0% to 95% (non-condensing) |
| Color | Black |
| Compliance | RoHS Compliant |
