Detailed Specifications

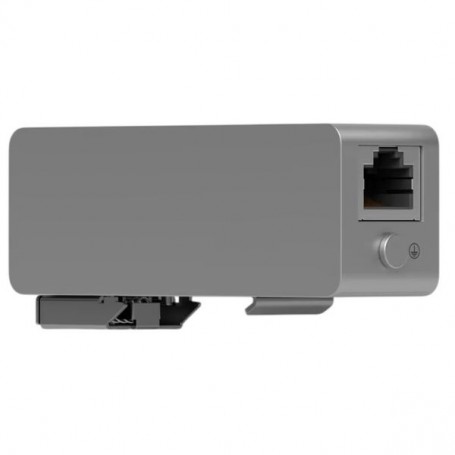

Ubiquiti UACC-ETH-SP-DIN Single Port Ethernet Surge Protector
Overview
The Ubiquiti UACC-ETH-SP-DIN is a single-port Ethernet surge protection device designed to protect network equipment from voltage spikes, transient surges, and electrostatic discharge events on copper Ethernet links. It provides bidirectional surge suppression while maintaining full 10 Gbps data throughput and PoE++ compatibility, making it suitable for protecting PoE-powered devices such as access points, cameras, and switches. The compact unit mounts to a wall or DIN rail in network closets, telecom rooms, and industrial control panels. It is constructed with durable polycarbonate and SGCC steel and operates over a wide temperature and humidity range.
Key Features
• Single-port bidirectional RJ45 surge protection
• Supports up to 10 Gbps Ethernet data rates
• PoE++ support on protected link
• 20 kA surge discharge capacity per port
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | UACC-ETH-SP-DIN |
| Product Type | Single-Port Ethernet surge protector |
| Ethernet Interfaces | (2) RJ45 female (in/out) |
| Data Rate Support | Up to 10 Gbps |
| PoE Support | Yes; PoE++ compatible |
| DC Spark-Over Voltage | 90 V @ 100 V/s |
| Max. Impulse Spark-Over Voltage | 600 V @ 1 kV/µs |
| Surge Discharge Current | 20 kA |
| Insulation Resistance | Up to 1 G Ω @ 50 V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Enclosure Material | Polycarbonate, SGCC steel |
| Mounting | Wall or DIN rail |
| Dimensions (W×D×H) | 25.5 × 89 × 37.4 mm |
| Weight | 74 g |
| Operating Temp | -40 °C to +80 °C |
| Operating Humidity | 10-90 % non-condensing |
