Detailed Specifications

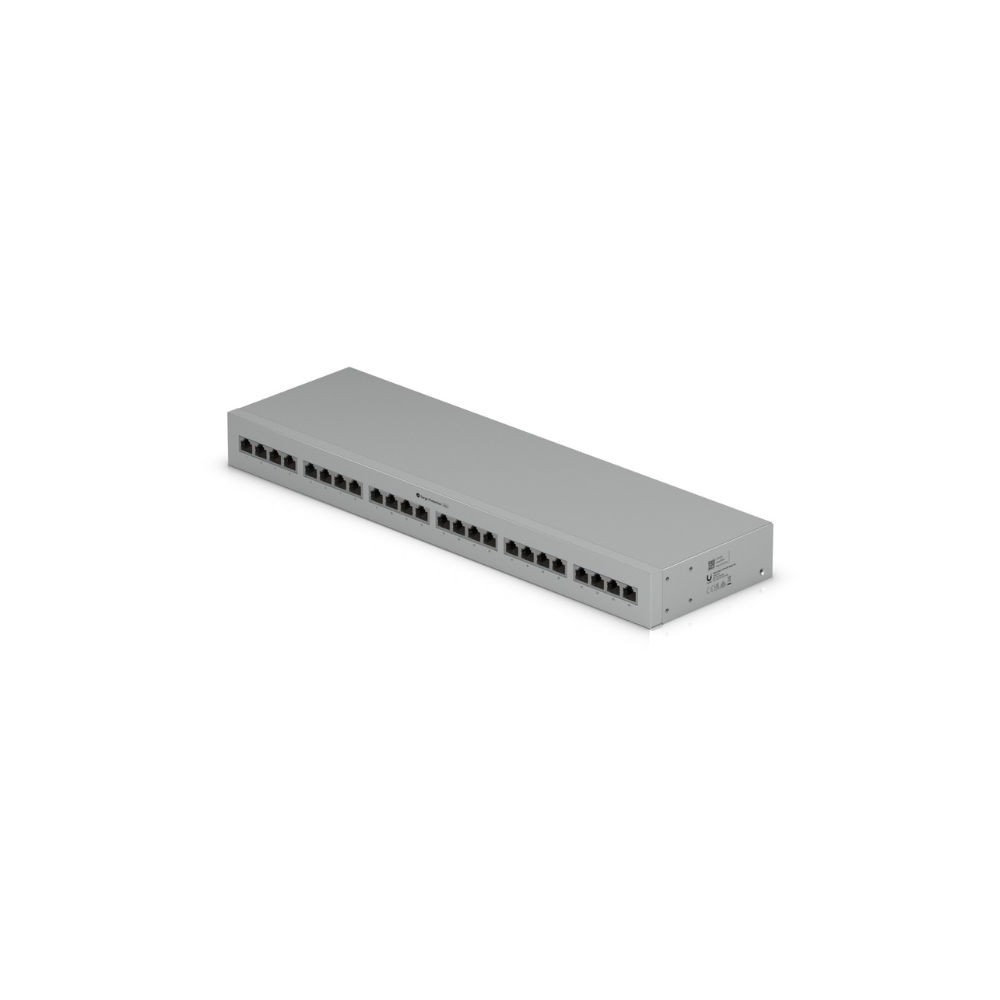

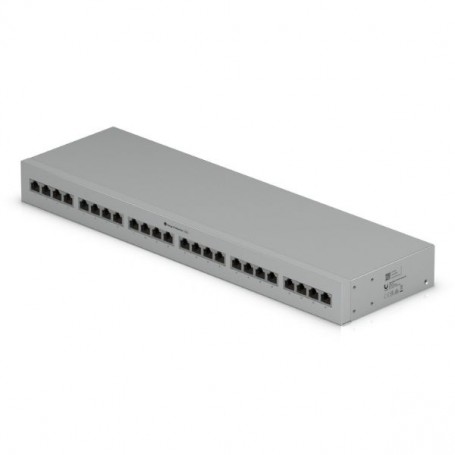

Ubiquiti UACC-ETH-SP-PANEL-24 24 Port Ethernet Surge Protector
Overview
The Ubiquiti UACC-ETH-SP-PANEL-24 is a rack-mount surge protection panel designed to safeguard Ethernet network links and PoE-powered devices from transient voltage spikes and electrical surges. It provides surge and ESD/EMP protection for 24 individual Ethernet connections while maintaining full 10 Gbps data throughput and PoE++ support. The 1U SGCC steel-constructed panel integrates into standard 19″ racks and is suitable for network closets, data rooms, and enterprise installations requiring centralized surge defense. Operating over a wide temperature and humidity range, it offers robust line protection with high discharge current capability per port.
Key Features
• 24× surge-protected RJ45 connections
• 10 GbE throughput per port
• PoE++ (60 W) support on all ports
• 20 kA per-port surge discharge capacity
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | UACC-ETH-SP-PANEL-24 |
| Product Type | Ethernet surge protection panel |
| Ports | 24 RJ45 in/out (48 connectors) |
| Data Rate | Up to 10 Gbps |
| PoE Support | Yes; PoE++ (60 W per port, 802.3bt Type 3) |
| Surge Discharge Current | 20 kA per port |
| DC Spark-Over Voltage | 90 V @ 100 V/s |
| Impulse Spark-Over Voltage | 600 V @ 1 kV/µs |
| Insulation Resistance | Max 1 G Ω @ 50 V |
| Max Capacitance | 1.0 pF @ 1 MHz |
| Mounting | 1U rack mount |
| Enclosure Material | SGCC steel |
| Dimensions (W×D×H) | 442.4 × 134 × 43.7 mm |
| Weight | 2 kg |
| Operating Temp | -40 °C to +80 °C |
| Operating Humidity | 10 - 90 % non-condensing |
