Overview

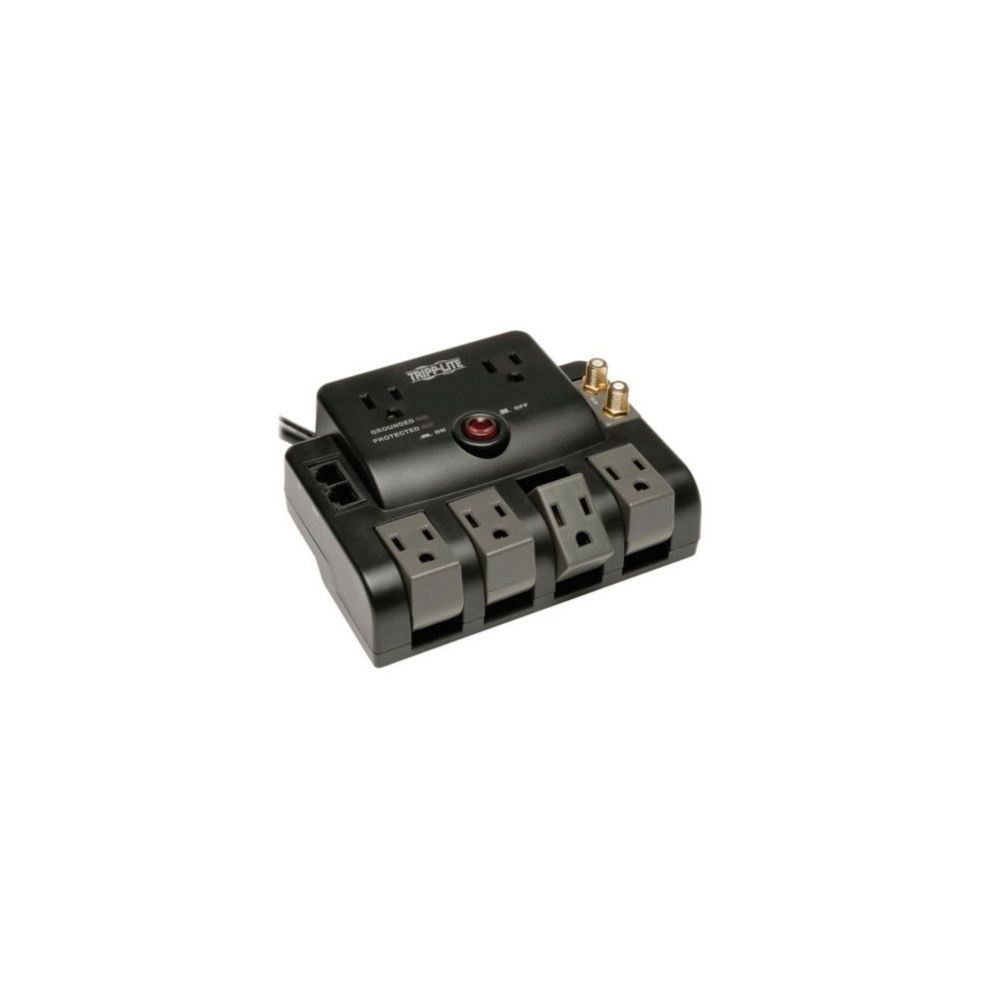

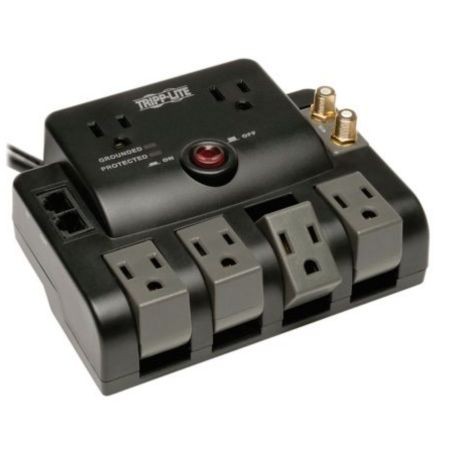

The Tripp Lite TLP606RNET Protect It! is a six-outlet surge protector designed to protect home, office, workstation and A/V equipment from AC power surges, spikes and line noise. It combines 1440-joule surge suppression with rotating AC outlets and protection for connected telephone, Ethernet and coaxial signal lines.
AC Surge Protection
The TLP606RNET provides 1440 joules of AC surge suppression with protection across hot-neutral and common-mode neutral-ground and hot-ground connections. Its suppression response time is less than 1 nanosecond. A 15A resettable circuit breaker provides overload protection, while automatic shutoff disconnects the protected outlets if the surge-protection circuitry becomes incapacitated.
Rotating Outlets and Power Connection
Six NEMA 5-15R AC outlets are provided, with four rotating receptacles and two fixed outlets. The rotating design helps accommodate plugs and power adapters in different orientations, while two outlets are spaced to accommodate bulky transformer-style plugs. The unit connects to a standard 120V AC receptacle through a 6-foot cord with a right-angle NEMA 5-15P plug.
Network, Telephone and Coax Protection
In addition to AC protection, the TLP606RNET provides one line of telephone/DSL protection and one line of surge-protected coaxial protection. The coax protection supports cable, satellite and antenna connections with up to 2.2 GHz bandwidth. Ethernet protection supports Fast Ethernet connections up to 100 Mbps. The package includes the corresponding 6-foot coaxial, telephone and Ethernet cables.
Filtering and Diagnostics
Integrated EMI/RFI filtering helps reduce disruptive electrical line noise. Two diagnostic LEDs indicate protected and grounded status, allowing the operating condition of the surge protector to be checked at a glance.
Key Features
- Six NEMA 5-15R AC outlets with four rotating receptacles
- 1440-joule surge suppression with less-than-1-nanosecond response
- Telephone/DSL, Fast Ethernet and coaxial surge protection
- 15A resettable circuit breaker and automatic shutoff
- Protected and grounded diagnostic LEDs with EMI/RFI filtering
Applications
The TLP606RNET is suited to computer workstations, networking equipment, home-office electronics and A/V installations where AC equipment and associated communication or entertainment cables require coordinated surge protection. It can also be mounted to a suitable wall or flat surface using its rear mounting slots.
DC Supplies Product Note
The TLP606RNET protects several connection types, but its Ethernet protection is specified for 100 Mbps Fast Ethernet. For network equipment operating at higher Ethernet speeds, verify the required protection and link specifications before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number / MPN | TLP606RNET |
| Product Type | Surge Protector |
| Series | Protect It! |
| AC Outlets | 6 × NEMA 5-15R |
| Outlet Configuration | 2 fixed, 4 rotating |
| Input Plug | NEMA 5-15P, right-angle |
| Input Voltage | 120 VAC |
| Maximum Current | 15A |
| Frequency | 60 Hz |
| Surge Energy Rating | 1440 joules |
| Surge Response Time | < 1 ns |
| Protection Modes | H-N, N-G and H-G |
| UL 1449 Let-Through Rating | 400V / 500V / 500V |
| Telephone/DSL Protection | 1 line |
| Ethernet Protection | 1 line, up to 100 Mbps Fast Ethernet |
| Coaxial Protection | 1 line, up to 2.2 GHz |
| Power Cord Length | 6 ft (1.83 m) |
| Power Cord | 14 AWG SJT |
| EMI/RFI Filtering | Yes |
| Circuit Breaker | 15A resettable |
| Diagnostic Indicators | Protected and grounded LEDs |
| Automatic Shutoff | Yes |
| Housing Material | Plastic |
| Housing Color | Black |
| Mounting | Rear mounting slots |
| Compliance | UL 1449, UL 497A, cUL, CSA, NOM, RoHS |
FAQs
How many AC outlets does the TLP606RNET have?
The TLP606RNET provides six NEMA 5-15R AC outlets. Four outlets rotate, while two remain fixed.
How much surge protection does it provide?
The unit provides 1440 joules of AC surge suppression with a response time of less than 1 nanosecond.
Does it protect Ethernet and telephone connections?
Yes. It provides one line of telephone/DSL protection and one line of Ethernet protection specified for 100 Mbps Fast Ethernet.
Does it provide coaxial surge protection?
Yes. One coaxial line is protected, with the coaxial protection specified for connections up to 2.2 GHz.
What cables are included?
The package includes a 6-foot gold coaxial cable, a 6-foot telephone cable and a 6-foot Ethernet network cable, in addition to the surge protector and owner documentation.
