Overview

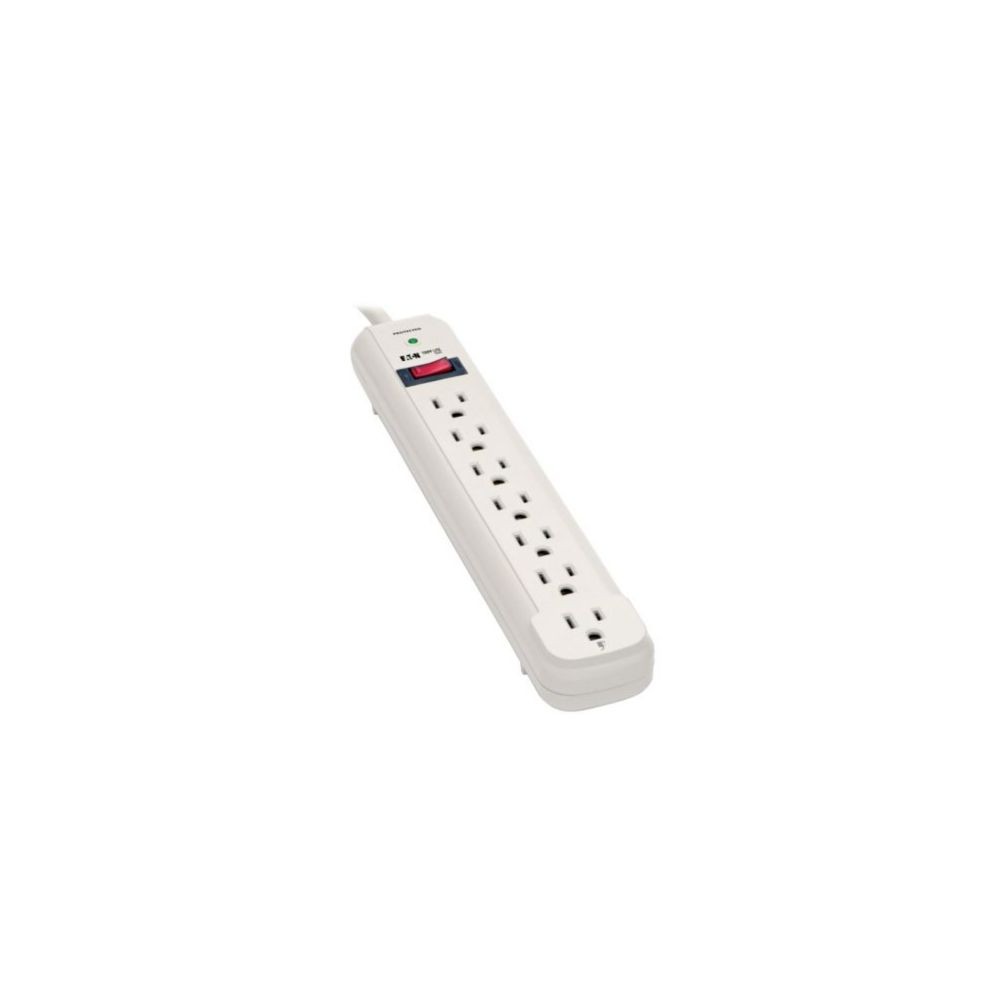

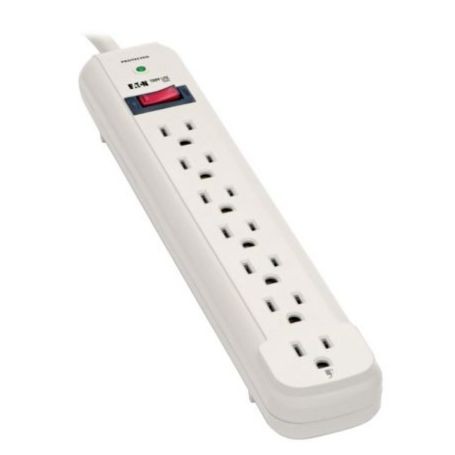

The Tripp Lite TLP725 Protect It! is a seven-outlet AC surge protector designed for computers, peripherals, network equipment and other home or office electronics. It combines 1080-joule surge suppression with a 25-foot power cord, diagnostic protection status indication and overload protection.
Surge Protection and Noise Filtering
The TLP725 provides 1080 joules of AC surge suppression with protection across hot-neutral, neutral-ground and hot-ground modes. Its suppression response time is less than 1 nanosecond, with a 400V UL 1449 let-through rating. Integrated EMI/RFI filtering attenuates line noise by up to 20 dB.
Outlets and Power Control
Seven NEMA 5-15R receptacles provide connections for standard 120V equipment. One outlet is spaced for bulky transformer plugs so that larger adapters can be used without blocking neighboring receptacles. An illuminated power switch provides centralized control, while the integrated 15A resettable circuit breaker provides overload protection.
Diagnostic and Installation Features
A built-in diagnostic LED indicates that surge protection is present. Automatic shutoff disconnects power if the protection circuitry is incapacitated. Keyhole mounting slots on the underside allow the unit to be mounted to a suitable wall or desk surface. The 25-foot, 14 AWG SJT cord provides extended reach from the AC receptacle.
Key Features
- Seven NEMA 5-15R AC outlets with one transformer-spaced receptacle
- 1080-joule AC surge suppression with less-than-1-nanosecond response
- Up to 20 dB EMI/RFI line-noise filtering
- 15A resettable circuit breaker with illuminated on/off switch
- 25-foot 14 AWG SJT power cord and diagnostic protection LED
Applications
The TLP725 is suited to desktop computer stations, printers, scanners, routers, modems, monitors and other small electronic equipment requiring AC line surge protection. Its extended cord length also supports workstations where the available wall receptacle is located some distance from the equipment.
DC Supplies Product Note
The TLP725 is an AC surge protector rather than a data-line surge protector. It provides AC line suppression but does not provide coaxial cable protection, so equipment using separate signal or communications cables may require separate protection appropriate to those connections.
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number / MPN | TLP725 |
| Product Type | Surge Protector |
| Series | Protect It! |
| Total Outlets | 7 |
| AC Output Receptacles | 7 × NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Maximum Current | 15A |
| Power Handling | 1800W |
| Frequency | 50/60 Hz |
| Surge Energy Rating | 1080 joules |
| Maximum Surge Current | 72,000A |
| Surge Response Time | < 1 ns |
| Protection Modes | H-N, N-G and H-G |
| UL 1449 Let-Through Rating | 400V |
| Clamping Voltage | 150V RMS |
| EMI/RFI Filtering | Up to 20 dB |
| Cord Length | 25 ft (7.62 m) |
| Cord Gauge / Type | 14 AWG SJT |
| Circuit Breaker | 15A resettable |
| Housing Material | Plastic |
| Housing Color | Light gray |
| Mounting | Keyhole slots |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Compliance | UL 1449, UL 1363, cUL/CSA, NOM, RoHS |
| Warranty | Limited lifetime |
FAQs
How many outlets does the TLP725 have?
The TLP725 has seven NEMA 5-15R AC outlets, including one outlet spaced for a bulky transformer plug.
How much surge protection does the TLP725 provide?
It provides a 1080-joule AC surge protection rating and supports protection across hot-neutral, neutral-ground and hot-ground modes.
How long is the power cord?
The TLP725 has a 25-foot (7.62-meter) 14 AWG SJT AC power cord with a NEMA 5-15P plug.
Does the TLP725 filter electrical noise?
Yes. Its integrated EMI/RFI filtering provides attenuation of up to 20 dB.
Does it have overload protection?
Yes. A 15A resettable circuit breaker is integrated with the illuminated power switch.
