Overview

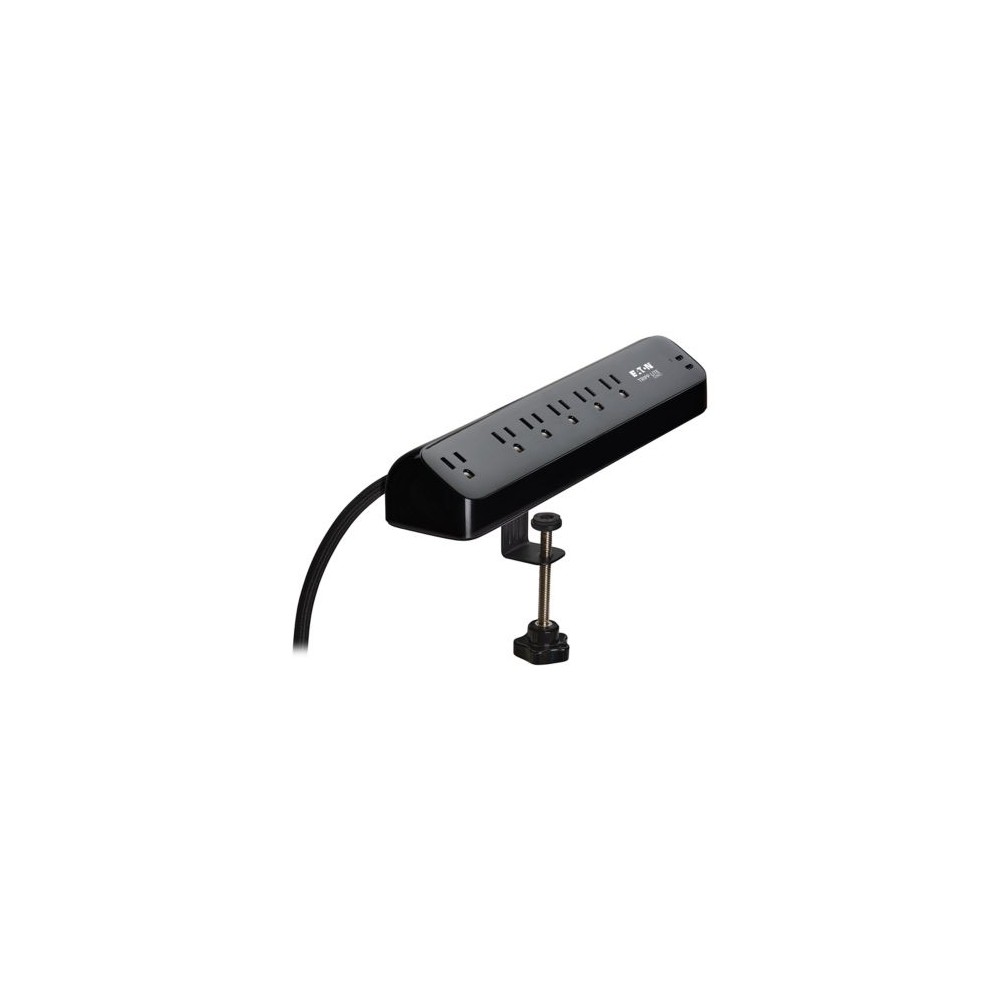

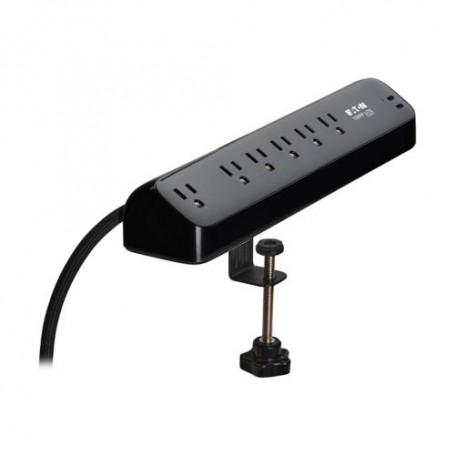

The Eaton Tripp Lite TLP610U30CLAMPB is a Protect It! 6-outlet surge protector designed for desks, workstations, home offices, retail environments, and other work areas. It combines six NEMA 5-15R AC outlets with two USB-C charging ports, 900 joules of surge suppression, a built-in adjustable desk clamp, and a 10-foot braided power cord.
The unit connects to a compatible 120V AC outlet through a NEMA 5-15P right-angle plug. Its adjustable clamp attaches to flat surfaces and keeps the protected AC outlets and USB-C charging ports accessible at the workstation.
AC Power and Surge Protection
The TLP610U30CLAMPB provides six NEMA 5-15R AC receptacles for connecting computers, monitors, networking equipment, printers, desk lamps, and other compatible electronics. One outlet is spaced apart from the others to accommodate a bulky transformer without blocking adjacent receptacles.
The surge protector provides a 900-joule AC suppression rating and protects against power surges and spikes. Its protection circuitry covers normal-mode H-N and common-mode N-G/H-G suppression. The unit also provides EMI/RFI filtering to help reduce disruptive electrical line noise.
USB-C Charging
Two USB-C charging ports provide Power Delivery charging with up to 30W of combined charging output. The USB-C ports are intended for charging compatible smartphones, tablets, and other mobile devices.
The USB-C charging capability is separate from the six AC receptacles. The 30W specification describes the available USB-C charging output rather than AC input power to the surge protector.
Desk Clamp and Installation
The integrated adjustable desk clamp allows the surge protector to be mounted to a desk, table, or other suitable flat surface. Eaton specifies a clamp range of approximately 0.4 to 2.2 inches (1 to 56 mm). The 10-foot braided power cord provides additional placement flexibility between the workstation and a compatible wall outlet.
Key Features
- Six NEMA 5-15R AC outlets with 900 joules of surge suppression
- Two USB-C charging ports with up to 30W Power Delivery output
- Adjustable desk clamp for mounting to suitable flat surfaces up to 2.2 inches thick
- 10-foot braided power cord with NEMA 5-15P right-angle plug
- EMI/RFI filtering and integrated protected-status diagnostic LED
Applications
The TLP610U30CLAMPB can be used where protected AC power and convenient USB-C charging are needed directly at a workstation. Typical applications include computer desks, shared workspaces, home offices, retail workstations, and industrial work areas requiring accessible surge-protected power.
DC Supplies Product Note
The desk clamp is an important installation feature of this model rather than simply an accessory. Verify that the intended mounting surface falls within the specified approximately 0.4 to 2.2-inch clamp range before installation. The USB-C ports provide up to 30W of combined charging output, while the AC outlets remain available for conventional powered equipment.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | TLP610U30CLAMPB |
| Product Type | Surge Protector / Power Strip |
| Series | Protect It! |
| AC Outlets | 6 x NEMA 5-15R |
| Input Plug | NEMA 5-15P, right-angle |
| Input Voltage | 120 VAC nominal |
| Voltage Compatibility | 125 VAC |
| Circuit Breaker | 15A |
| Frequency | 60 Hz |
| AC Surge Suppression | 900 joules |
| UL 1449 Let-Through Rating | 600V / 600V / 600V |
| AC Suppression Response Time | < 1 ns |
| USB-C Charging Ports | 2 |
| USB-C Charging Output | Up to 30W combined |
| Charging Current | 3.1A per USB-C port |
| EMI/RFI Filtering | Yes |
| Diagnostic Indicator | Green protected-status LED |
| Power Cord Length | 10 ft. (3 m) |
| Power Cord | 14 AWG, black braided |
| Mounting | Adjustable desk clamp |
| Clamp Range | Approximately 0.4 to 2.2 in. (1 to 56 mm) |
| Housing Material | Plastic |
| Housing Color | Black |
| Dimensions | 12.05 x 2.71 x 1.91 in. |
| Weight | 1.75 lb. |
| Certifications | CSA Standard C22.2 |
| Compliance | FCC Class B |
| Warranty | Lifetime limited warranty |
Package Contents
The manufacturer lists the TLP610U30CLAMPB 6-outlet surge protector, desk clamp, and owner's manual as the package contents.
FAQs
How many AC outlets does the TLP610U30CLAMPB have?
It has six NEMA 5-15R AC outlets. One outlet is spaced apart to accommodate a bulky transformer without blocking the neighboring receptacles.
How much power do the USB-C ports provide?
The two USB-C ports provide up to 30W of combined Power Delivery charging output for compatible mobile devices.
What is the surge protection rating?
The TLP610U30CLAMPB has a 900-joule AC surge suppression rating.
What surfaces can the desk clamp attach to?
The adjustable clamp is designed for suitable flat surfaces within an approximately 0.4 to 2.2-inch (1 to 56 mm) thickness range.
How long is the power cord?
The unit has a 10-foot (3-meter) braided input power cord with a NEMA 5-15P right-angle plug.
Does the unit include the desk clamp?
Yes. Eaton lists the desk clamp as part of the package contents for the TLP610U30CLAMPB.
