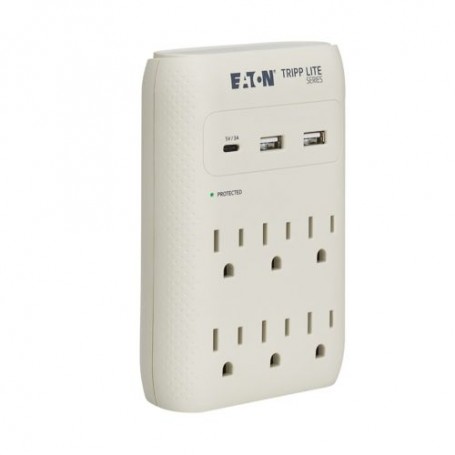

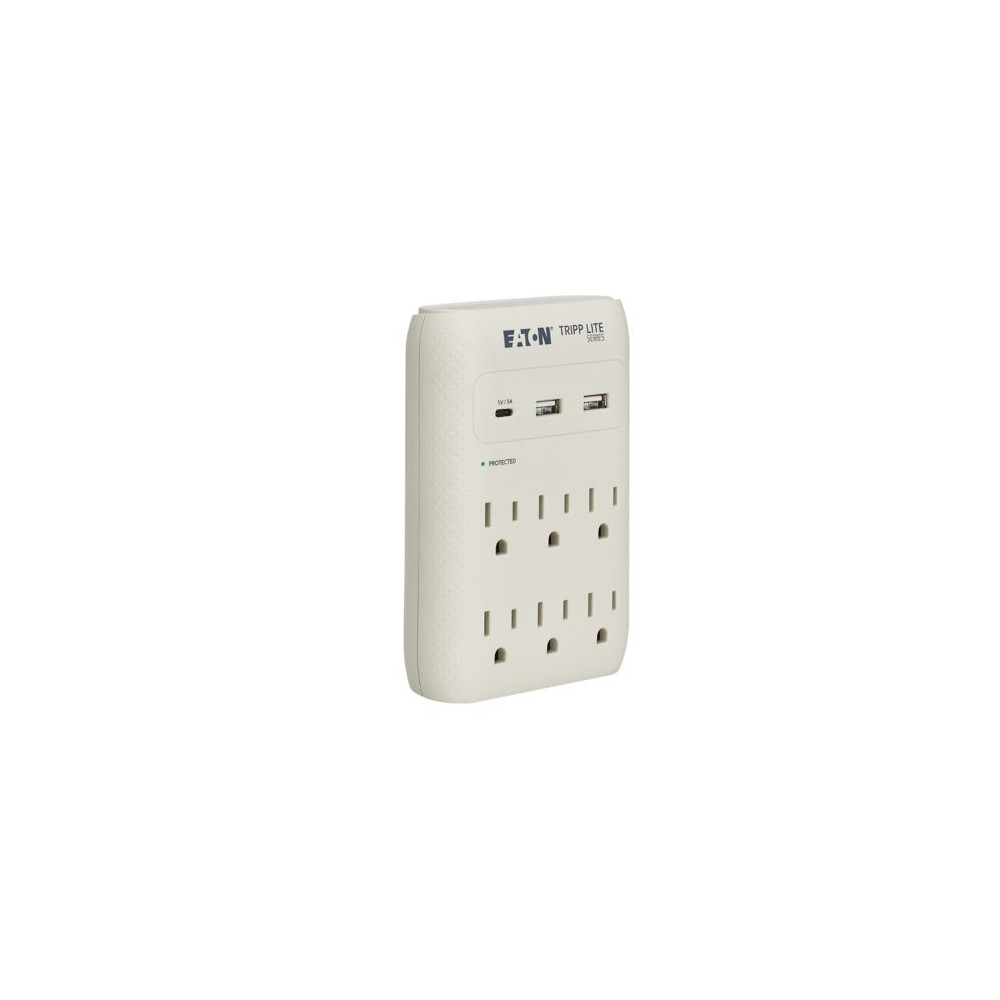

The Eaton Tripp Lite SK60C Protect It! is a 6-outlet direct plug-in surge protector designed to protect and power home, office, workstation, and electronic equipment. It combines six NEMA 5-15R AC outlets with 1080-joule surge suppression, two USB-A charging ports, and one USB-C charging port in a compact gray housing.
Surge Protection and Power Distribution
The SK60C connects directly to a standard wall outlet through its NEMA 5-15P plug, eliminating the need for a power cord. Six NEMA 5-15R outlets distribute AC power to connected equipment, while the surge suppression system provides 1080 joules of protection against power surges and spikes.
USB Charging
The unit provides three dedicated USB charging ports: two USB-A ports rated at 2.4A each and one USB-C port rated at 3A. These ports provide charging output for compatible mobile devices such as smartphones, tablets, and other USB-powered electronics.
Protection and Monitoring
The SK60C includes a 15A circuit breaker and automatic shut-off protection. A green diagnostic LED indicates that surge protection is active. EMI/RFI filtering from 150 kHz to 100 MHz helps reduce unwanted line noise on connected equipment.
Direct Plug-In Design
The direct plug-in form factor attaches directly to the wall outlet with no external AC cord. Its compact design helps reduce cable clutter and is suited to locations where a conventional corded surge protector may be inconvenient.
Key Features
- Six NEMA 5-15R AC outlets with 1080-joule surge suppression
- Two USB-A charging ports rated at 2.4A each
- One USB-C charging port rated at 3A
- Direct plug-in design with no AC power cord
- 15A circuit breaker, automatic shut-off, and protection-status LED
Applications
- Home and office electronics
- Desktop computer and workstation equipment
- Printers and networking equipment
- Smartphone and tablet charging alongside AC equipment
- Locations requiring compact wall-mounted surge protection
DC Supplies Product Note
The SK60C is a direct plug-in surge protector, so it has no external AC power cord. Its three USB ports are charging outputs and are separate from the six AC receptacles.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | SK60C |
| Product Type | Surge protector |
| Product Line | Protect It! |
| Total AC Outlets | 6 |
| AC Receptacles | NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Output Capacity | 1875W |
| Current Capacity | 15A |
| Surge Suppression Rating | 1080 joules |
| UL 1449 Let-Through Rating | 500V / 500V / 600V |
| Response Time | < 1 ns |
| USB-A Ports | 2 |
| USB-A Charging Output | 2.4A per port |
| USB-C Ports | 1 |
| USB-C Charging Output | 3A |
| USB Charging Method | USB |
| EMI/RFI Filtering | 150 kHz–100 MHz |
| Circuit Breaker | 15A |
| Protection Modes | L-N, L-G, N-G |
| Diagnostic LED | Green protection indicator |
| Automatic Shut-Off | Yes |
| Form Factor | Direct plug-in |
| AC Cord Length | 0 ft. / direct plug-in |
| Housing Color | Gray |
| Housing Material | Plastic |
| Dimensions | 5.52 x 3.92 x 2.27 in. |
| Weight | 0.49 lb |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Compliance | RoHS |
| Certifications | UL 1449, CSA C22.2 |
| Warranty | Limited lifetime |
Frequently Asked Questions
How many AC outlets does the SK60C have?
The SK60C has six NEMA 5-15R AC outlets.
What USB charging ports are included?
It includes two USB-A ports rated at 2.4A each and one USB-C port rated at 3A.
What is the surge protection rating?
The SK60C provides 1080 joules of AC surge suppression with a response time of less than 1 ns.
Does the SK60C have a power cord?
No. It uses a NEMA 5-15P direct plug-in design and has no external AC power cord.
Does it provide overload protection?
Yes. The unit includes a 15A circuit breaker and automatic shut-off protection.
What does the green LED indicate?
The green diagnostic LED indicates that surge protection is present.
