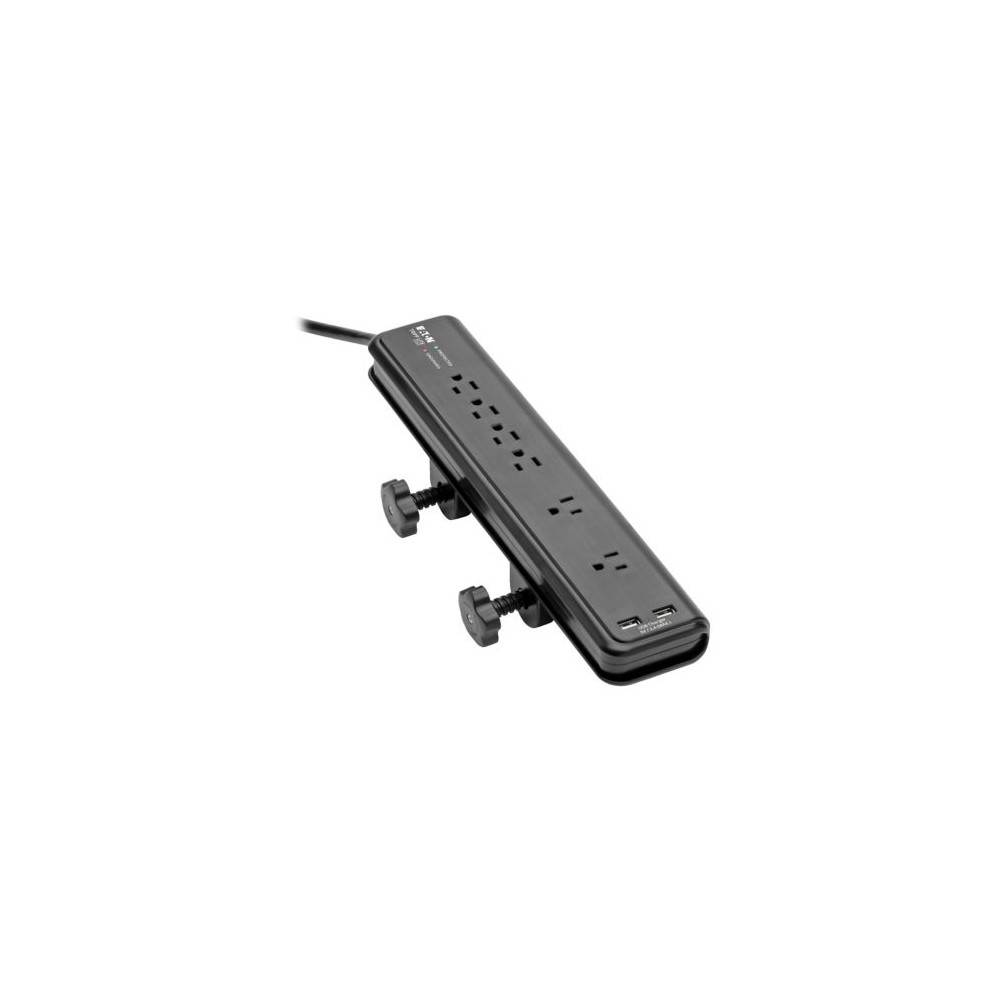

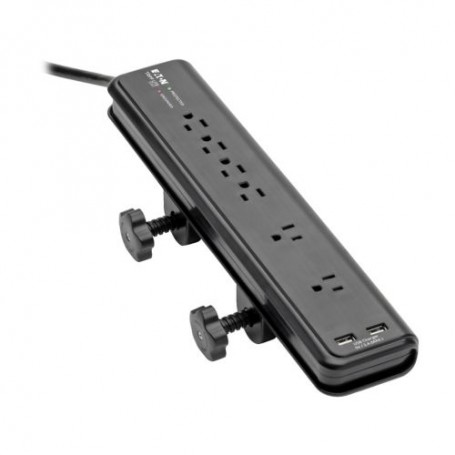

The Eaton Tripp Lite TLP606DMUSB Protect It! is a 6-outlet clamp-mount surge protector designed to provide AC surge protection and USB charging for workstations, desks, workbenches, and other equipment areas. It combines six NEMA 5-15R outlets with 2100-joule surge suppression, EMI/RFI filtering, a 15A resettable circuit breaker, and two USB-A charging ports.
Surge Protection and Power Distribution
The TLP606DMUSB accepts 120V AC through a NEMA 5-15P input plug and distributes power through six NEMA 5-15R outlets. Its 2100-joule AC suppression rating is designed to absorb excess transient energy, while the protection circuitry includes normal-mode and common-mode line suppression.
USB-A Charging
Two USB-A charging ports provide a combined 2.1A charging capacity for compatible portable devices such as phones, tablets, and other USB-powered electronics. The USB ports are dedicated charging outputs and are separate from the six AC receptacles.
Clamp-Mount Installation
Two integrated clamps allow the surge protector to attach to the edge of a desk, workbench, or table. The clamps accommodate surfaces from approximately 0.39 to 1.38 inches thick, placing the AC outlets and USB charging ports within convenient reach.
Safety and Monitoring
A 15A resettable circuit breaker provides overload protection, while the illuminated power switch controls the connected outlets. A green diagnostic LED indicates that surge protection is present. The unit also provides automatic shutoff when the protection circuitry is incapacitated.
Key Features
- Six NEMA 5-15R AC outlets with 2100-joule surge suppression
- Two USB-A charging ports with 2.1A total charging capacity
- Integrated clamps for desk, workbench, or table mounting
- 15A resettable circuit breaker and illuminated power switch
- EMI/RFI filtering with diagnostic protection LED
Applications
- Desktop computer and workstation power protection
- Office desks and shared workspaces
- Workbenches and electronics work areas
- Telecom and networking equipment locations
- Charging portable USB devices alongside AC-powered equipment
DC Supplies Product Note
The TLP606DMUSB is specifically a clamp-mount surge protector, so its integrated clamps are part of the product's installation design rather than optional mounting hardware. The USB charging ports provide charging output but are not additional AC receptacles.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | TLP606DMUSB |
| Product Type | Surge protector |
| Product Line | Protect It! |
| Total AC Outlets | 6 |
| Output Receptacles | NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Electrical Service | 15A |
| Frequency | 50/60 Hz |
| AC Suppression Rating | 2100 joules |
| Maximum Surge Current | 35.5 kA |
| UL 1449 Let-Through Rating | 400V |
| Response Time | < 1 ns |
| USB Charging Ports | 2 |
| USB Port Type | USB-A female |
| USB Charging Capacity | 2.1A total |
| EMI/RFI Filtering | Yes |
| Circuit Breaker | 15A resettable |
| Diagnostic LED | Protection-present indicator |
| Automatic Shut-Off | Yes |
| Power Cord Length | 6 ft. (1.83 m) |
| Power Cord Gauge | 14 AWG SJT |
| Housing Color | Black |
| Material | Plastic |
| Mounting | Built-in desk clamp |
| Clamp Range | 0.39–1.38 in. |
| Dimensions | 13.6 x 2.87 x 2.89 in. |
| Weight | 1.5 lb |
| Certifications | UL Listed, cUL Listed, CSA |
| Compliance | RoHS |
| Warranty | Limited lifetime |
Frequently Asked Questions
How many AC outlets does the TLP606DMUSB have?
It has six NEMA 5-15R AC outlets.
How many USB charging ports are included?
The TLP606DMUSB has two USB-A female charging ports with a combined charging capacity of 2.1A.
What is the surge protection rating?
The surge protector provides 2100 joules of AC surge suppression and has a maximum surge current rating of 35.5 kA.
How does the TLP606DMUSB mount?
Two integrated clamps attach the unit to the edge of a desk, workbench, or table. The specified clamp range is approximately 0.39 to 1.38 inches.
Does it have overload protection?
Yes. A 15A resettable circuit breaker provides overload protection, and the illuminated switch combines switching and circuit-breaker functions.
What is the power cord length?
The AC power cord is 6 ft. (1.83 m) long and uses a NEMA 5-15P plug.
