Overview

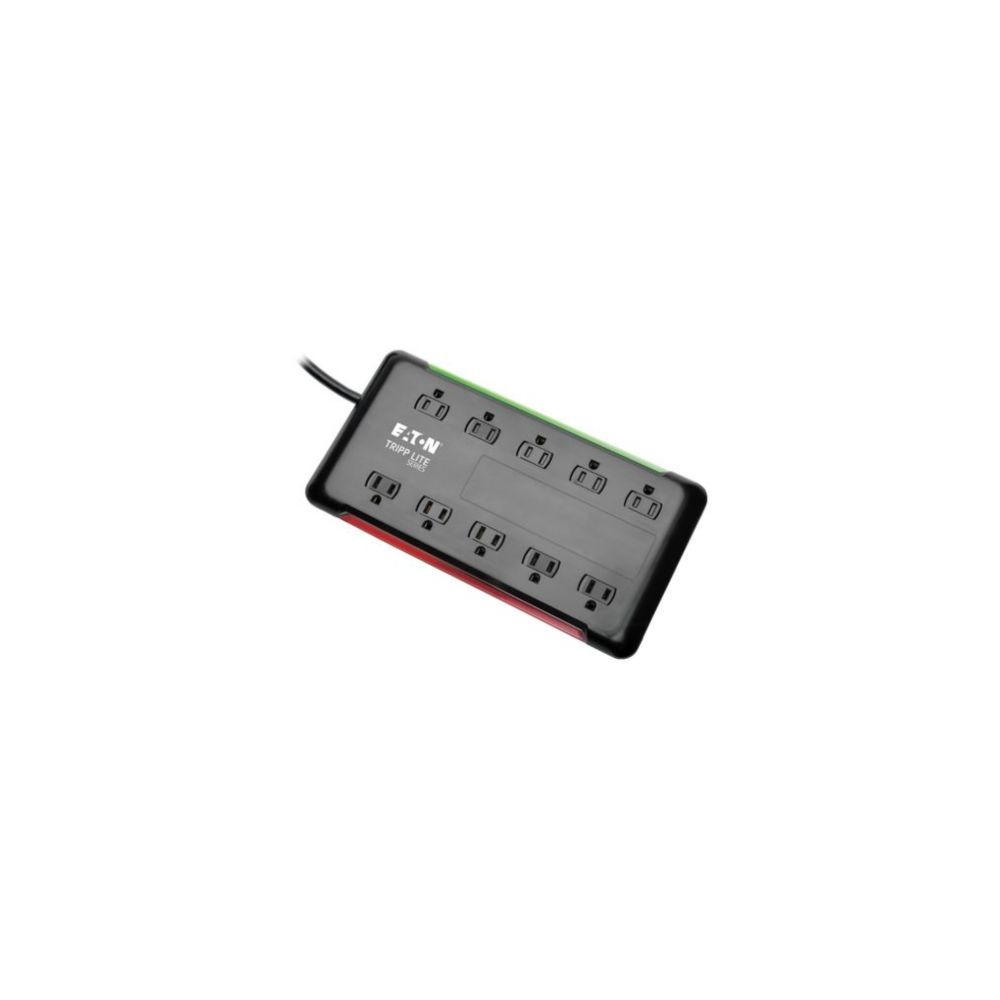

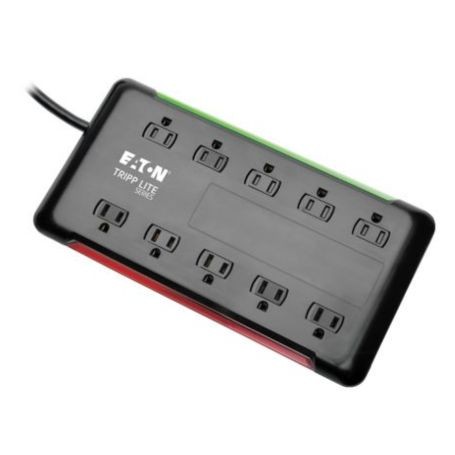

The Eaton Tripp Lite TLP1006B Protect It! is a 10-outlet surge protector designed for home offices, workstations, shared workspaces, and other areas requiring AC surge and line-noise protection. It provides 2880 joules of surge suppression, widely spaced NEMA 5-15R outlets, and a 6-foot power cord with a right-angle NEMA 5-15P plug.
Technical Information
The TLP1006B operates from a 120V AC supply and supports up to 15A of connected load, with a maximum power rating of 1800 VA. Its protection circuitry provides full normal-mode and common-mode line suppression while integrated EMI/RFI filtering helps reduce disruptive electrical line noise. The AC suppression response time is less than 1 nanosecond.
Protection and Power Control
An integrated 15A resettable circuit breaker protects the connected outlets against overload conditions. The unit includes diagnostic LED indicators for power and protection status, an on/off rocker switch, and automatic shutoff that disconnects the outlets if the surge-protection circuitry becomes incapacitated.
Key Features
- 2880-joule surge protection rating
- 10 widely spaced NEMA 5-15R outlets for standard and bulky transformer plugs
- 15A resettable circuit breaker for overload protection
- EMI/RFI line-noise filtering with less-than-1-nanosecond response time
- 6-foot cord with right-angle NEMA 5-15P plug and wall/desk mounting slots
Applications
- Home and office computer workstations
- Printers, scanners, routers, modems, and external storage devices
- Home theater and general consumer electronics
- Shared workspaces and desktop equipment installations
- Equipment requiring additional outlet spacing for bulky power adapters
DC Supplies Product Note
The TLP1006B's widely spaced outlets are useful when several connected devices use bulky transformer-style power adapters. The right-angle input plug also helps equipment and furniture sit closer to the wall compared with a straight plug arrangement.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | TLP1006B |
| Product Type | Surge Protector / Power Strip |
| Series | Protect It! |
| Input Voltage | 120V AC |
| Frequency | 60 Hz |
| Maximum Current | 15A |
| Maximum Power | 1800 VA |
| Input Plug | NEMA 5-15P, right-angle |
| Output Receptacles | 10 x NEMA 5-15R |
| Surge Energy Rating | 2880 joules |
| Surge Protection Modes | H-N, N-G, H-G |
| AC Suppression Response Time | < 1 ns |
| EMI/RFI Filtering | Yes |
| Overload Protection | 15A resettable circuit breaker |
| Automatic Shutoff | Yes |
| Diagnostic Indicators | Grounded and Protected LED indicators |
| Power Cord | 6 ft. (1.83 m), 14 AWG |
| Housing Material | Plastic |
| Mounting | Keyhole slots for wall or desk mounting |
| Dimensions | 11.1 x 1.29 x 5.7 in. |
| Weight | 1.71 lb |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 14° to 122°F (-10° to 50°C) |
| Operating Humidity | 10% to 90% RH |
| Compliance | RoHS |
| Certifications | UL Listed, UL 1449, CSA, NOM |
| UPC | 037332200013 |
| Warranty | Limited lifetime warranty |
Package Contents
- TLP1006B Protect It! 10-Outlet Surge Protector
- Owner's manual
FAQs
How many outlets does the TLP1006B have?
The unit provides 10 NEMA 5-15R AC outlets.
What is the surge protection rating?
The TLP1006B has a 2880-joule surge protection rating.
What is the maximum load?
The surge protector supports up to 15A and has a maximum power rating of 1800 VA at 120V AC.
Does it filter EMI and RFI noise?
Yes. Integrated EMI/RFI filtering is provided to reduce disruptive line noise.
How long is the power cord?
The AC power cord is 6 feet (1.83 meters) long and uses a right-angle NEMA 5-15P plug.
