Overview

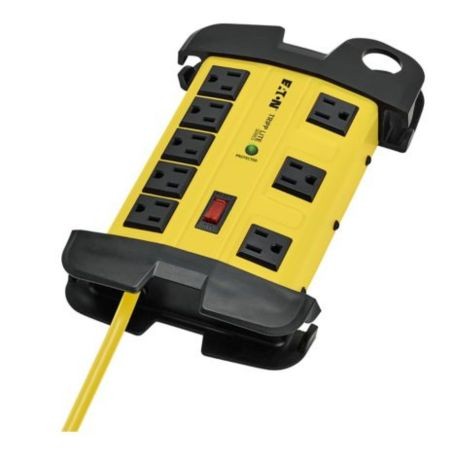

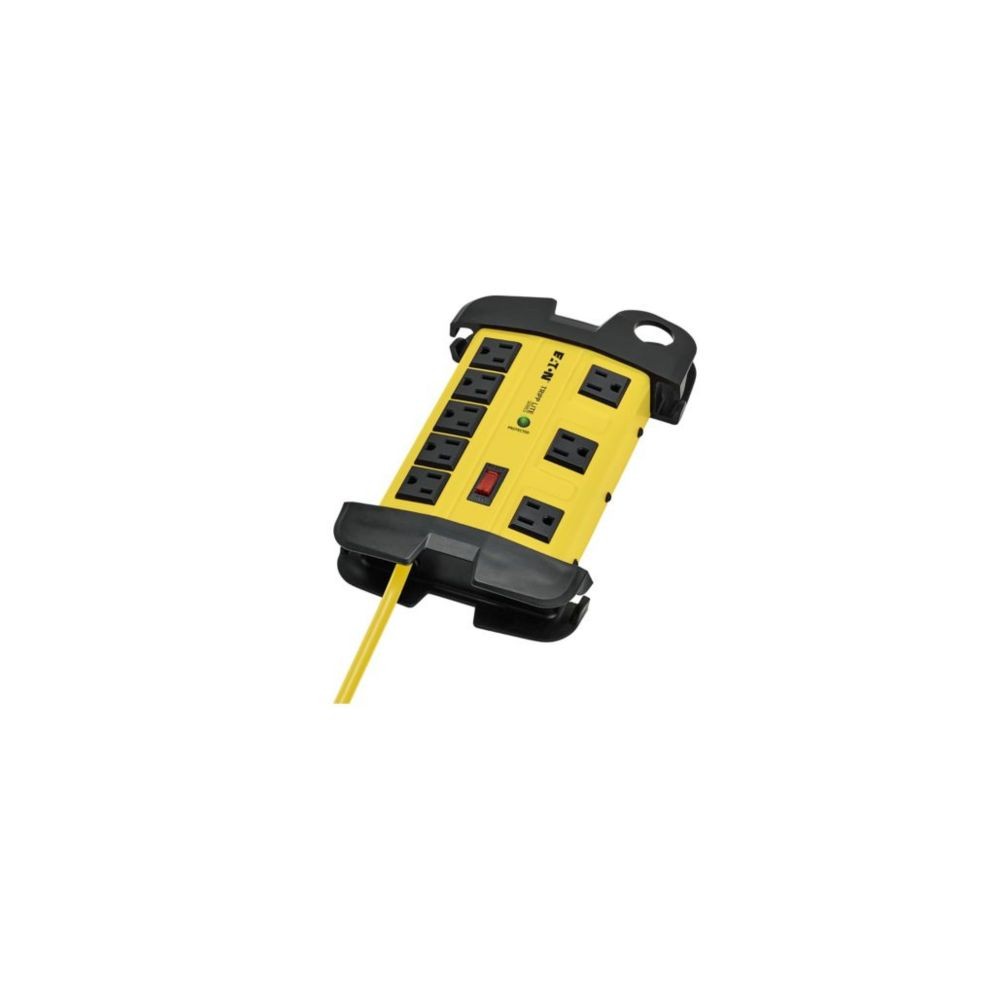

The Eaton Tripp Lite TLM825SA Protect It! is an industrial-grade 8-outlet surge protector designed for workshops, factories, garages, warehouses, automotive facilities, workbenches, and other environments where connected electrical equipment requires surge and line-noise protection. It provides 3900 joules of surge suppression, eight NEMA 5-15R outlets, and a 25-foot grounded power cord.
Technical Information
The TLM825SA operates from a nominal 120V AC supply and supports up to 15A of connected load. Its protection circuitry provides normal-mode and common-mode surge suppression, with an AC suppression response time below 1 nanosecond and a UL 1449 let-through rating of 400V line-to-neutral, 400V line-to-ground, and 500V neutral-to-ground. EMI/RFI filtering reduces line noise by up to 20 dB.
Protection and Power Control
A lighted on/off switch incorporates a 15A circuit breaker for overload protection. A green protected LED indicates that surge suppression is active. Automatic shutoff disconnects power from the outlets if the protection circuitry is incapacitated. The eight outlets are arranged as one bank of five standard outlets and one bank of three transformer-spaced outlets.
Key Features
- 3900-joule AC surge suppression
- Eight NEMA 5-15R outlets, including three transformer-spaced outlets
- 25-foot, 14 AWG SJT grounded power cord
- 15A lighted power switch with integrated circuit breaker
- Rugged metal housing with cord wrap, cable clip, and mounting slots
Applications
- Industrial workbenches and factory-floor equipment
- Garage and automotive electrical equipment
- Power tools, work lights, pumps, and compressors
- Computers, monitors, projectors, and other electronic equipment
- Wall, desk, or workbench installations requiring extended cord reach
DC Supplies Product Note
The TLM825SA combines long-distance power distribution with surge protection in a rugged metal housing. Its 25-foot cord can reach outlets farther from the work area, while the integrated cord wrap and keyhole mounting slots help keep the installation organized.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | TLM825SA |
| Product Type | Industrial Surge Protector / Power Strip |
| Series | Protect It! |
| Input Voltage | 120V AC |
| Recommended Electrical Service | 120V (110–125V) |
| Maximum Current | 15A |
| Frequency | 60 Hz |
| Input Plug | NEMA 5-15P |
| Output Receptacles | 8 x NEMA 5-15R |
| Surge Energy Rating | 3900 joules |
| Maximum Surge Current | 120,000A |
| Response Time | < 1 ns |
| EMI/RFI Filtering | Up to 20 dB |
| Protection Modes | H-N, N-G, H-G |
| UL 1449 Let-Through Rating | 400V L-N, 400V L-G, 500V N-G |
| Overload Protection | 15A circuit breaker |
| Power Switch | Lighted on/off switch |
| Diagnostic Indicator | Green protected LED |
| Power Cord | 25 ft. (7.62 m), 14 AWG SJT |
| Housing Material | Metal |
| Mounting | Integrated keyhole slots |
| Dimensions | 10.26 x 5.13 x 1.57 in. |
| Weight | 4.52 lb (2.05 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Humidity | 20% to 85% RH |
| Certifications | UL Listed, cUL Listed, UL 1449 |
| Compliance | RoHS |
| UPC | 037332140067 |
| Warranty | Lifetime limited warranty |
Package Contents
- TLM825SA Safety Surge Suppressor
- 4 safety covers
- Owner's manual
FAQs
How many outlets does the TLM825SA provide?
It provides eight NEMA 5-15R outlets, arranged in one group of five standard outlets and one group of three transformer-spaced outlets.
What is the surge protection rating?
The surge suppression rating is 3900 joules, with a maximum surge current rating of 120,000A.
How long is the power cord?
The grounded power cord is 25 feet long and uses 14 AWG SJT cable.
Does the unit include overload protection?
Yes. The lighted power switch incorporates a 15A circuit breaker for overload protection.
Can the surge protector be mounted?
Yes. Integrated keyhole slots support mounting on walls, under desks, or along workbenches.
