Overview

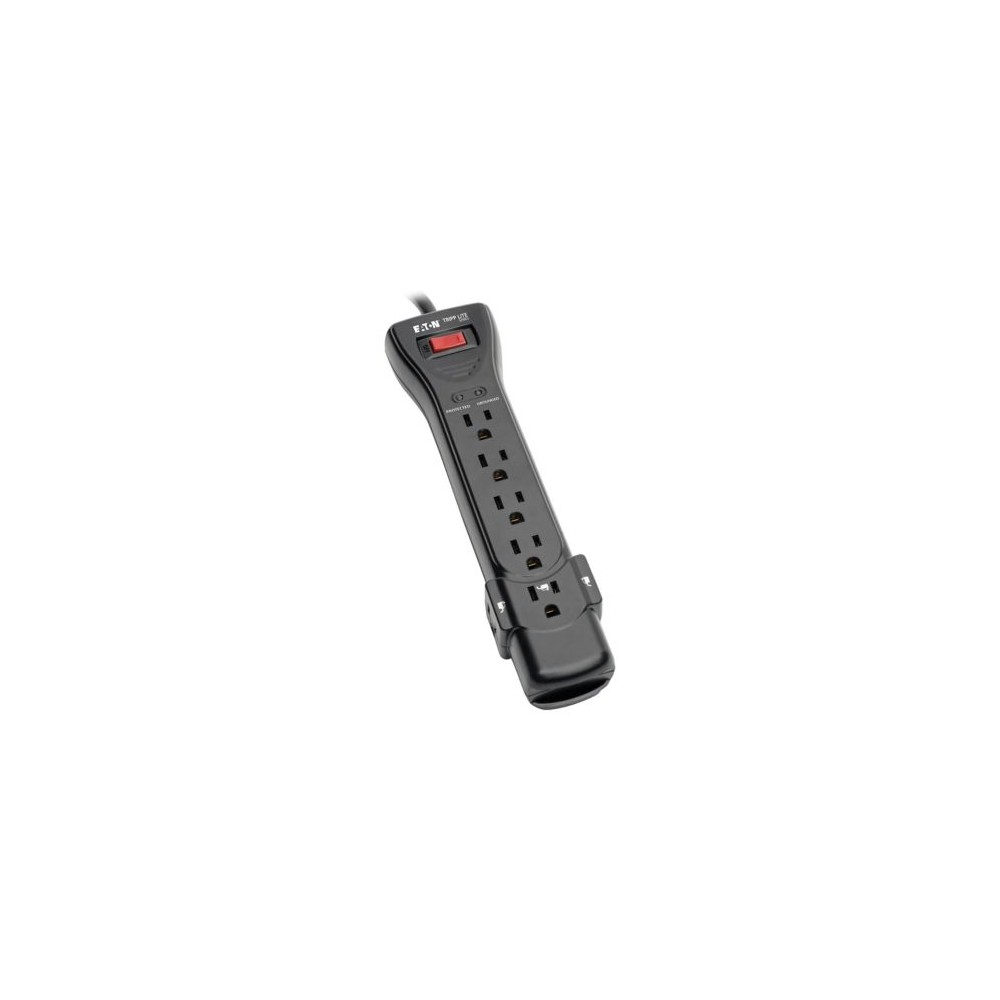

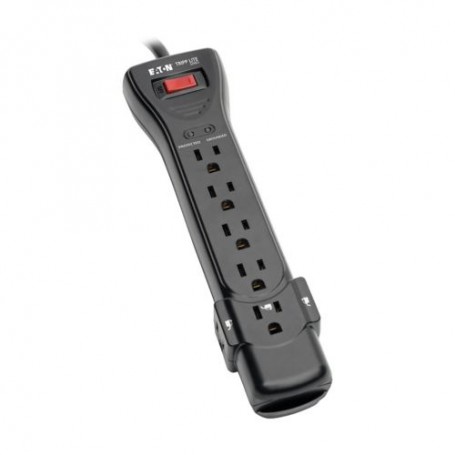

The Eaton Tripp Lite SUPER725B Protect It! is a 7-outlet surge protector designed to protect connected electronic equipment from AC power surges, spikes, and line noise. It features seven NEMA 5-15R receptacles, a 25-foot AC power cord with a right-angle NEMA 5-15P plug, 2160 joules of surge suppression, EMI/RFI filtering, and a 15A resettable circuit breaker.
Surge Protection
The SUPER725B provides 2160 joules of AC surge suppression and protects against both normal-mode and common-mode line disturbances. Its suppression circuitry is specified for H-N, N-G, and H-G protection modes, with a UL 1449 let-through rating of 330V L-G, 400V L-N, and 400V N-G.
Outlets and Power Connection
Seven NEMA 5-15R outlets provide connections for computers, networking equipment, peripherals, home electronics, and other compatible 120V equipment. Two outlets are positioned on the side of the housing to provide additional clearance for bulky transformer-style plugs. The unit connects to a compatible AC receptacle through its 25-foot SJT power cord and right-angle NEMA 5-15P input plug.
Noise Filtering and Status Indicators
Integrated EMI/RFI filtering provides up to 20 dB of line-noise attenuation. Built-in diagnostic LEDs indicate protection status and whether the connected wall outlet is properly grounded. The green protection LED confirms suppressor protection is present, while the red LED indicates grounding status.
Safety and Installation
A 15A resettable circuit breaker provides overload protection for the connected outlets. The SUPER725B also includes keyhole mounting slots on the bottom of the housing for wall or desk installation. The housing is made from plastic and finished in black.
Key Features
- Seven NEMA 5-15R AC outlets, including three positioned for bulky transformer plugs
- 2160-joule surge suppression with normal-mode and common-mode protection
- 25-foot SJT power cord with right-angle NEMA 5-15P plug
- Up to 20 dB of EMI/RFI line-noise filtering
- 15A resettable circuit breaker with diagnostic protection and grounding LEDs
Applications
The SUPER725B can be used where multiple 120V electronic devices need surge protection and a long AC connection. Suitable equipment can include computers, networking equipment, peripherals, laboratory equipment, and home-theater electronics, provided their electrical requirements are compatible with the surge protector's 120V, 15A configuration.
DC Supplies Product Note
The 25-foot cord is a significant deployment characteristic of this model. It allows the surge protector to reach AC outlets that are farther from the equipment installation point, while the right-angle NEMA 5-15P plug can help reduce plug clearance behind furniture or equipment. The SUPER725B is a surge protector rather than a UPS and does not provide battery backup during a power failure.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | SUPER725B |
| Product Type | Surge Protector |
| Product Line | Protect It! |
| Total Outlets | 7 |
| Output Receptacles | NEMA 5-15R |
| Input Plug | NEMA 5-15P, right-angle |
| Input Voltage | 120 VAC |
| Recommended Electrical Service | 120V (110–125V) |
| Maximum Current | 15A |
| Frequency | 50/60 Hz |
| Surge Suppression Rating | 2160 joules |
| Surge Response Time | < 1 ns |
| EMI/RFI Filtering | Up to 20 dB |
| Protection Modes | H-N, N-G and H-G |
| UL 1449 Let-Through Rating | 330V L-G, 400V L-N, 400V N-G |
| Circuit Breaker | 15A resettable |
| Power Cord | 25 ft (7.62 m), SJT |
| Power Cord Gauge | 14 AWG |
| Housing Material | Plastic |
| Housing Color | Black |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 14°F to 122°F (-10°C to 50°C) |
| Storage Humidity | 5% to 95% |
| Dimensions | 10.3 x 2.72 x 1.54 in |
| Weight | 2.89 lb |
| Mounting | Keyhole slots for wall or desk mounting |
| Warranty | Lifetime limited warranty |
| Certifications | UL Listed, UL 1449, NOM, CSA C22.2, cUL Listed |
| Compliance | RoHS |
| UPC | 037332189844 |
FAQs
How many devices can the SUPER725B connect?
The SUPER725B provides seven NEMA 5-15R outlets. The connected equipment must remain within the surge protector's 120V electrical configuration and 15A circuit rating.
How long is the power cord?
The SUPER725B has a 25-foot (7.62 m) AC power cord with a right-angle NEMA 5-15P plug.
How much surge protection does it provide?
The model is rated for 2160 joules of AC surge suppression and provides normal-mode and common-mode line suppression.
Does the SUPER725B filter electrical noise?
Yes. The integrated EMI/RFI filtering is specified to provide up to 20 dB of line-noise attenuation.
Does it have overload protection?
Yes. A 15A resettable circuit breaker helps protect the connected outlets against overload conditions.
Can the SUPER725B provide battery backup?
No. The SUPER725B is a surge protector and does not provide UPS battery backup. It is intended to suppress power surges and filter line noise rather than maintain power during an outage.
