Detailed Specifications

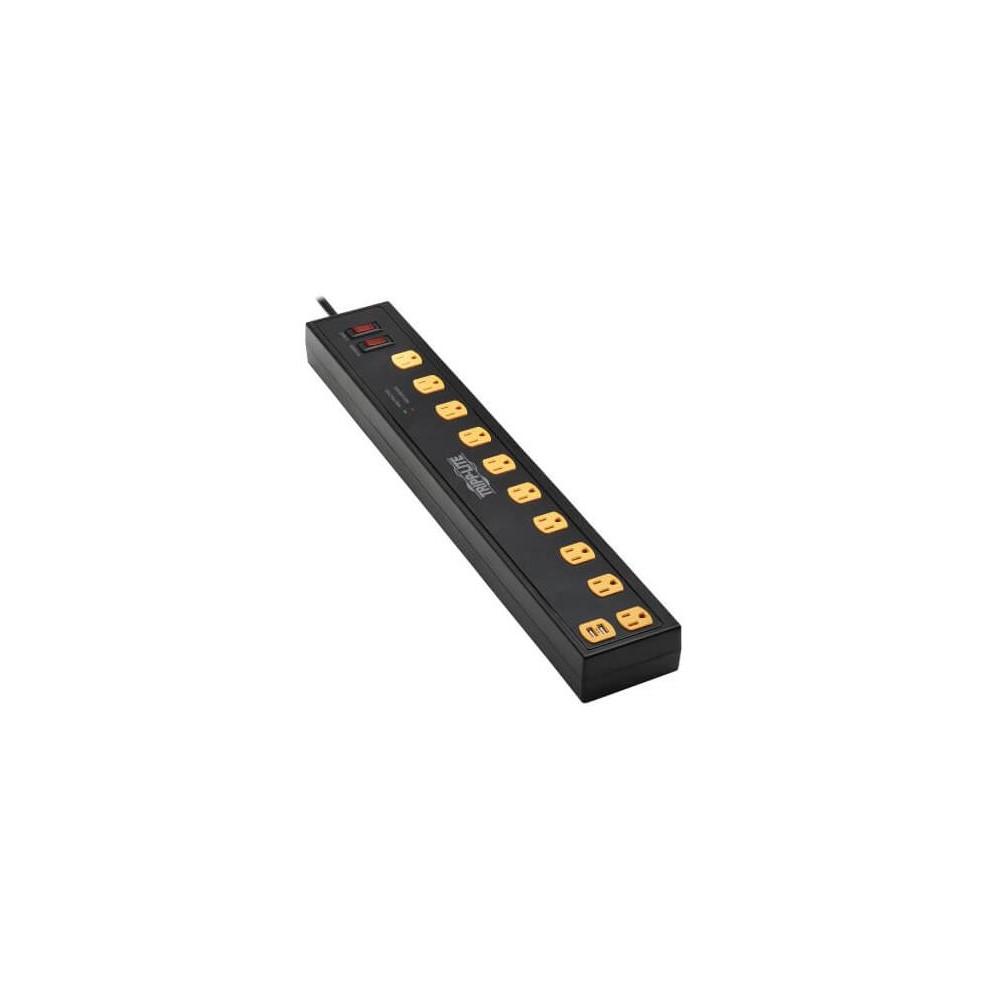

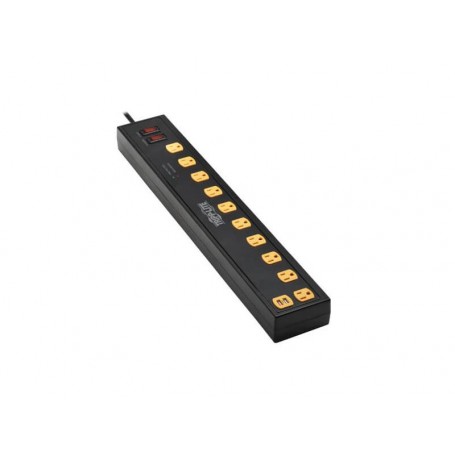

Eaton TLP1006USB 10-Outlet Surge Protector Compatible Tripp Lite
Overview :
The Eaton TLP1006USB is a Tripp Lite by Eaton Protect It! 10-Outlet Surge Protector designed to protect computers, networking equipment, office electronics, laboratory equipment, power tools and other connected devices against damaging power surges, spikes and EMI/RFI line noise.
It provides 10 NEMA 5-15R AC outlets, two USB-A charging ports sharing 2.4A / 12W, and two adjustable swivel LED light bars providing 1000 lumens each. The unit features 1350 joules of surge suppression, a 15A resettable circuit breaker, diagnostic LEDs and a 6 ft. AC power cord with a NEMA 5-15P plug.
Key Features :
- 10 NEMA 5-15R AC outlets
- 1350-joule surge suppression rating
- Two USB-A charging ports
- USB charging output of 2.4A / 12W total
- Two adjustable swivel LED light bars
- 1000 lumens per light bar
- 20W per light bar
- 6 ft. AC power cord
- NEMA 5-15P input plug
- 15A resettable circuit breaker
- Illuminated on/off switches
- Diagnostic LEDs for protection and grounding status
- EMI/RFI noise filtering
- Full normal-mode and common-mode surge protection
- 600V UL 1449 let-through rating
- Widely spaced outlets accommodate bulky power adapters
- Mounting holes/slots for flexible installation
- Black housing
- Suitable for home, office, retail, industrial and workstation applications
- UL and cUL Listed
- FCC Class B compliant
- RoHS compliant
- Lifetime limited worldwide warranty
- $100,000 Ultimate Lifetime Insurance in the U.S., Canada and Puerto Rico
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | TLP1006USB |
| Product Type | Surge Protector |
| Product Series | Protect It! |
| Total AC Outlets | 10 |
| Outlet Type | NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Recommended Electrical Service | 120V (110–125V) |
| Frequency | 60 Hz |
| Surge Suppression Rating | 1350 Joules |
| UL 1449 Let-Through Rating | 600V |
| Surge Response Time | <1 ns |
| Maximum Surge Current | 35,000A |
| USB Charging Ports | 2 |
| USB Port Type | USB-A Female |
| USB Charging Output | 2.4A / 12W total |
| Charging Amps per Port | 2.4A |
| Light Bars | 2 swivel LED light bars |
| Light Bar Brightness | 1000 lumens each |
| Light Bar Power | 20W each |
| Circuit Breaker | 15A resettable |
| EMI/RFI Filtering | Yes |
| EMI/RFI Filtering Range | 150 kHz–100 MHz |
| Protection Modes | H-N, N-G and H-G |
| AC Power Cord Length | 6 ft. (1.8 m) |
| Cord Type | SJT |
| Wire Gauge | 14 AWG |
| Power Cord Color | Black |
| Housing Material | Plastic |
| Housing Color | Black |
| Outlet Orientation | Single row |
| Transformer Accommodation | Yes |
