Detailed Specifications

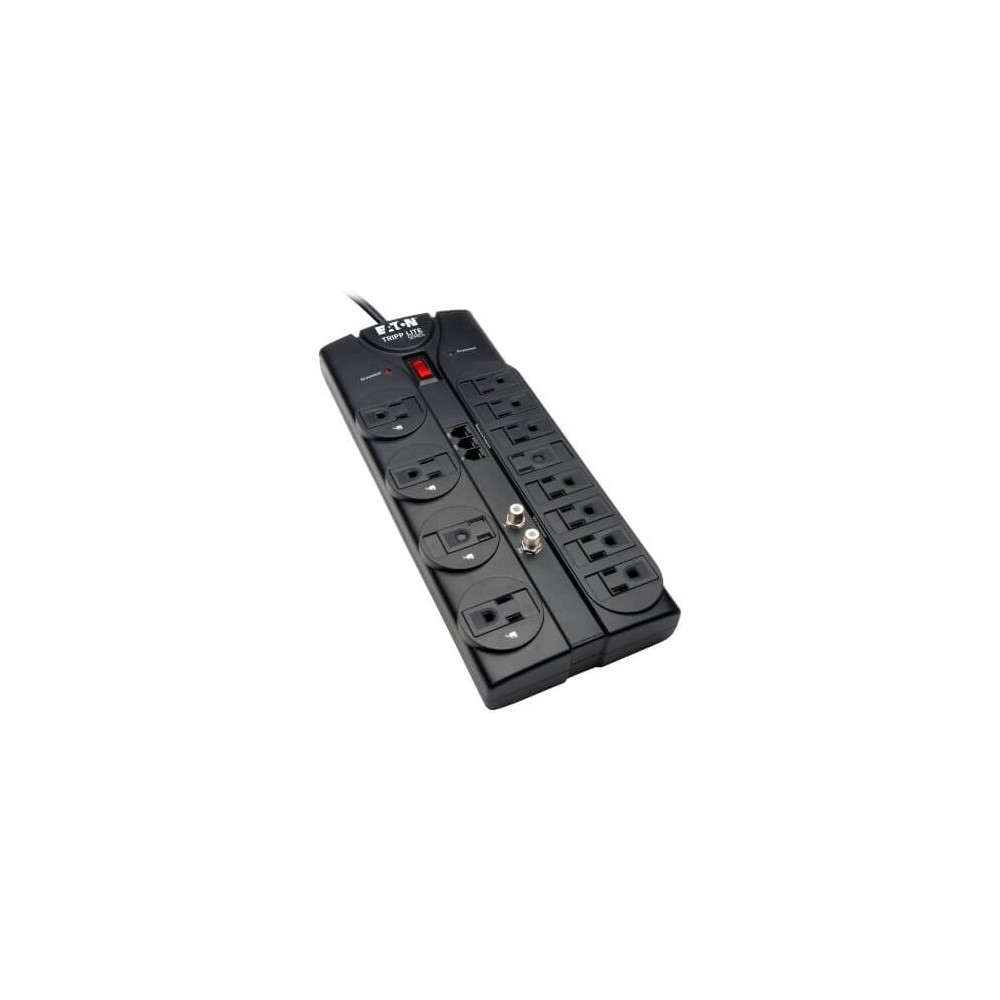

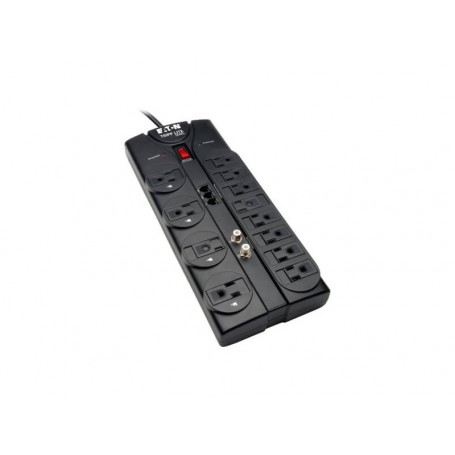

Eaton TLP1208TELTV 12-Outlet Surge Protector with Coax Compatible Tripp Lite
Overview
The Eaton TLP1208TELTV is a Tripp Lite Protect It! 12-outlet surge protector designed to protect computers, home electronics, telecom equipment, and other sensitive devices from power surges and electrical noise. It provides 2880 joules of surge suppression, EMI/RFI filtering, telephone/DSL protection, and 2.2 GHz coaxial protection.
Key Features
- 12 NEMA 5-15R AC outlets
- 2880 joules of surge suppression
- 8-ft power cord
- Right-angle NEMA 5-15P plug
- Telephone/DSL surge protection
- 2.2 GHz coaxial surge protection
- Up to 40 dB EMI/RFI filtering
- 15A resettable circuit breaker
- Automatic shut-off protection
- Diagnostic protection and grounded LEDs
- Four widely spaced outlets for bulky adapters
- Keyhole mounting slots
- 180,000A maximum surge current
- Lifetime limited warranty
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model / Part Number | TLP1208TELTV |
| Product Type | Surge Protector / Power Strip |
| Series | Protect It! |
| Total Outlets | 12 |
| Outlet Type | NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120V AC |
| Frequency | 50/60 Hz |
| Maximum Current | 15A |
| Output Capacity | 1,800W / 15A |
| Cord Length | 8 ft |
| Cord Gauge | 14 AWG SJT |
| Surge Suppression | 2880 joules |
| Maximum Surge Current | 180,000A |
| Response Time | <1 ns |
| EMI/RFI Filtering | Up to 40 dB |
| Telephone/DSL Protection | Yes |
| Coaxial Protection | Yes, 2.2 GHz |
| Circuit Breaker | 15A resettable |
| Automatic Shut-Off | Yes |
