Detailed Specifications

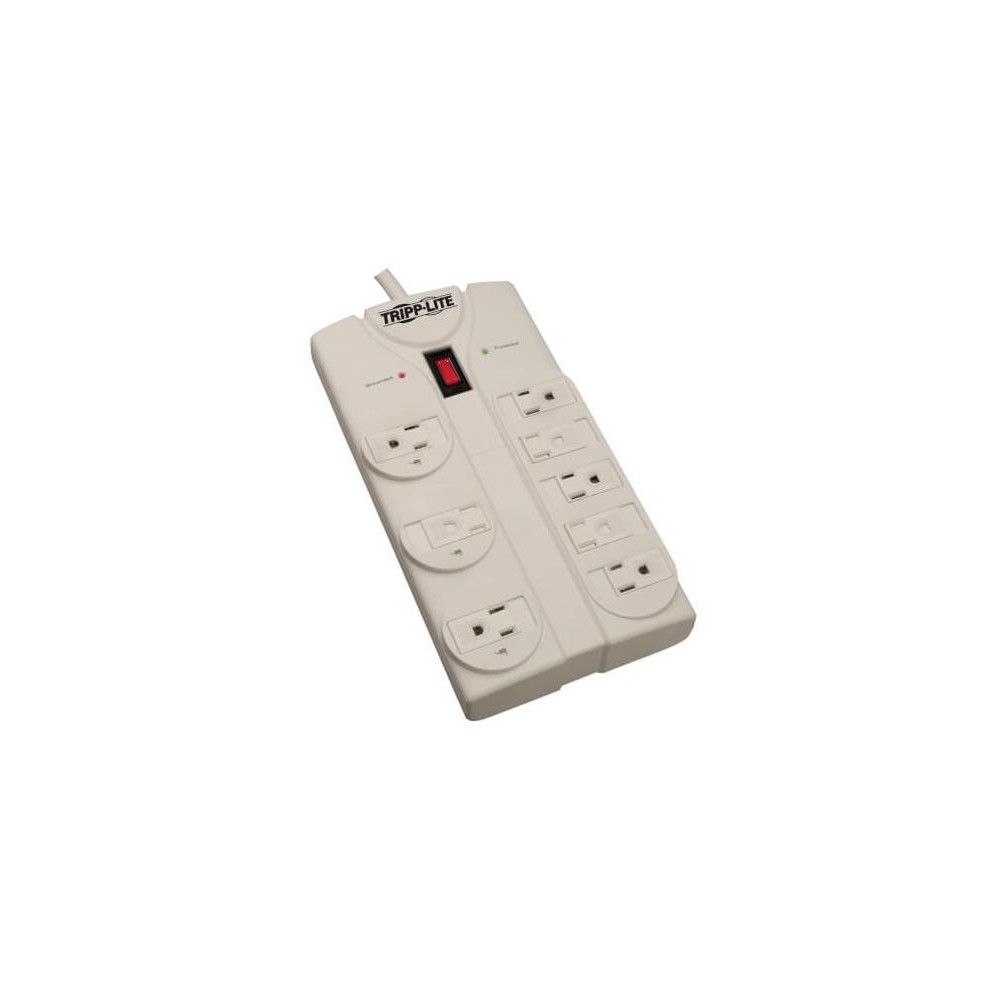

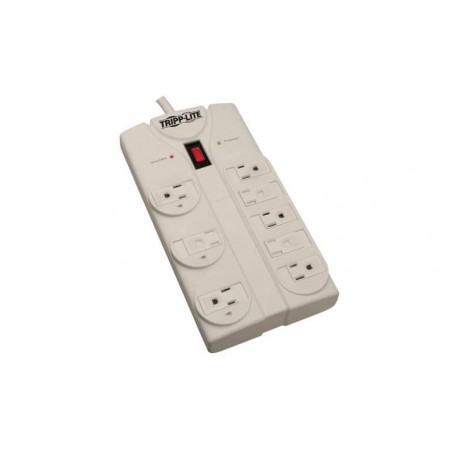

Eaton TLP825 8-Outlet Surge Protector Compatible Tripp Lite
Overview :
The Eaton TLP825 is a Tripp Lite Protect It! 8-outlet surge protector designed to protect computers, routers, telecom equipment, home-theater components and other sensitive electronics from power surges, spikes and line noise.
It provides eight NEMA 5-15R outlets, including three transformer-friendly outlets, with 1440 joules of surge protection and a 25-ft power cord with a right-angle NEMA 5-15P plug. Built-in EMI/RFI filtering, a 15A resettable circuit breaker, diagnostic LEDs and automatic shut-off protection provide additional protection and monitoring.
Key Features :
- 8 NEMA 5-15R outlets
- 1440-joule surge protection
- 25-ft power cord
- Right-angle NEMA 5-15P plug
- 3 transformer-friendly outlets
- 15A resettable circuit breaker
- Built-in diagnostic LEDs
- Automatic shut-off protection
- EMI/RFI filtering up to 40 dB
- Built-in sliding outlet safety covers
- Mounting holes/slots
- Gray housing
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | TLP825 |
| Series | Protect It! |
| Product Type | Surge Protector |
| Total Outlets | 8 |
| Outlet Type | NEMA 5-15R |
| Transformer-Friendly Outlets | 3 |
| Input Plug | NEMA 5-15P |
| Input Plug Style | Right Angle |
| Input Voltage | 120 VAC |
| Recommended Service | 120V (110–125V) |
| Maximum Current | 15A |
| Surge Protection | 1440 Joules |
| Maximum Surge Current | 84,000A |
| Response Time | <1 ns |
| EMI/RFI Filtering | Up to 40 dB |
| Circuit Breaker | 15A resettable |
| Diagnostic LEDs | Yes |
| Automatic Shut-Off | Yes |
| Outlet Safety Covers | Yes |
| Cord Length | 25 ft |
| Cord Gauge | 14 AWG |
| Cord Type | SJT |
| Housing Material | Plastic |
| Housing Color | Gray |
| Mounting | Mounting holes/slots |
| Network Protection | No |
| Telephone/DSL Protection | No |
| Compliance | RoHS |
| Certifications | UL Listed, cUL Listed, CSA C22.2, UL 1449, NOM |
