Detailed Specifications

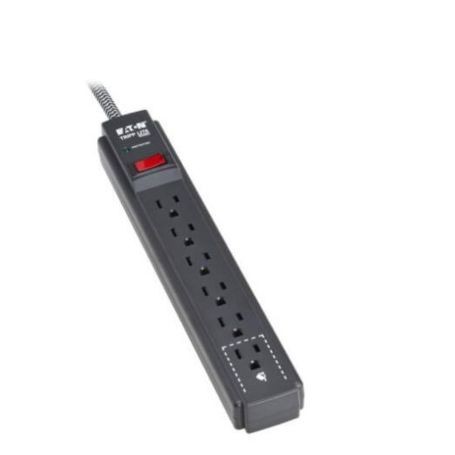

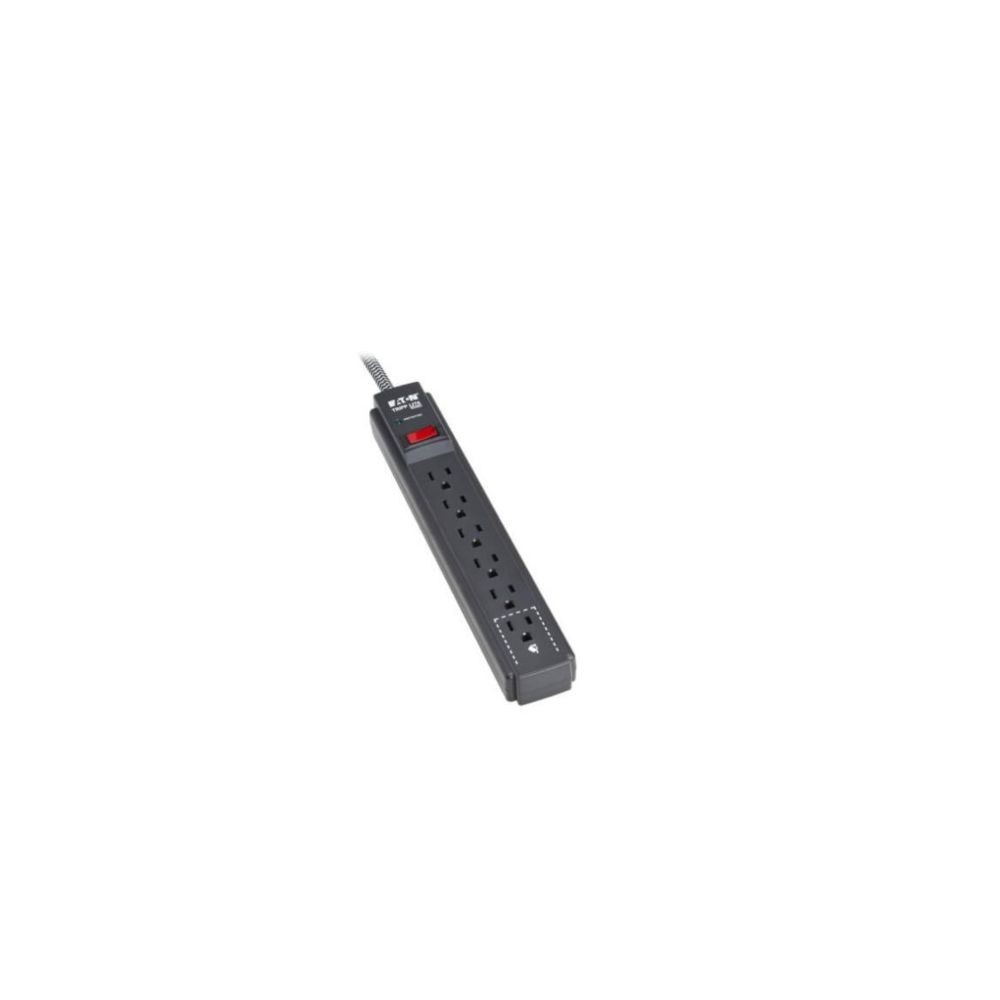

Eaton TLP625DB 6-Outlet Surge Protector 2.5ft Cord Tripp Lite Compatible
Overview :
The Eaton Tripp Lite Series TLP625DB is a compact, heavy-duty 6-outlet AC surge protector engineered to provide multi-device power distribution, transient voltage suppression, and line noise filtering for desktop computers, office workstations, and sensitive electronics. Designed to safeguard hardware from damaging electrical spikes, line noise, and power surges, it maintains operational reliability across Tripp Lite power environments.
Featuring six NEMA 5-15R receptacles, the Eaton Tripp Lite TLP625DB includes one end-mounted transformer-spaced outlet designed to accommodate oversized AC power adapters without blocking adjacent sockets. A short 2.5-foot heavy-duty AC power cord with a space-saving right-angle NEMA 5-15P plug eliminates unnecessary cable clutter on desktop surfaces and behind work desks.
Deployable in administrative desks, retail point-of-sale stations, remote IT hubs, and desktop computing setups compatible with Tripp Lite electrical infrastructure. Includes an illuminated master power switch with an integrated 15A resettable circuit breaker and a diagnostic green LED that confirms active surge protection status. Do NOT deploy in 208V/240V industrial applications or connect continuous electrical loads exceeding 1800 watts.
Key Features :
1080 Joule surge suppression rating guards connected hardware against severe power spikes.
6 NEMA 5-15R outlets including 1 end outlet spaced for bulky transformer plugs.
Compact 2.5-foot power cord with right-angle NEMA 5-15P plug reduces desktop cord clutter in Tripp Lite setups.
Diagnostic green LED confirms active surge protection status.
Integrated 15A resettable circuit breaker guards against thermal and current overloads.
Specifications :
| Brand | Eaton |
| Part Number | TLP625DB |
| Product Type | Surge Suppressor / Power Strip |
| Tripp Lite Compatibility | Fully Compatible with Tripp Lite Workstation & Power Systems |
| Nominal Input Voltage | 120V AC |
| Amperage Rating | 15 Amps |
| Continuous Load Rating | 1800W |
| Frequency Compatibility | 50 / 60 Hz |
| Surge Joule Rating | 1080 Joules |
| Input Plug Type | NEMA 5-15P (Right-Angle) |
| Input Cord Length | 2.5 Feet (0.76 m) |
| Output Receptacles | 6 x NEMA 5-15R (1 Transformer Spaced) |
| Circuit Breaker | 15A Resettable Combo Switch |
| Housing Material | Fire-Retardant ABS Plastic |
| Color | Black |
| Standards Compliance | UL1449 4th Edition, cUL, RoHS |
