Detailed Specifications

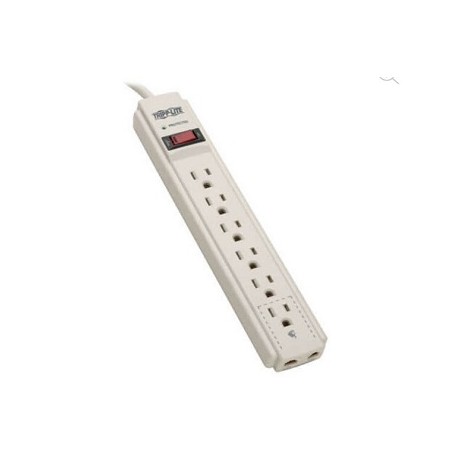

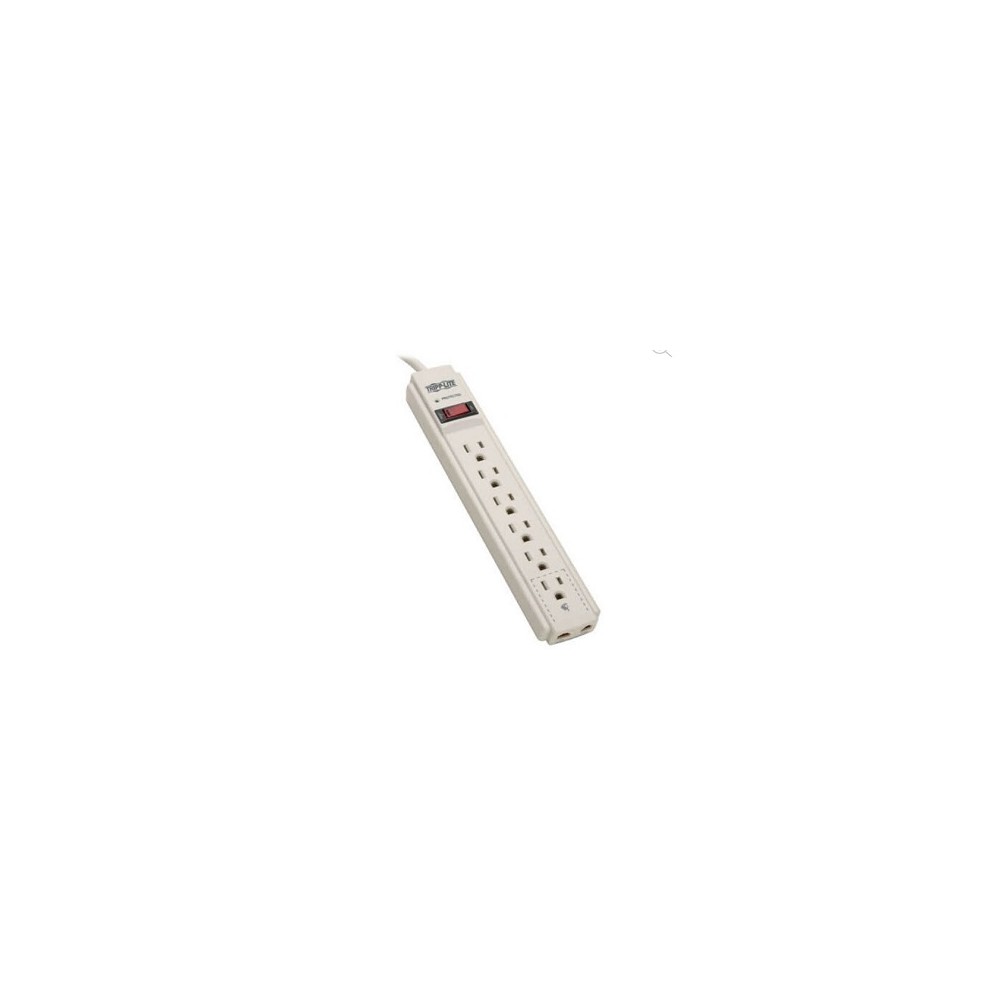

Eaton TLP604TEL 6-Outlet Surge Protector Compatible Tripp Lite
Overview :
The Eaton TLP604TEL is a Tripp Lite Protect It! 6-outlet surge protector designed for computers, workstations, telecom equipment, fax machines, modems and other sensitive electronics. It provides six NEMA 5-15R outlets, a 4-foot power cord, 790 joules of AC surge protection, and built-in telephone/DSL line protection.
The unit includes a 15A resettable circuit breaker, diagnostic LED, EMI/RFI filtering, automatic shutoff, and keyhole mounting tabs for convenient installation. One outlet is designed to accommodate a bulky transformer-style plug.
Key Features :
- 6 NEMA 5-15R AC outlets
- 790-joule surge suppression
- 4 ft. power cord
- NEMA 5-15P input plug
- 120V AC operation
- Built-in 15A resettable circuit breaker
- Telephone/DSL surge protection
- RJ11 protection for modem, fax and telephone equipment
- Diagnostic LED for protection status
- EMI/RFI line-noise filtering
- Automatic shutoff protection
- Keyhole mounting tabs
- One outlet accommodates a bulky transformer plug
- Plastic housing
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | TLP604TEL |
| Product Type | Surge Protector |
| Product Series | Protect It! |
| Total Outlets | 6 |
| Output Receptacles | 6 × NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Maximum Current | 15A |
| Power Handling | 1800 VA |
| Frequency | 50/60 Hz |
| Power Cord Length | 4 ft. (1.22 m) |
| Cord Gauge | 14 AWG |
| Cord Type | SJT |
| Surge Suppression | 790 Joules |
| Response Time | < 1 ns |
| Maximum Surge Current | 35,500 A |
| Circuit Breaker | 15A resettable |
| Telephone/DSL Protection | 1 line |
| EMI/RFI Filtering | Yes |
| Diagnostic LED | Protection present |
| Power Switch | 2-position illuminated On/Off switch |
