Detailed Specifications

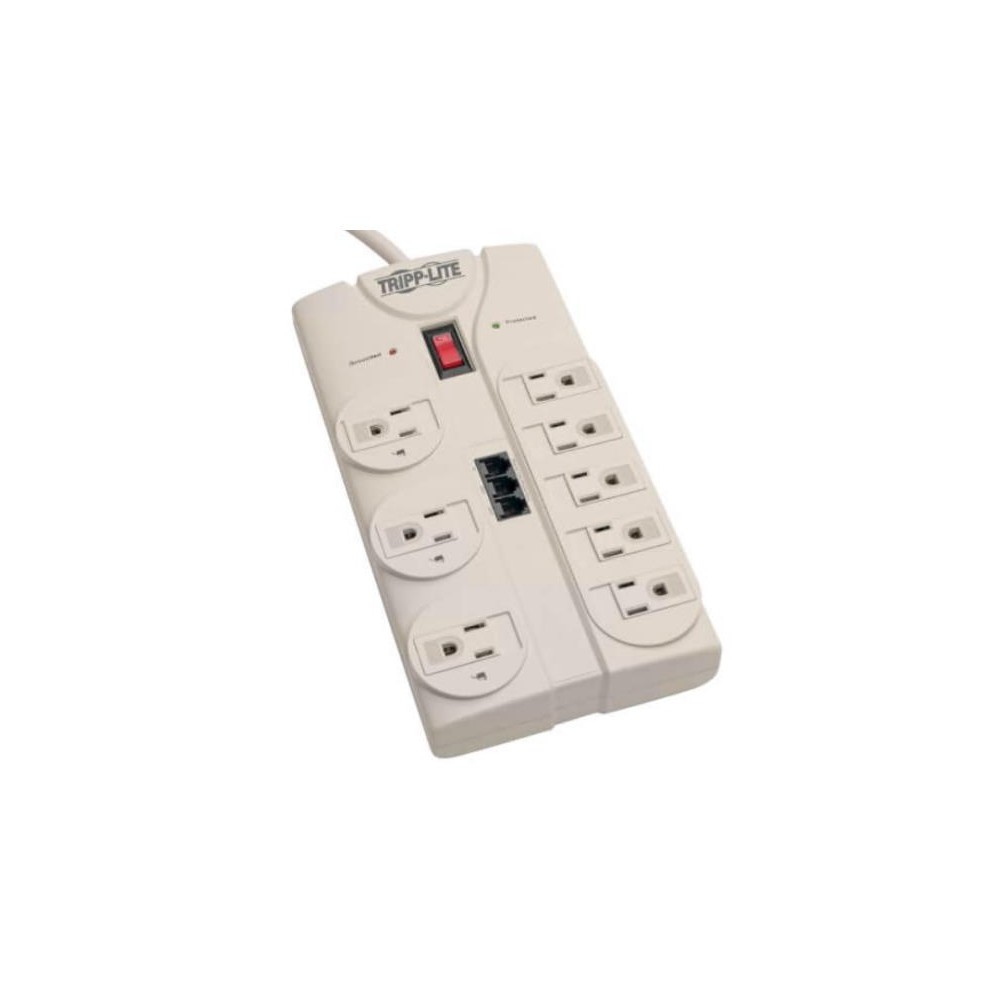

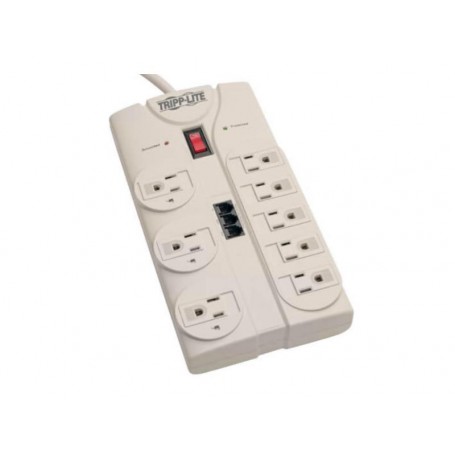

Eaton TLP808TEL 8-Outlet Surge Protector Compatible Tripp Lite
Overview :
The Eaton TLP808TEL is a Tripp Lite Protect It! surge protector designed for computers, office equipment, networking devices and other sensitive electronics. It provides 8 NEMA 5-15R outlets, an 8-foot power cord with right-angle NEMA 5-15P plug, and 2160 joules of surge suppression. It also includes built-in RJ11 telephone/modem/fax protection.
The unit features a 15A resettable circuit breaker, diagnostic LEDs, EMI/RFI noise filtering, sliding outlet safety covers and keyhole mounting tabs. The outlet arrangement also accommodates bulky transformer-style plugs.
Key Features :
- 8 NEMA 5-15R AC outlets
- 2160-joule surge suppression
- 8 ft. power cord
- Right-angle NEMA 5-15P input plug
- Built-in RJ11 telephone/modem/fax protection
- 15A resettable circuit breaker
- Diagnostic LEDs for protection and grounding status
- EMI/RFI noise filtering up to 40 dB
- Built-in sliding outlet safety covers
- Accommodates transformer-style plugs
- Keyhole mounting tabs
- Automatic shutoff protection
- Suitable for home and office applications
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | TLP808TEL |
| Product Type | Surge Protector |
| Product Series | Protect It! |
| Total Outlets | 8 |
| Output Receptacles | 8 × NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Maximum Current | 15A |
| Output Power | 1800W |
| Frequency | 50/60 Hz |
| Power Cord Length | 8 ft. (2.44 m) |
| Cord Gauge | 14 AWG |
| Cord Type | SJT |
| Surge Suppression | 2160 Joules |
| Response Time | < 1 ns |
| Maximum Surge Current | 144,000 A |
| Circuit Breaker | 15A resettable |
| Telephone Protection | 1 input / 2 output RJ11 |
| EMI/RFI Filtering | Up to 40 dB |
| Diagnostic LEDs | Protection present and grounded |
| Power Switch | Illuminated On/Off switch |
| Outlet Safety Covers | Built-in sliding covers |
| Mounting | Keyhole mounting tabs |
| Housing Material | Plastic |
| Housing Color | Light gray |
