Detailed Specifications

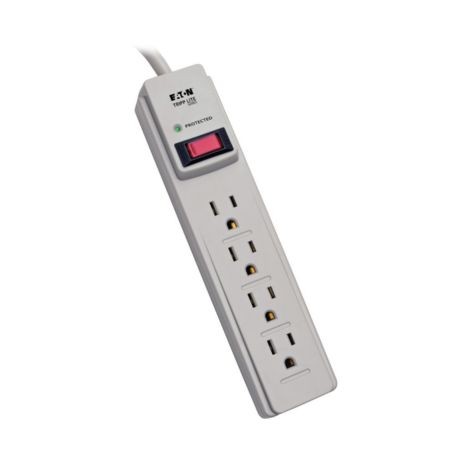

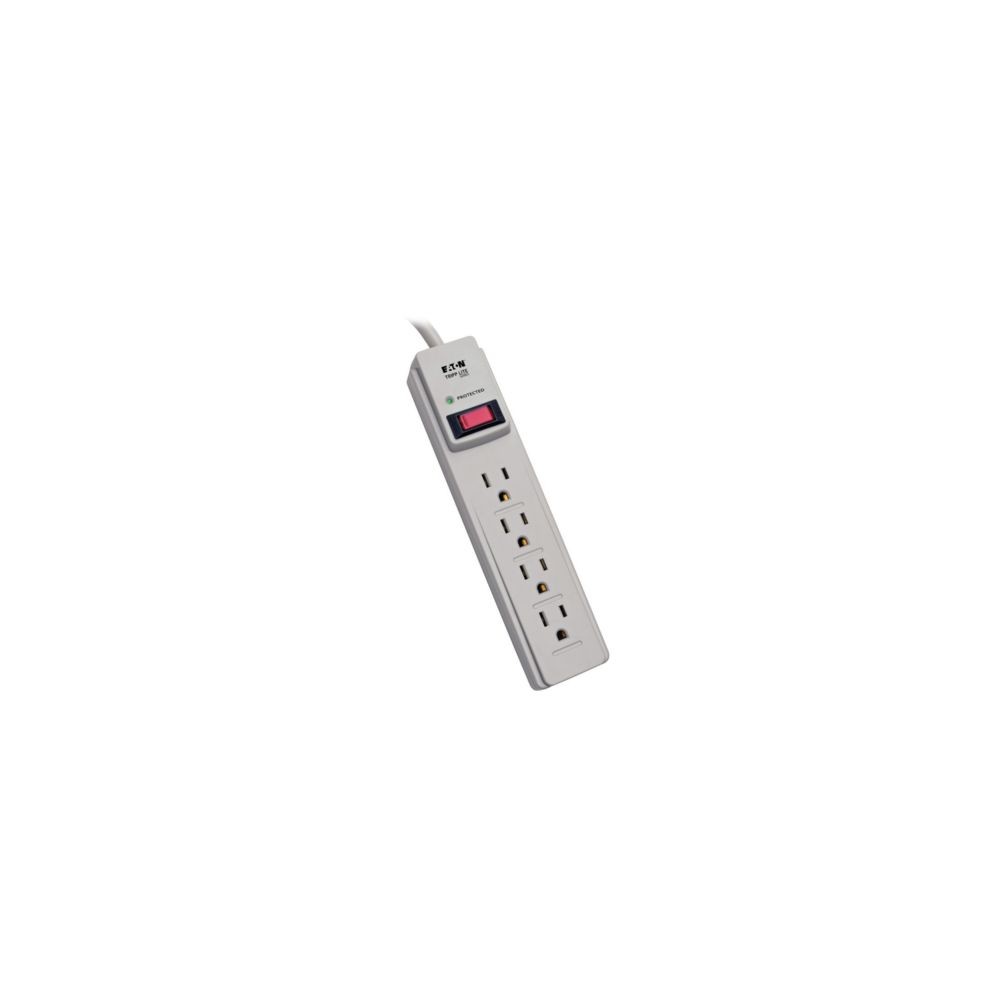

Eaton TLP404 – Surge Protector
Overview :
The Eaton Tripp Lite Series TLP404 is a compact 4-outlet AC surge protector designed to safeguard sensitive electronics from voltage spikes, power surges, and line noise. Engineered for desktop workstations, telecom equipment, and edge deployments, it provides essential protection against electrical transients that degrade or damage connected hardware.
Featuring a 600-joule surge suppression rating, diagnostic LED status indicator, and integrated EMI/RFI noise filtering, the TLP404 delivers clean line power while shielding equipment from high-voltage transients. Its compact housing includes a designated transformer-spaced outlet to accommodate large power adapters without blocking adjacent receptacles.
Deployable in office workstations, network closets, home offices, and point-of-sale environments. Connects directly to standard 120V NEMA 5-15R wall outlets via its integrated 4-foot cord. Do NOT use in outdoor environments, wet locations, or with high-draw medical and industrial loads requiring higher joule ratings or specialized isolation.
Key Features :
600-joule AC suppression rating absorbs transient surges and line spikes.
4 NEMA 5-15R outlets accommodate standard equipment plugs and adapters.
Diagnostic LED confirms active surge protection status at a glance.
Integrated 15A circuit breaker protects against dangerous line overloads.
EMI/RFI noise filtering eliminates line interference for optimal operation.
Specifications :
| Parameter | Specification |
| Brand | Eaton |
| Part Number | TLP404 |
| Product Type | Surge Protector |
| AC Suppression Joule Rating | 600 Joules |
| Input Plug Type | NEMA 5-15P |
| Output Receptacles | 4x NEMA 5-15R |
| Nominal Input Voltage | 120 VAC (50/60 Hz) |
| Circuit Breaker / Load Rating | 15 Amp |
| Input Cord Length | 4 ft. (1.22 m) |
| Key Features | Diagnostic protection LED, EMI/RFI filtering |
| Housing Material | Heavy-duty plastic |
| UL Standards Compliance | UL1449, UL1363, RoHS |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 20% to 85% RH (non-condensing) |
