Detailed Specifications

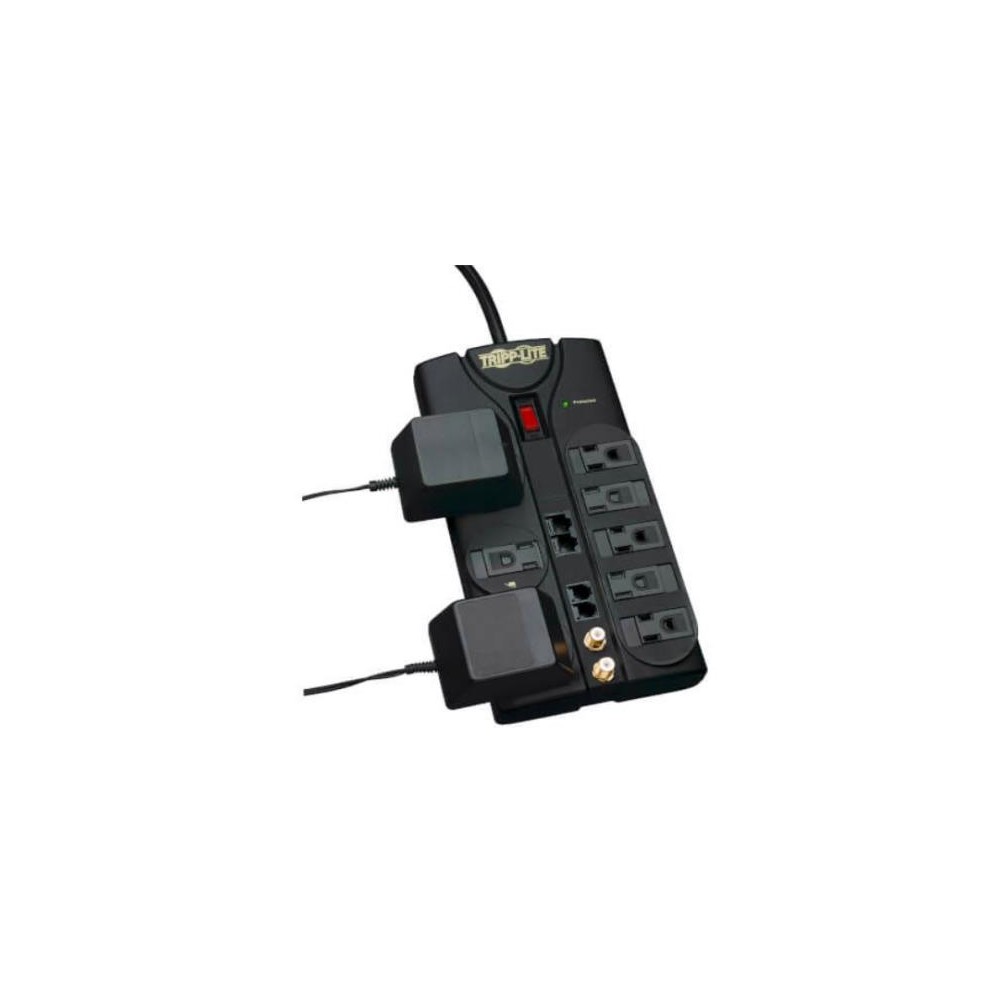

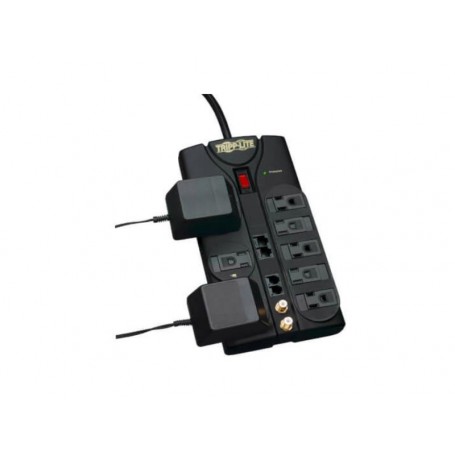

Eaton TLP810NET 8-Outlet Surge Protector Compatible Tripp Lite
Overview :
The Eaton TLP810NET is a Protect It! surge protector designed for computers, network equipment, modems, workstations, A/V equipment and other sensitive electronics. It provides 8 NEMA 5-15R outlets with 3240 joules of AC surge suppression and a 10 ft. power cord.
Built-in RJ45 Ethernet, RJ11 telephone/DSL and Type F coaxial protection helps protect connected communications equipment from line surges. The coax protection supports broadband signals up to 2.2 GHz, while EMI/RFI filtering reduces electrical noise by up to 40 dB.
Key Features :
- 8 × NEMA 5-15R AC outlets
- 3240J AC surge suppression
- 120V AC / 15A capacity
- 10 ft. 14 AWG SJT power cord
- Right-angle NEMA 5-15P input plug
- RJ45 Ethernet surge protection up to 100 Mbps
- 2-line RJ11 telephone/DSL protection
- Type F coax protection with 2.2 GHz bandwidth
- Up to 40 dB EMI/RFI filtering
- <1 ns surge response time
- 15A circuit breaker and illuminated power switch
- Automatic shutoff when suppression components are compromised
- Diagnostic LEDs for protection and ground status
- Audible replacement alarm
- Keyhole slots for wall mounting
- Integrated outlet safety covers
- $250,000 Ultimate Lifetime connected-equipment insurance in applicable regions
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model | TLP810NET |
| Product Type | Surge Protector |
| AC Outlets | 8 × NEMA 5-15R |
| Input Plug | NEMA 5-15P, right-angle |
| Input Voltage | 120V AC |
| Maximum Current | 15A |
| Frequency | 50/60Hz |
| Output Capacity | 1800W |
| Surge Rating | 3240J |
| Maximum Surge Current | 216kA |
| Response Time | <1 ns |
| EMI/RFI Filtering | Up to 40 dB |
| Ethernet Protection | RJ45, 100 Mbps Fast Ethernet |
| Telephone Protection | 2-line RJ11 |
| Coax Protection | 1 line, Type F, 2.2 GHz |
| Power Cord | 10 ft., 14 AWG SJT |
| Circuit Breaker | 15A |
| Housing | Plastic, black |
| Mounting | Keyhole slots |
