Detailed Specifications

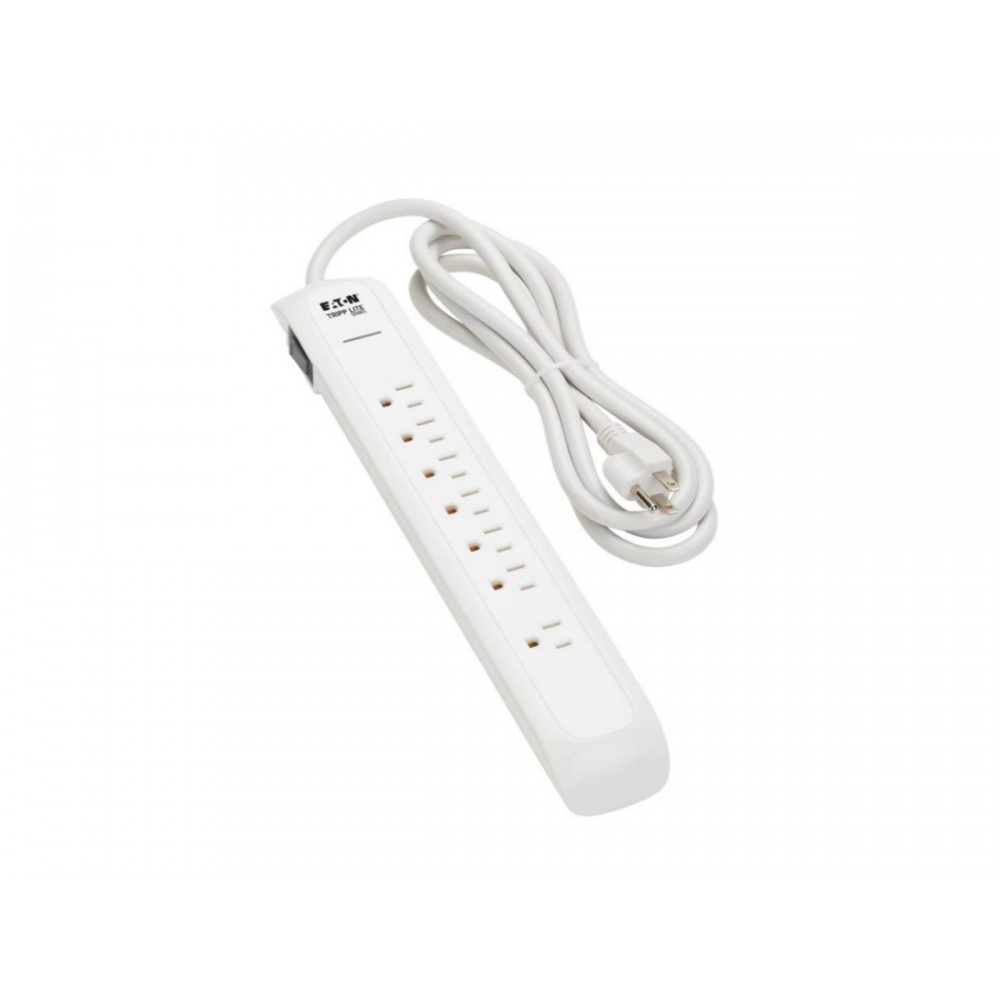

Eaton TLP76 - 7-Outlet Surge Protector Compatible Tripp Lite
Overview :
The Eaton TLP76 is a TRIPP LITE by Eaton Protect It! 7-outlet surge protector designed to protect computers, networking equipment, office electronics, laboratory equipment, home-theater components and other connected AC equipment from power surges, spikes and line noise. Eaton specifies a 1500-joule surge suppression rating and a 6-foot power cord with a NEMA 5-15P plug.
The unit provides seven NEMA 5-15R outlets and supports 120 VAC, 50/60 Hz operation. Its integrated 15A resettable circuit breaker, illuminated power switch and diagnostic LED provide overload protection, power control and confirmation that surge protection is present.
The TLP76 also provides EMI/RFI filtering and protection across normal-mode and common-mode line conditions. Rear keyhole slots allow optional wall or desktop mounting.
Key Features :
- 7 NEMA 5-15R AC outlets
- 1500-joule surge suppression
- 120 VAC operation
- 6 ft. power cord with NEMA 5-15P plug
- 15A resettable circuit breaker
- Illuminated on/off switch
- Diagnostic protection LED
- EMI/RFI noise filtering
- Full normal-mode and common-mode surge protection
- Rear keyhole slots for wall or desktop mounting
- Fire-retardant ABS plastic housing
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Product Series | TRIPP LITE by Eaton Protect It! |
| Part Number | TLP76 |
| Product Type | Surge Protector |
| Total Outlets | 7 |
| Output Receptacles | 7 × NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Nominal Input Voltage | 120 VAC |
| Recommended Electrical Service | 120V (110-125V) |
| Frequency | 50/60 Hz |
| Circuit Breaker | 15A resettable |
| Surge Suppression Rating | 1500 joules |
| Maximum Surge Amps | 48,000A |
| Response Time | <1 ns |
| UL1449 Let-Through Rating | 500V |
| Protection Modes | H-N, N-G and H-G |
| EMI/RFI Filtering | Yes |
| Input Cord Length | 6 ft. (1.83 m) |
| Input Cord Gauge | 14 AWG, SJT |
| Outlet Orientation | Single row |
| Transformer Accommodation | Yes |
