Detailed Specifications

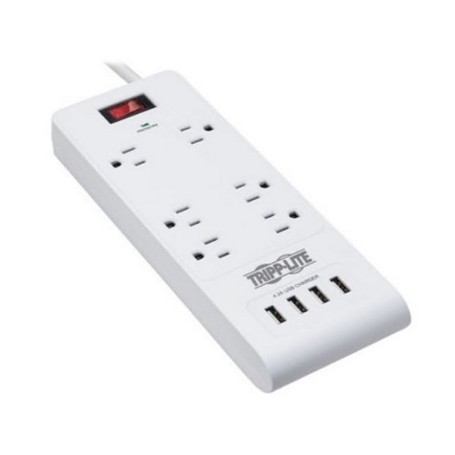

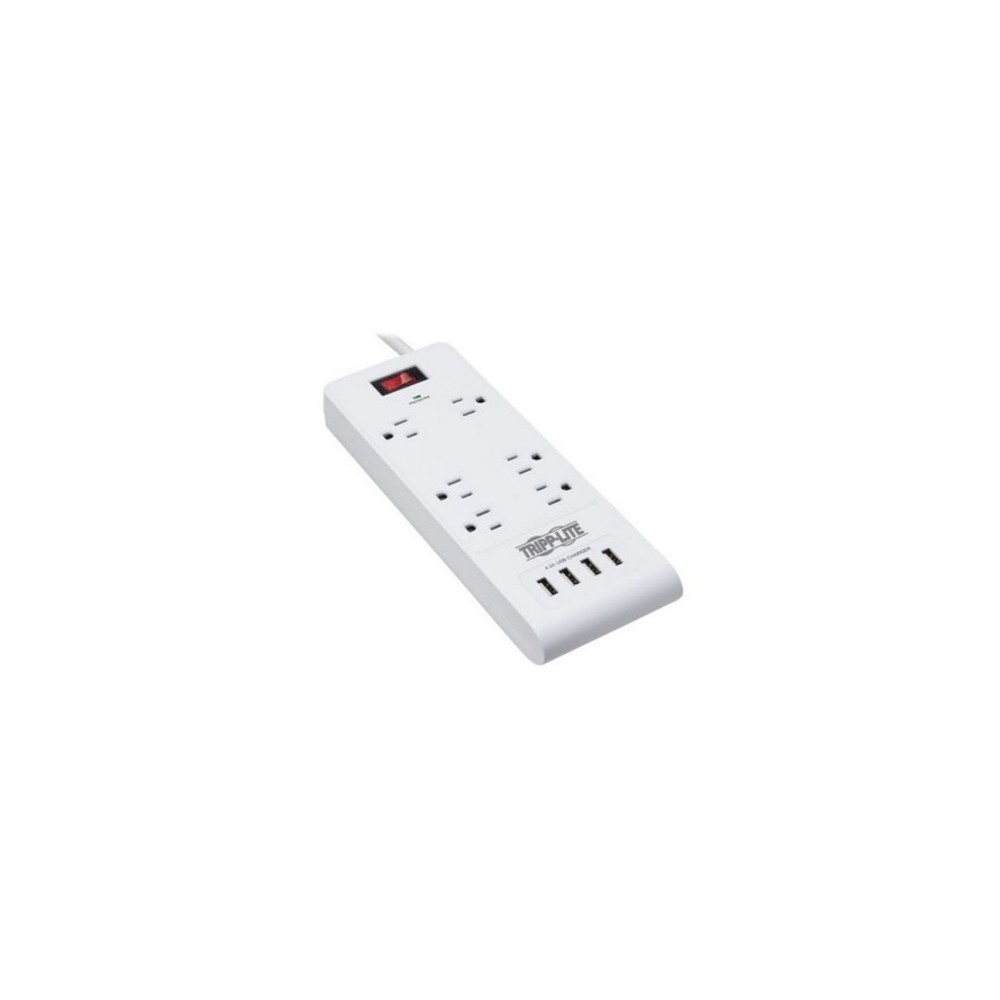

Eaton TLP64USBRA15 6-Outlet Surge Protector with 4 USB Ports 15 ft Cord Compatible Tripp Lite
Overview :
The Eaton TLP64USBRA15 is a 6-outlet surge protector with four USB-A charging ports, designed to protect computers, peripherals, home-office equipment and other sensitive electronics from AC power surges, spikes and line noise. The unit provides 900 joules of surge suppression and uses a 15 ft. power cord with a right-angle NEMA 5-15P plug.
The surge protector provides six NEMA 5-15R AC outlets, including two outlets designed to accommodate bulky transformers. Four USB-A charging ports share 4.2A, allowing simultaneous charging of compatible mobile devices without occupying AC outlets.
The unit includes EMI/RFI filtering, a built-in green diagnostic LED, a resettable 15A circuit breaker and mounting holes or slots for flexible placement on a bench, floor or wall.
Key Features :
- 6 NEMA 5-15R AC outlets
- 4 USB-A charging ports
- USB ports share 4.2A
- 900-joule surge suppression
- 15 ft. (4.57 m) power cord
- Right-angle NEMA 5-15P input plug
- 120 VAC nominal input
- 15A resettable circuit breaker
- EMI/RFI noise filtering
- Green LED protection indicator
- Two outlets accommodate bulky transformers
- Mounting holes or slots
- White housing
- UL Listed and RoHS compliant
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | TLP64USBRA15 |
| Product Type | Surge Protector |
| Total Outlets | 6 |
| AC Outlet Type | NEMA 5-15R |
| USB Ports | 4 |
| USB Port Type | USB-A female |
| USB Charging | 4.2A shared |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Recommended Electrical Service | 120V (110-125V) |
| Maximum Current | 15A |
| Surge Suppression | 900 joules |
| Maximum Surge Current | 35,500A |
| Response Time | <1 ns |
| Circuit Breaker | 15A resettable |
| EMI/RFI Filtering | Yes |
| Cord Length | 15 ft. (4.57 m) |
| Cord Gauge | 14 AWG |
| Cord Type | SJT |
| Cord Plug Style | Right-angle |
| Housing Material | Plastic |
| Housing Color | White / Light Gray |
| Mounting | Holes or slots |
| Application | Computers, peripherals, home-office and electronic equipment |
| Compliance | FCC Part 68, RoHS |
| Certifications | UL 1449, UL Listed, UL 497A, cUL Listed, NOM, CSA |
