Detailed Specifications

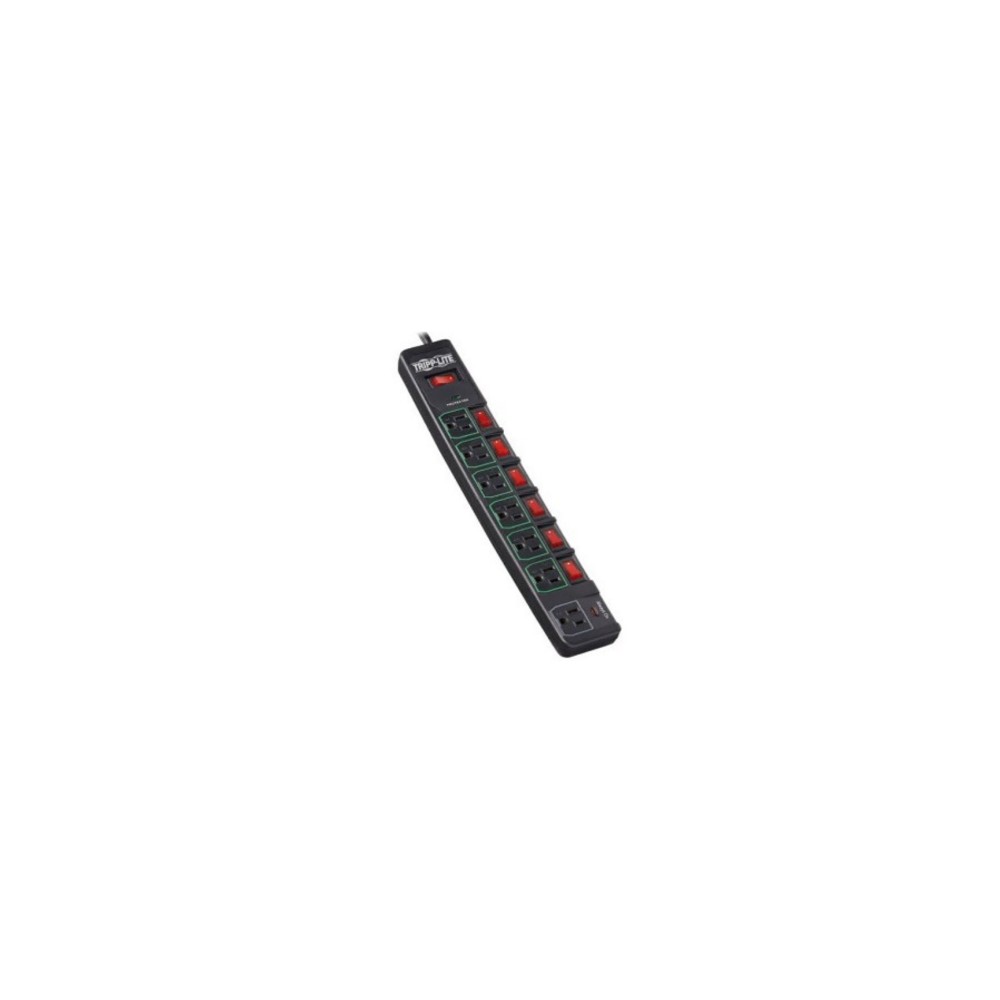

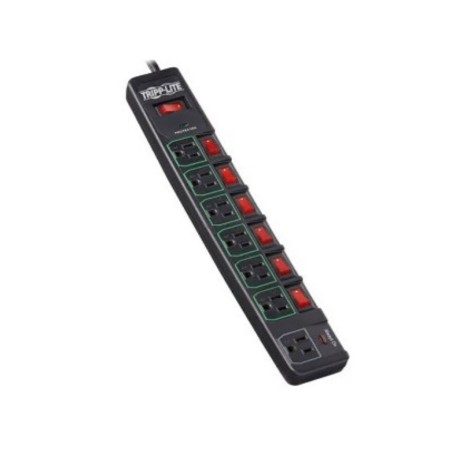

Eaton TLP76MSGB 7-Outlet ECO Surge Protector Compatible Tripp Lite
Overview :
The Eaton TLP76MSGB is a 7-outlet ECO-Surge surge protector with a 6 ft power cord, 1080-joule surge protection, and individually controlled outlets. Eaton is the manufacturer/brand, while Tripp Lite is the compatible brand. Eaton specifies the unit for 120V AC service with a total output capacity of 1800W.
Six outlets feature individual illuminated switches, while one outlet remains always on. The unit also provides EMI/RFI filtering up to 40 dB, automatic shutoff, diagnostic LEDs, and a resettable circuit breaker.
Key Features :
- 7 NEMA 5-15R AC outlets
- 6 individually controlled outlets
- 1 always-on outlet
- 1080-joule surge protection
- 6 ft AC power cord
- 120V AC operation
- 1800W output capacity
- EMI/RFI filtering up to 40 dB
- Automatic shutoff
- Diagnostic protection LED
- Resettable circuit breaker
- Right-angle outlets
- Black housing
- Keyhole mounting slots
- UL 1449 and UL 1363 certified
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | TLP76MSGB |
| Product Type | ECO-Surge Surge Protector |
| Total Outlets | 7 |
| Outlet Type | NEMA 5-15R |
| Individually Controlled Outlets | 6 |
| Always-On Outlet | 1 |
| Input Voltage | 120V AC |
| Recommended Service | 120V (110-125V) |
| Frequency | 60 Hz |
| Input Plug | NEMA 5-15P |
| Power Cord Length | 6 ft (1.83 m) |
| Cord Gauge | 14 AWG |
| Cord Type | SJT |
| Surge Protection | 1080 J |
| Maximum Surge Current | 72,000 A |
| Response Time | <1 ns |
| UL 1449 Let-Through Rating | 400V |
| EMI/RFI Filtering | Up to 40 dB |
| Output Capacity | 1800W / 120 VA |
| Circuit Breaker | Resettable |
| Protection Modes | H-N, N-G, H-G |
| Housing Material | Plastic |
| Housing Color | Black |
| Receptacle Color | Black |
| Mounting | Keyhole slots |
| Compliance | UL 1449, UL 1363, CSA, NOM, RoHS |
