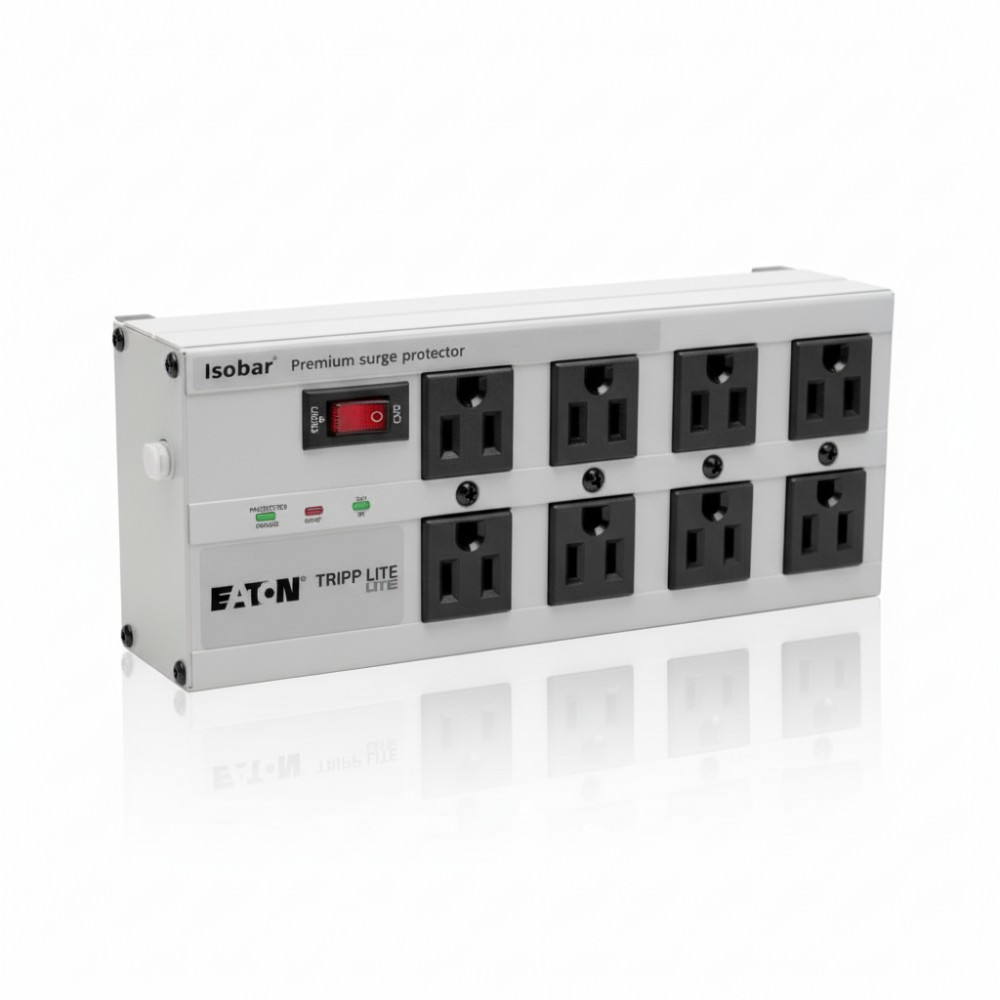

Eaton ISOBAR825ULTRA 8-Outlet Surge Protector 3840 J

Overview :

The Eaton ISOBAR825ULTRA is a premium surge protector strip designed to defend sensitive electronics and networking equipment from transient voltage events and electrical noise on 120 V AC lines. It is deployed by IT engineers, AV technicians, and facilities teams to provide high-density, locally accessible surge suppression for workstations, telecom gear, retail POS systems, and general office electronics.

This unit features eight widely spaced NEMA 5-15R receptacles arranged in isolated filter banks to minimize interaction between connected loads and help accommodate bulky power adapters without blocking adjacent outlets. Surge suppression is rated at 3840 joules and approximately 97,000 amps of peak surge current handling, with full normal mode (H-N) and common-mode (N-G/H-G) protection. Diagnostic LEDs on the housing indicate power status, protection presence, and line faults.

The ISOBAR825ULTRA is typically deployed in desktop, under-desk, or wall-mount positions in office and light commercial settings. Its extra-long 25 ft AC power cord with a right-angle NEMA 5-15P plug permits flexible placement relative to fixed wall outlets, while integrated mounting keyholes support secure installation on walls or furniture.

From an integration perspective, this surge protector interfaces directly with standard North American 120 V single-phase infrastructure and is not a UPS; it provides surge suppression only and does not include battery backup or voltage regulation. The all-metal housing and 12 A resettable circuit breaker provide rugged mechanical protection and overload protection.

A practical deployment example includes placing the ISOBAR825ULTRA behind a data entry workstation or network closet shelf to protect a multi-device setup of PCs, monitors, VoIP phones, and attached peripherals from utility-side spikes caused by HVAC cycling or nearby heavy equipment switching. Its isolated filter banks help maintain performance and reduce EMI/RFI-induced errors.

This unit should not be used as a primary power distribution device in rack infrastructure, nor should it be relied on for power conditioning or backup during outages. Where surge protection is required at panel level, Type 2 or Type 1 surge protective devices installed by qualified electricians are more appropriate.

Key Features

• 3840 joule network-grade surge suppression capability
• 8 widely spaced NEMA 5-15R outlets in filter banks
• 25 ft AC cord with right-angle NEMA 5-15P plug
• Metal housing with diagnostic LEDs and reset breaker
• Full normal and common-mode surge protection
