Detailed Specifications

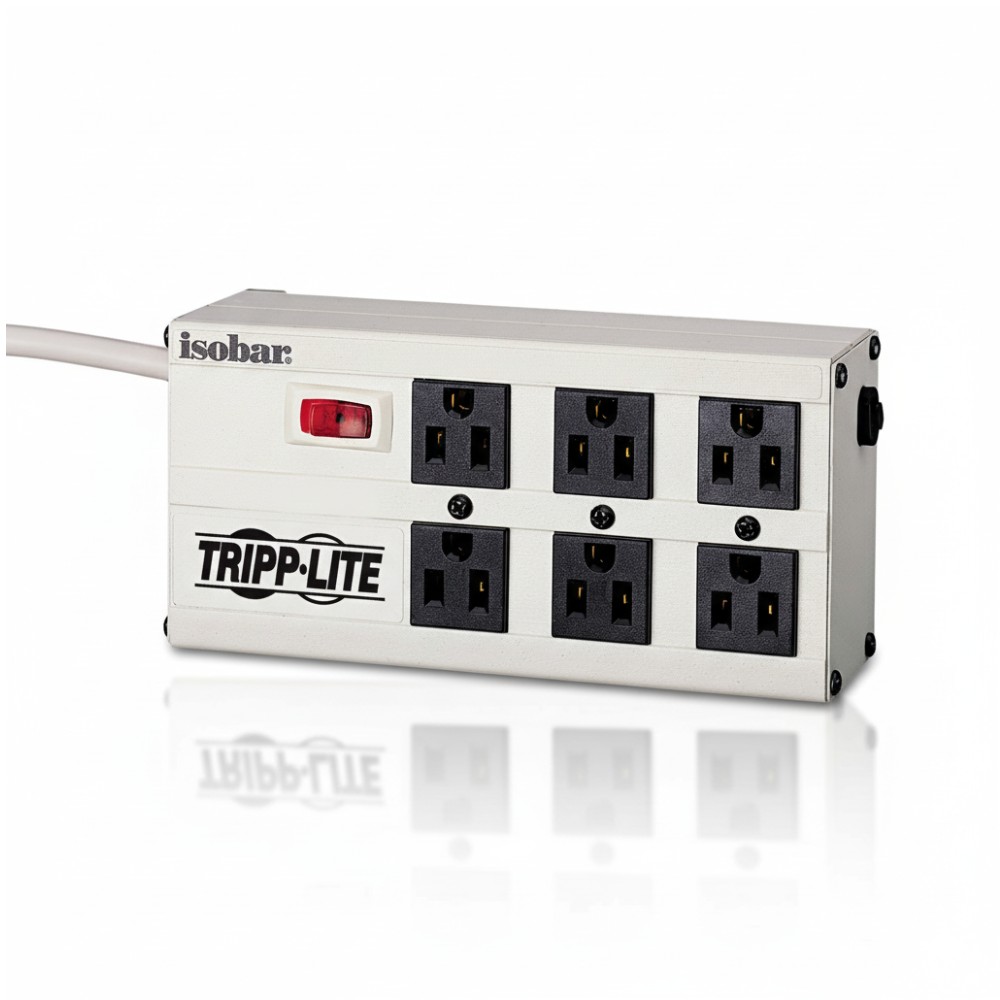

Eaton Tripp Lite ISOBAR6 - 6-Outlet Surge Protector
Overview :
The ISOBAR6 is a rack/work-bench grade surge suppressor designed for IT, telecom and AV engineers needing consolidated protection of multiple devices. It incorporates six NEMA 5-15R outlets in an all-metal housing and delivers a 3,330 joule (approx) energy absorption rating to protect connected equipment from high-energy surges. It installs at the edge of data-centres, in networking closets or on tech benches and is suited for branch, campus, data-floor or edge racks. It integrates with standard power circuits (120 VAC) and supports direct wall or desk mounting using key-hole slots.
Key Features :
Six widely spaced NEMA 5-15R outlets in three isolated filter banks (40-80 dB noise filtration)
Surge suppression rated at approx 3,330 J and up to ~97,000 A surge current capacity
Resettable 12 A circuit breaker plus diagnostic LEDs for "power", "protection", and "line fault" status
Metal housing with 6 ft (1.8 m) right-angle NEMA 5-15P input cord for flush placement
Specifications
| Spec | Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | ISOBAR6 |
| Product Type | Surge Protector / Surge Suppressor Strip |
| Number of Outlets | 6 × NEMA 5-15R |
| Input Plug Type | NEMA 5-15P right-angle |
| Input Nominal Voltage | 120 VAC |
| Surge Energy Rating | 3,330 J (approx) |
| Surge Current Rating | ~97,000 A (36,000 NM / 61,000 CM) |
| Circuit Breaker Rating | 12 A resettable |
| Cord Length | 6 ft (1.8 m) |
| Housing Material | Metal |
| Protection Modes | Full normal-mode (H-N) & common-mode (N-G/H-G) |
| Noise Filtering | Isolated filter banks (3) for EMI/RFI suppression |
