Tripp Lite TLP606B - 6-Outlet Surge Protector 790 J
Overview
The Tripp Lite TLP606B is a 6-outlet AC surge protector designed to protect connected electronics from transient over-voltages and line noise on 120 V mains circuits. It is deployed by IT, facilities, and desktop environment managers to defend workstations, network peripherals, and small office equipment from damaging spikes and electromagnetic interference. It addresses the need for basic line surge protection where a dedicated UPS is not required.
The unit is rated to absorb approximately 790 joules of surge energy and provides noise filtering to mitigate EMI/RFI that can disrupt sensitive electronics. A built-in 15 A resettable circuit breaker protects against overload conditions, and a diagnostic LED indicates active surge protection status.

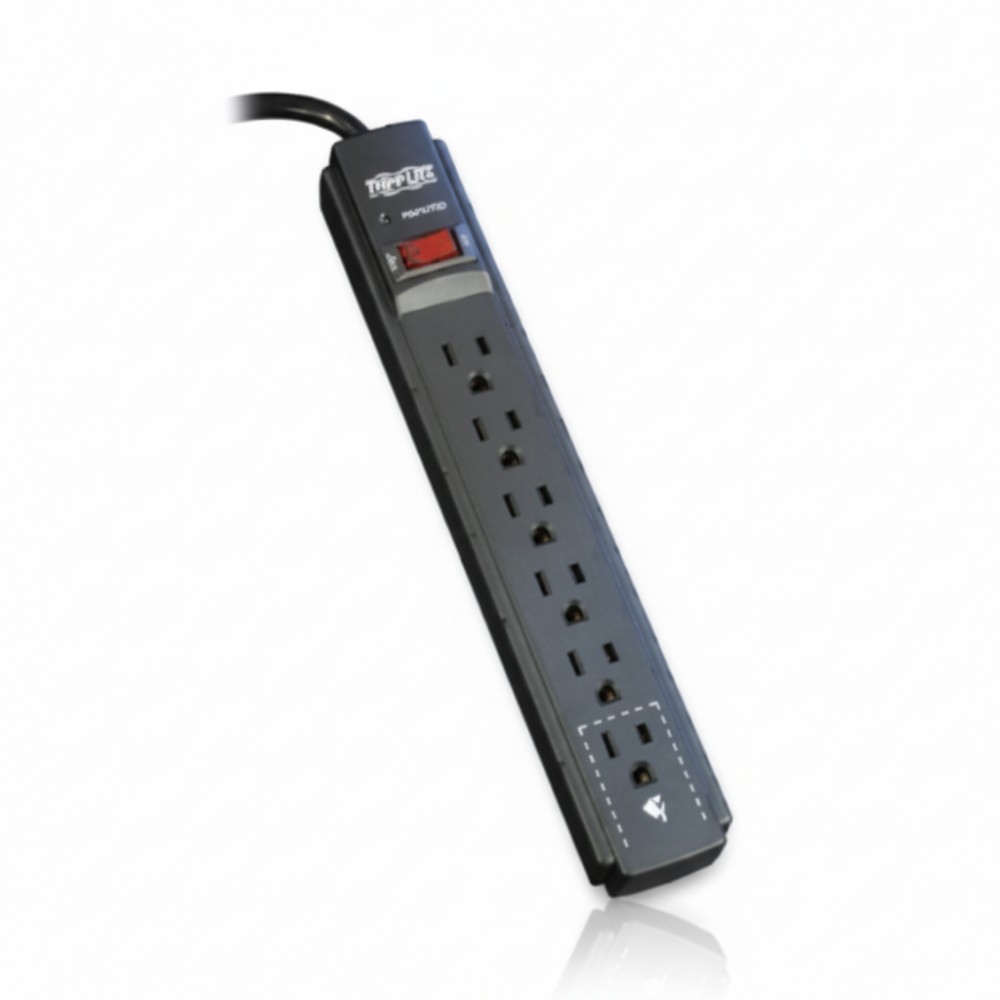

The TLP606B includes six NEMA 5-15R AC outlets in a single-row strip form factor, with at least one outlet spaced to accept bulky transformer-style plugs without blocking adjacent receptacles. Its six-foot power cord with NEMA 5-15P plug accommodates typical workstation layouts.
Installation is straightforward: the strip can rest on a work surface or be mounted via keyhole slots on its base to a wall or under-desk surface. Its black plastic housing is sized for desktop, small office, or network closet use.
In practical deployment, the TLP606B is paired with desktops, printers, scanners, routers, and other AC-powered devices that benefit from surge suppression but do not require UPS-level backup. It is not intended for direct connection to critical data center equipment or high-power industrial loads where more robust surge management or UPS protection is mandated.
This device does not provide network (Ethernet/RJ-45) surge protection, UPS backup, or power conditioning beyond EMI/RFI filtration and basic clamping of transient spikes.
Key Features
• 790 J AC surge energy absorption rating
• Six NEMA 5-15R outlets with transformer spacing
• 6 ft (≈ 1.8 m) power cord with NEMA 5-15P plug
• 15 A resettable circuit breaker overload protection
• Diagnostic LED confirms active protection status
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite (Eaton) |
| Part Number | TLP606B |
| Product Type | Surge Protector Power Strip |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Maximum Line Current | 15 A |
| Power Handling | 1800 VA |
| Surge Energy Rating | ~790 J |
| EMI/RFI Filtering | Yes |
| Outlets | 6 × NEMA 5-15R |
| Input Plug Type | NEMA 5-15P |
| Cord Length | 6 ft (≈ 1.8 m) |
| Diagnostic Indicator | Protection status LED |
| Circuit Protection | 15 A resettable breaker |
| Mounting | Keyhole slots for wall/desk |
| Housing Material | Plastic |
| Operating Temp. | Standard indoor ambient |
| Warranty | Lifetime limited $20,000 connected equipment insurance (U.S./Canada/P.R.) |
