APC PNETR6 Surge Module for CAT6/CAT5e Network Line View larger

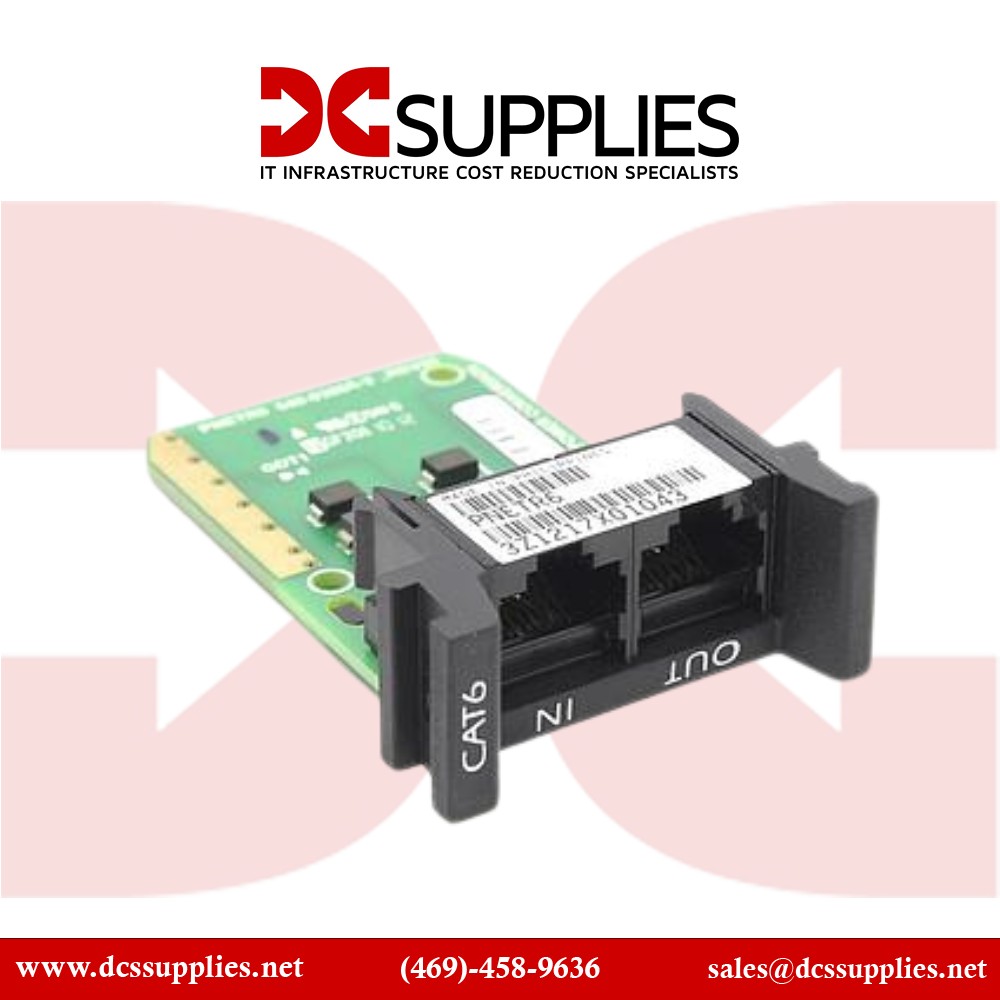

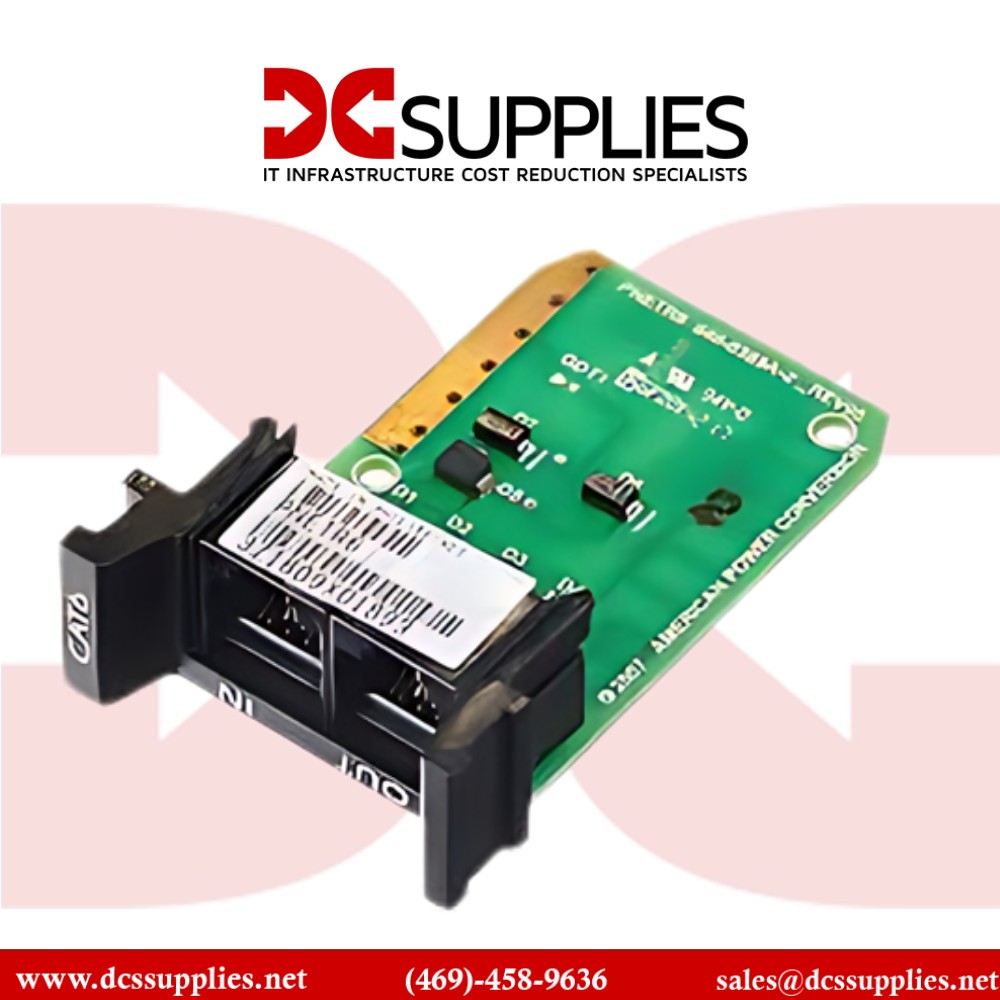

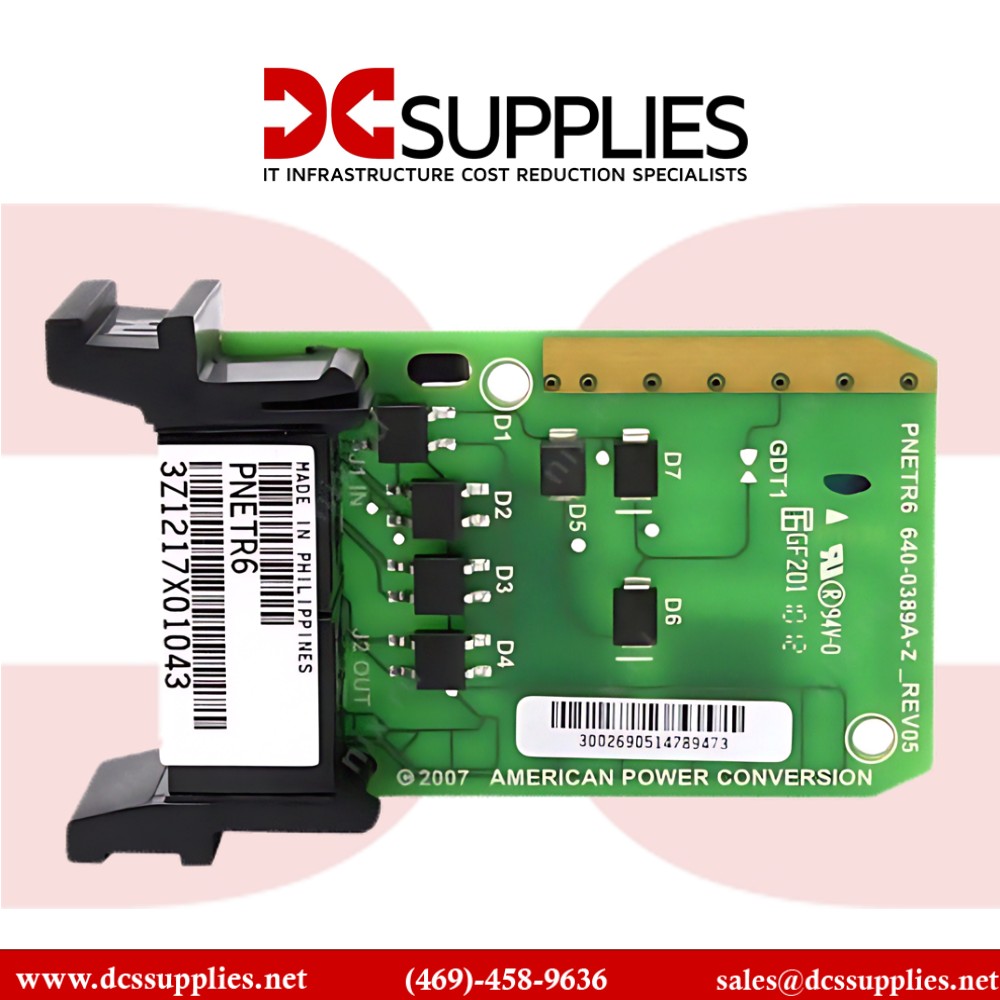

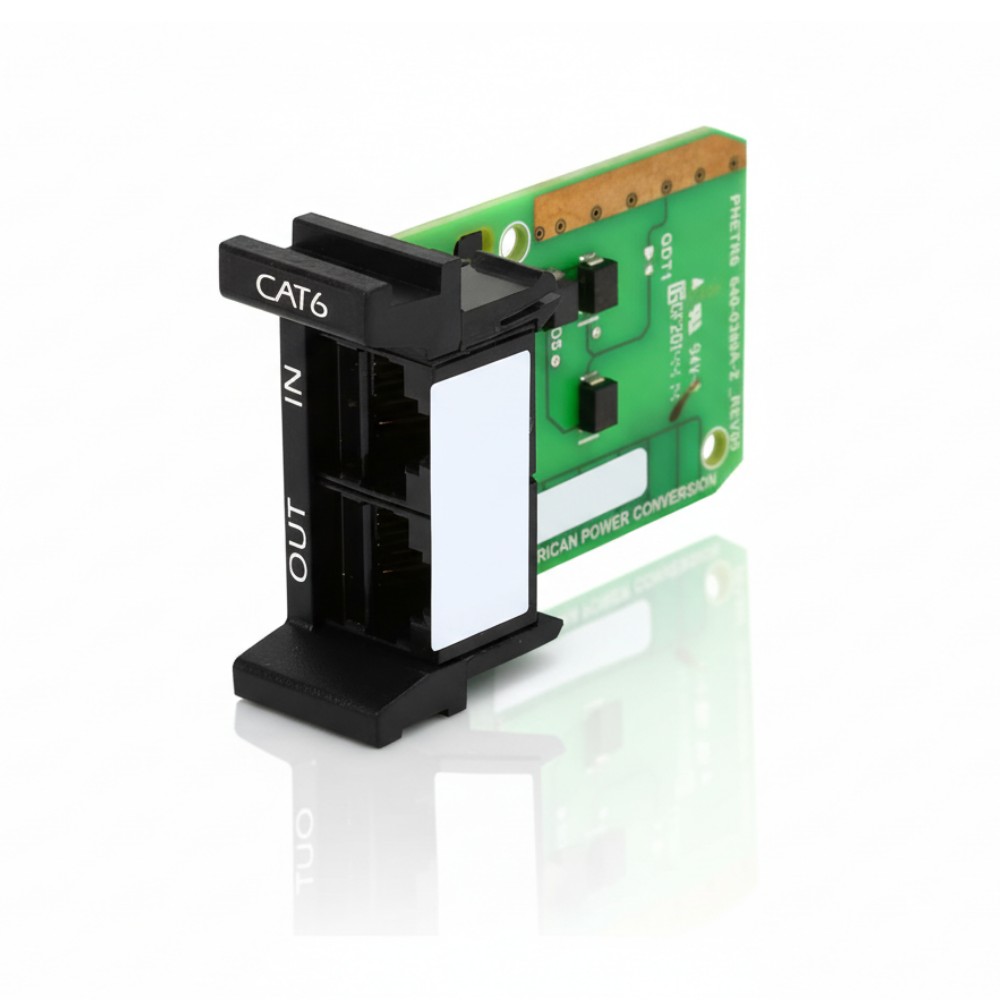

APC PNETR6 Surge Module for CAT6/CAT5e Network Line

New

Cat6 / Cat5e Surge Module (rack-mount)
×




  • New

Detailed Specifications

APC PNETR6 – Ethernet Surge Module

Overview :

The APC PNETR6 is a field-replaceable surge protection module for protecting Ethernet lines (Cat5e/6) against transient surges. IT staff and network engineers use it to safeguard switches, routers, and edge devices from electrical spikes. It supports data rates up to 10 GbE and is compatible with Power over Ethernet (PoE). It is designed for installation in APC’s PRM series rack chassis (PRM4 or PRM24) in networking closets, data center racks, or telecom rooms. It can be managed or replaced via standard rack-module procedures.

Key Features :

  • Supports 10 Gigabit Ethernet surge protection

  • Compatible with PoE on network lines

  • Fits 1U replaceable rack-module chassis

  • Low capacitance, minimal signal impact

Specifications

SpecificationValue
Brand APC
Part Number PNETR6
Product Type Surge protection module (Ethernet)
Supported cabling standards Cat5, Cat5e, Cat6
Maximum data rate 10 GbE
PoE compatibility Yes
Dimensions (W × D × H) 19 × 44 × 69 mm
Weight ~ 20 g
Operating temperature –15 °C to +45 °C
Storage temperature –15 °C to +45 °C
Relative humidity (operating & storage) 0 % to 95 % (non-condensing)
Peak current, normal mode 200 A
Peak current, common mode 250 A
