Overview

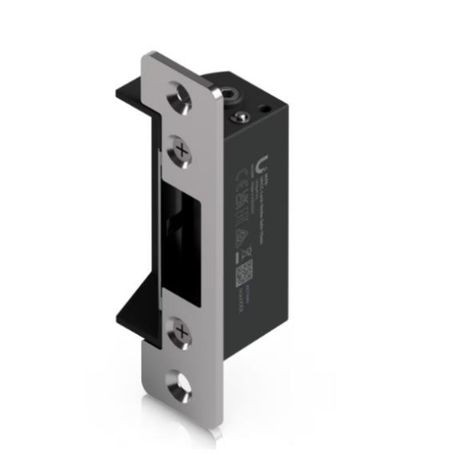

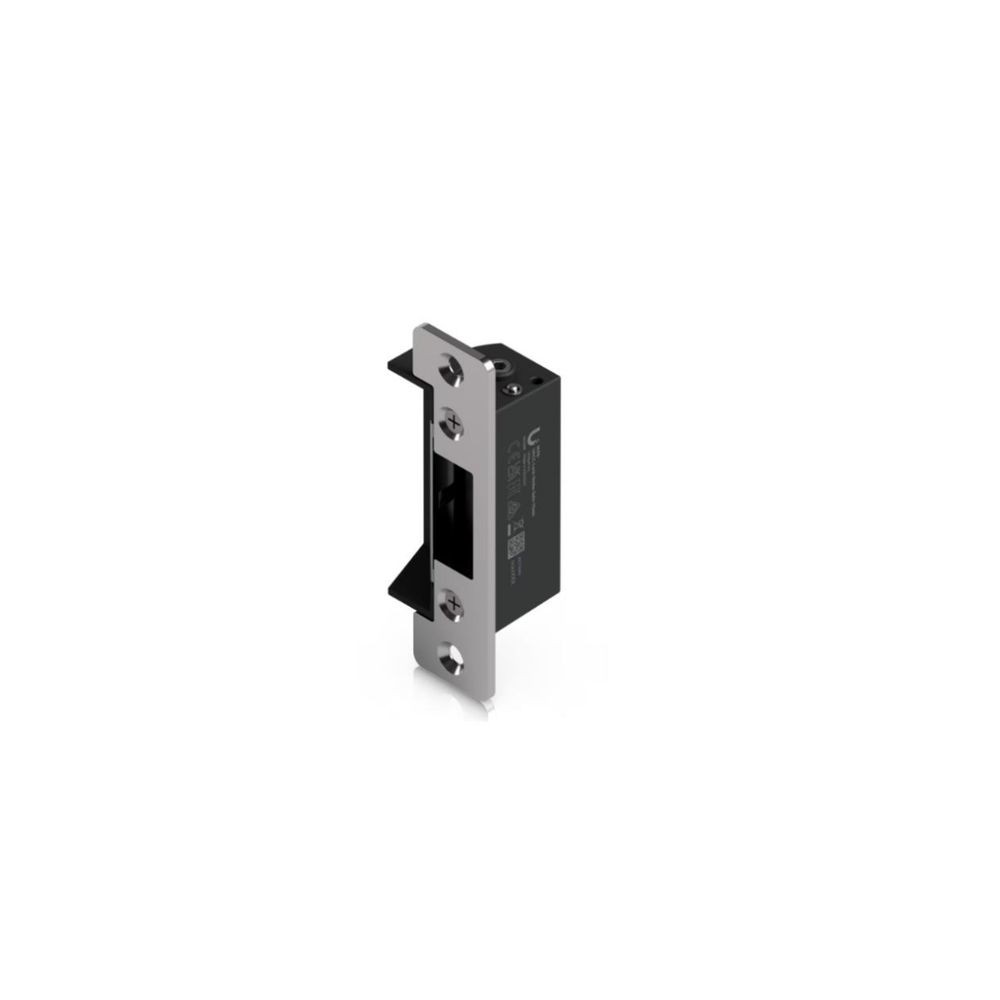

The Ubiquiti UACC-LOCK-STRIKE-SAFE-15MM is a UniFi Access fail-safe electric strike lock designed for single wooden or metal doors. It uses a 15 mm strike configuration and connects to a compatible UniFi Access Hub for controlled door access.
Lock Operation
This strike lock is fail-safe, meaning continuous power keeps the lock engaged and interruption of power releases the lock. It operates from 12V DC ±10% and draws 400mA ±10%. The lock provides a holding force of up to 1,200 kg (2,645 lb).
Door Compatibility and Installation
The UACC-LOCK-STRIKE-SAFE-15MM is designed for single wooden or metal doors and installs as a recessed door-frame lock. The package supports both short and long front-plate configurations for installation requirements specified by the door and frame.
Door Status Monitoring
An integrated dry-contact door status output provides door-open and door-closed status information. The contact is rated for a maximum of 30V DC and 0.1A.
Key Features
- Fail-safe electric strike operation
- 1,200 kg (2,645 lb) holding force
- 12V DC ±10% operating voltage
- Dry-contact door status monitoring
- Compatible with single wooden and metal doors
Applications
The strike lock is intended for controlled-access doors in offices, commercial facilities, campuses, and other UniFi Access installations requiring fail-safe electric locking.
DC Supplies Product Note
Because this is a fail-safe lock, the locking mechanism requires continuous electrical power to remain engaged; loss of power releases the lock.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-LOCK-STRIKE-SAFE-15MM |
|---|
| Product Type | Fail-Safe Electric Strike Lock |
|---|
| Product Line | UniFi Access |
|---|
| Lock Type | Fail Safe |
|---|
| Supported Door Type | Single wooden or metal door |
|---|
| Holding Force | 1,200 kg (2,645 lb) |
|---|
| Operating Voltage | 12V DC ±10% |
|---|
| Current | 400mA ±10% |
|---|
| Mounting | Door frame recess mount |
|---|
| Door Status Contact | Dry contact |
|---|
| Door Status Contact Rating | 30V DC, 0.1A maximum |
|---|
| Lock Body Material | Zinc alloy |
|---|
| Front Plate / Latches | Stainless steel |
|---|
| Lock Body Dimensions | 80 × 40 × 35 mm |
|---|
| Short Front Plate | 124 × 32 × 3 mm |
|---|
| Long Front Plate | 202 × 36 × 3 mm |
|---|
| Lock Body Weight | 185 g |
|---|
| Short Front Plate Weight | 50 g |
|---|
| Long Front Plate Weight | 130 g |
|---|
| Operating Temperature | -10°C to 60°C |
|---|
| Storage Temperature | -20°C to 70°C |
|---|
| Operating Humidity | 5–90% noncondensing |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | FCC, IC, CE |
|---|
FAQs
What type of lock is the UACC-LOCK-STRIKE-SAFE-15MM?
It is a fail-safe electric strike lock for single wooden or metal doors.
What voltage does the strike lock require?
It operates at 12V DC ±10% and draws 400mA ±10%.
What is the holding force?
The lock provides a holding force of up to 1,200 kg (2,645 lb).
Does it provide door status monitoring?
Yes. An integrated dry contact provides door-open and door-closed status information.
What happens when power is lost?
As a fail-safe lock, interruption of power releases the lock.
