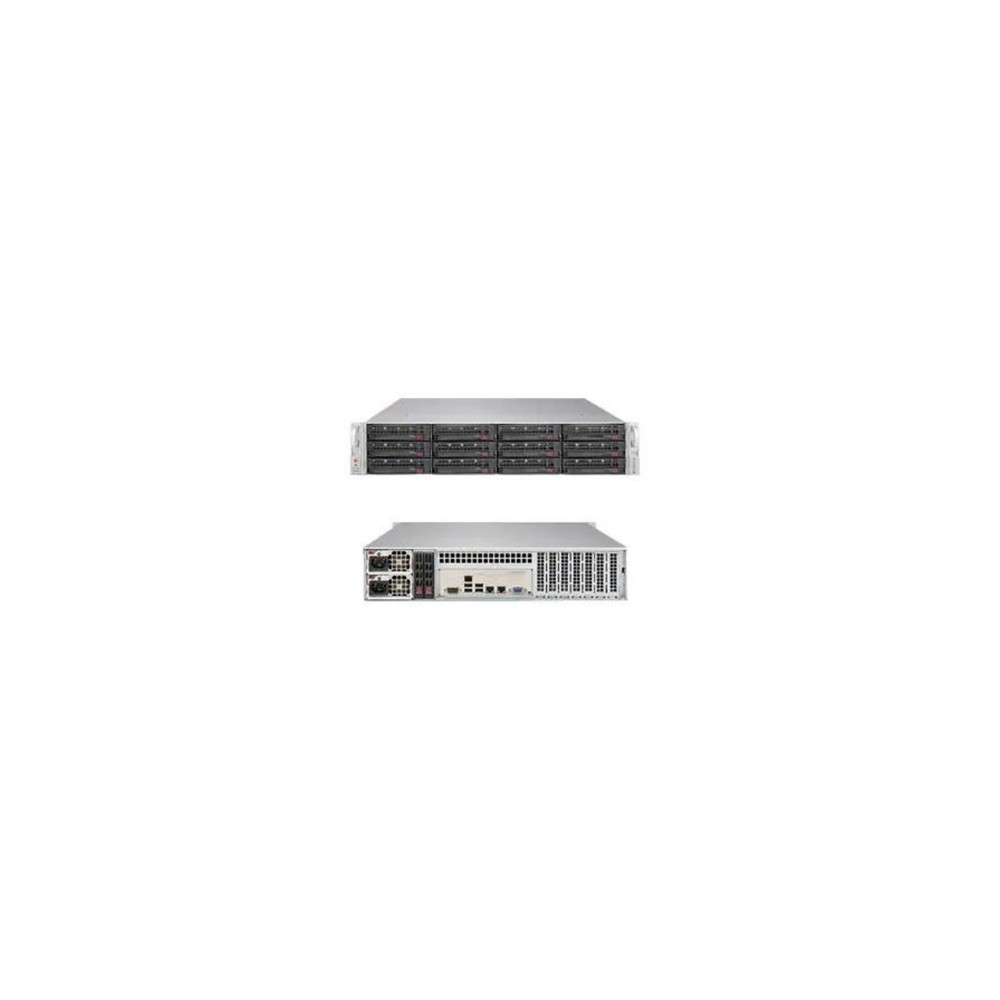

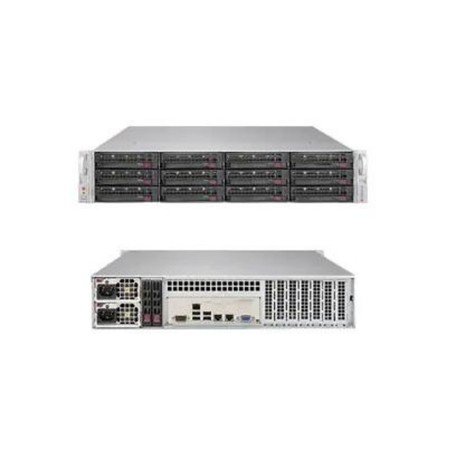

SUPERMICRO COMPUTER SSG-6029P-E1CR12T Storage Servers View larger

SUPERMICRO COMPUTER SSG-6029P-E1CR12T Storage Servers

SSG-6029P-E1CR12T

New

SuperStorage 6029P-E1CR12T -Server-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-12 Hot-swap 3.5 SAS3/SATA3 drive bays,2 Hot-swap 2.5 SATA3 drive bays(rear).
×




Detailed Specifications

Primary Information
System TypeServer
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C622
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size4 TB
Hard Drive / Size2.5"; 3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty14
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 6, 10, 50, 60
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)1200 Watt
Power / Voltage Required100-127Vac / 15-12A / 50-60Hz, 200-240Vac / 8.5-7A / 50-60Hz
Interfaces & Connections2 RJ45 10GBase-T LAN ports, 1 RJ45 Dedicated IPMI LAN port,, 4 USB 3.0 ports (rear), 1 Type A, 1 VGA port, 1 Fast UART 16550 port / 1 Header System BIOS,
Expansion Bays Total (Free)12 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" SATA3 drive bays (rear).
Expansion Slots Total (Free)3 PCI-E 3.0 x16 slot, 4 PCI-E 3.0 x8 slots
ModelSuperStorage 6029P-E1CR12T
Width17.2 Inch
Depth24.8 Inch
Height3.5 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
