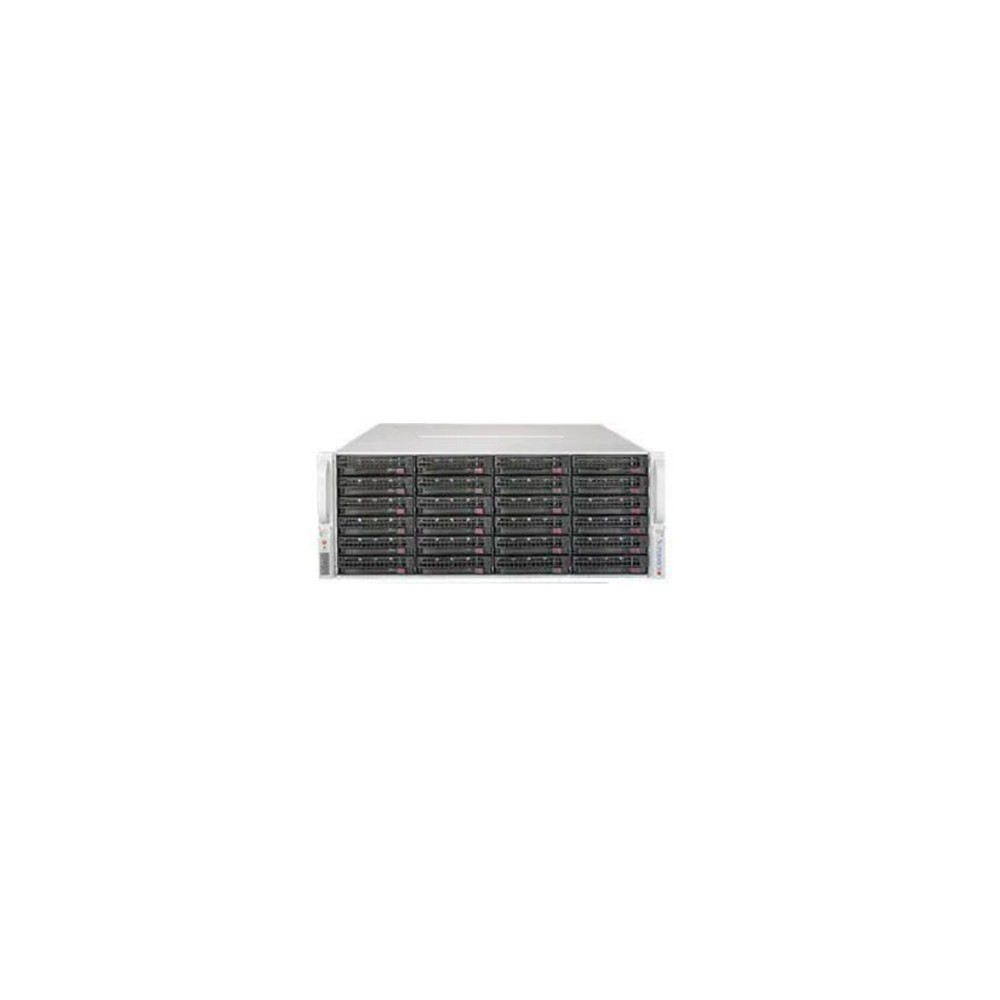

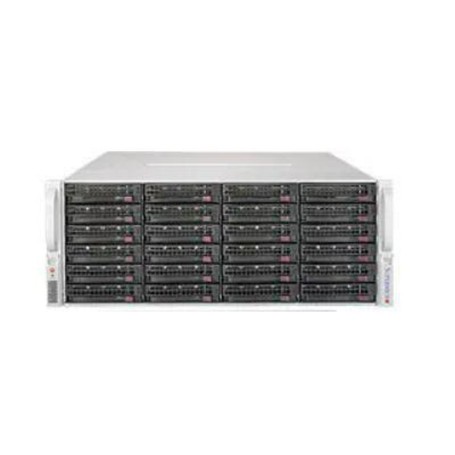

SUPERMICRO COMPUTER SSG-5049P-E1CTR36L Storage Servers

Name: SUPERMICRO COMPUTER SSG-5049P-E1CTR36L Storage Servers
Brand: SUPERMICRO COMPUTER
SKU: SSG-5049P-E1CTR36L

Part No: SSG-5049P-E1CTR36L

Condition: New

Short Description: Super Server-Intel, SSG UP 4U X11SPH-nCTF, CSE-847BE1C-R1K23LPB, Black

Quantity

Name ^*

Email ID ^*

Contact Number ^*

Country ^*

Enter Inquiry Details ^*

Verification Code^*

Primary Information
Storage Device Type	Network Storage Server
Cabinet Form Factor	4U
Processor / Type	Xeon
RAM / Technology	DDR4
Data Link Protocol	Gigabit Ethernet
Features	1. Single Socket P (LGA 3647) supports 2nd Gen Intel Xeon Scalable processor (Cascade Lake/Skylake) 2. 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM 3. 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8,1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 4. 2x 10GBase-T with Intel X557 5. 36 Hot-swap 3.5" SAS/SATA drive bays with SES3 (24 front + 12 rear); 2 Internal fixed bay support up to4x 2.5" drive bays (optional) 4 Internal fixed 2.5" drive bays2 Hot-swap 2.5" NVMe/SATA (rear, optional) 6. SAS3 via Broadcom 3008 controller 7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN 8. 7 High-performance 8cm PWM fans 9. 1200W Redundant Power Supplies Titanium Level (96%)

Storage
Hard Drive / Size	3.5"

Storage Controller
RAID Level	RAID 0, 1, 5, 10

Expansion
Interfaces & Connections	1x VGA port;5 USB 3.0 ports;8 USB 2.0 ports;2 COM Ports;2 RJ45 10GBase-T LAN ports; 1 RJ45 Dedicated IPMI LAN port

Special Feature
COO	TAIWAN
TAA compliance	Yes

UNSPSC Code
UNSPSC Code	43201802
