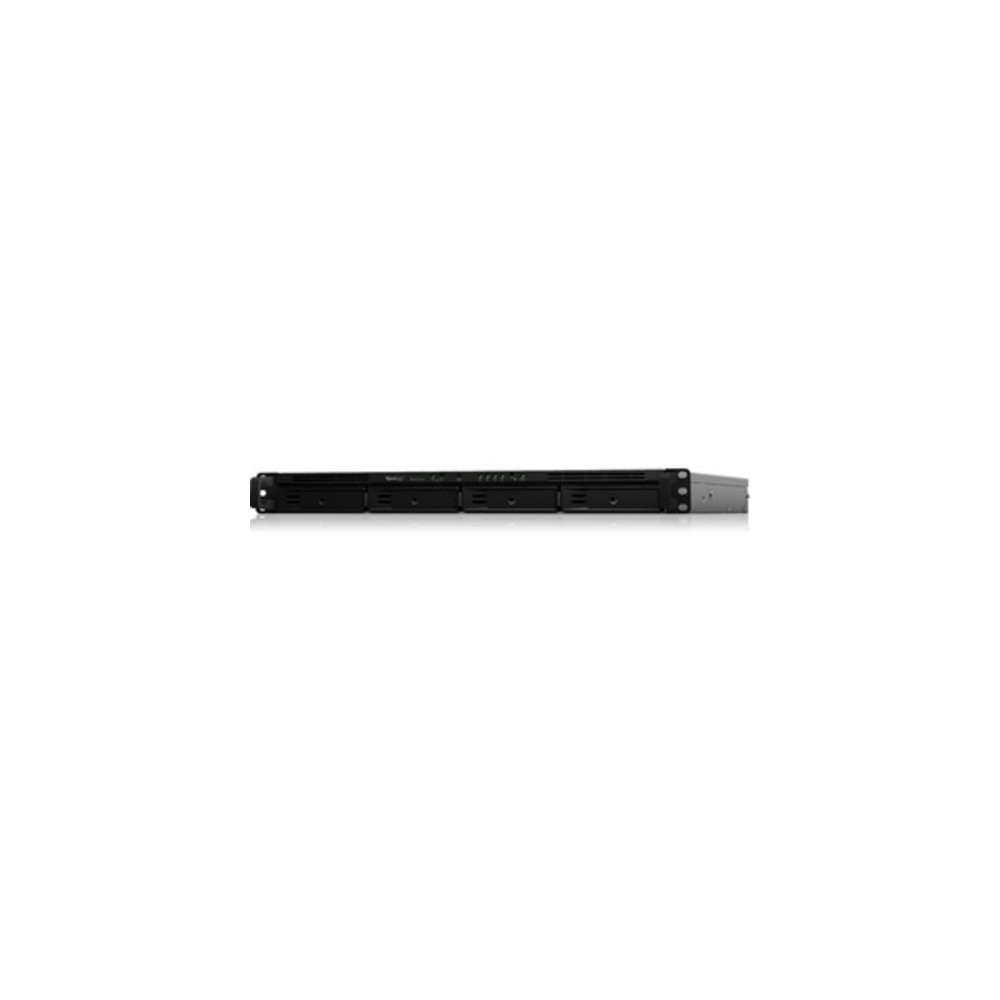

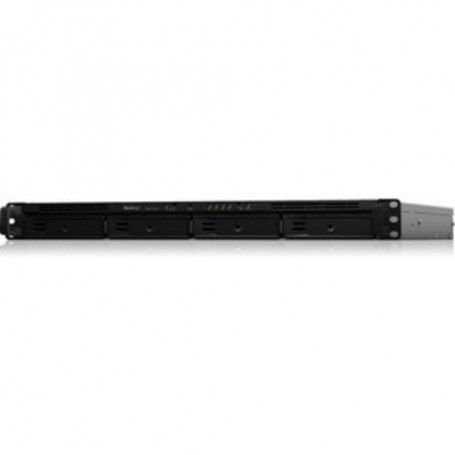

Synology 4 bay NAS RackStation RS1619xs+ (Diskless) View larger

Synology RackStation RS1619XS+ NAS/storage server Rack (1U) Ethernet LAN Black D-1527

RS1619XS+

New

In Stock

Synology RackStation RS1619XS+ NAS/storage server Rack (1U) Ethernet LAN Black D-1527
×




Synology, Synology Network Storages, Snyology Storage Devices, Synology NAS RackStation, RS1619xs, Synology RS1619xs, RS1619XS NAS, RS1619XS synology, RS1619XS access, RS1619XS review, RS1619XS manual, RS1619XS datasheet

$2,093.00

Detailed Specifications

Synology RackStation RS1619XS+ NAS/storage server Rack (1U) Ethernet LAN Black D-1527

Description

Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty. Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration. RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort.

Specifications

Storage
Storage drives installed No
Installed storage drive type No
Supported storage drive types HDD & SSD
Number of storage drives supported 4
Storage drive interface Serial ATA, Serial ATA II, Serial ATA III
Hot-swap drive bays Yes
RAID support Yes
Supported file systems BTRFS, Fat, HFS+, NTFS, ext3, ext4
RAID levels 0, 1, 5, 6, 10, JBOD
Storage drive sizes supported 2.5,3.5"
Number of M.2 (M & B) slots 2
Processor
Processor manufacturer Intel
Thermal Design Power (TDP) 35 W
Stepping V2
Scalability 1S
Processor threads 8
Processor socket BGA 1667
Processor series Intel Xeon D-1500
Processor package size 37.5 x 37.5 mm
Processor operating modes 64-bit
Processor lithography 14 nm
Processor codename Broadwell
Processor code SR2DK
Processor cache type L3
Processor cache 6 MB
Processor boost frequency 2.7 GHz
PCI Express slots version 2.0, 3.0
PCI Express configurations 1x16, 1x4, 1x8
On-board graphics card model Not available
ECC supported by processor Yes
CPU configuration (max) 1
Maximum internal memory supported by processor 128 GB
Conflict-Free processor Yes
Processor ARK ID 91195
Processor frequency 2.2 GHz
Processor family Intel® Xeon® D
Processor model D-1527
Processor cores 4
Memory
Internal memory type DDR4
Internal memory 8 GB
Maximum RAM supported 64 GB
Memory slots 4
Network
Link aggregation Yes
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Wi-Fi No
Wake-on-LAN ready Yes
Supported network protocols CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
iSCSI support Yes
Ports & interfaces
USB port Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
PCI Express x8 (Gen 3.x) slots 1
Ethernet LAN (RJ-45) ports 4
Expansion ports quantity 1
Hard drive
RAID support Yes
Supported file systems BTRFS, Fat, HFS+, NTFS, ext3, ext4
RAID levels 0, 1, 5, 6, 10, JBOD
Graphics
On-board graphics card model Not available
Design
Cooling type Active
Fan diameter 1.57" (4 cm)
Product colour Black
Number of fans 2 fan(s)
LED indicators Alarm, HDD, Power, Status
Chassis type Rack (1U)
Technical details
Type NAS
Device class Small & Medium Business
Backup function Yes
Backup features Cloud, iSCSI LUN
Product colour Black
Noise level 39.3 dB
Multilingual support Yes
LED indicators Alarm, HDD, Power, Status
Chassis type Rack (1U)
Number of fans 2 fan(s)
Sustainability certificates RoHS
Harmonized System (HS) code 84714100
Performance
Browser supported Chrome, Firefox, Internet Explorer 10+, Safari 10+
Type NAS
Device class Small & Medium Business
Backup function Yes
Backup features Cloud, iSCSI LUN
On/off switch Yes
Windows operating systems supported Windows 10, Windows 7
Server operating systems supported Windows Server 2016
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Web-based management Yes
Security algorithms HTTPS, SSH, SSL/TLS
Reset button Yes
Operating system installed DiskStation Manager
Noise level 39.3 dB
Multilingual support Yes
Access Control List (ACL) Yes
Cooling
Cooling type Active
Fan diameter 1.57" (4 cm)
Number of fans 2 fan(s)
Security
Security algorithms HTTPS, SSH, SSL/TLS
Access Control List (ACL) Yes
Software
Windows operating systems supported Windows 10, Windows 7
Server operating systems supported Windows Server 2016
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Operating system installed DiskStation Manager
Management features
On/off switch Yes
Web-based management Yes
Reset button Yes
Power
Power consumption (HDD standby) 34.78 W
Power supply location Built-in
Power supply unit (PSU) capacity 150 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 68.68 W
Number of power supply units 2
Weight & dimensions
Width 18.9" (480 mm)
Depth 20.4" (518.6 mm)
Height 1.73" (44 mm)
Weight 18 lbs (8.16 kg)
Packaging content
Quick installation guide Yes
Cables included AC
Processor special features
UART Yes
Thermal Monitoring Technologies Yes
Maximum number of PCI Express lanes 32
Intel® Turbo Boost Technology 2.0
Intel® Secure Key Yes
Intel® OS Guard Yes
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Virtualization Technology (VT-x) Yes
Intel TSX-NI version 1.00
Intel TSX-NI Yes
Intel Trusted Execution Technology Yes
Intel Secure Key Technology version 1.00
Intel Enhanced Halt State Yes
Intel 64 Yes
Idle States Yes
Execute Disable Bit Yes
Enhanced Intel SpeedStep Technology Yes
Embedded options available Yes
Memory channels supported by processor Dual
Memory types supported by processor DDR3-SDRAM, DDR4-SDRAM
System requirements
Windows operating systems supported Windows 10, Windows 7
Server operating systems supported Windows Server 2016
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 5 - 35 °C
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 196850.4" (0 - 5000 m)
Certificates
Certification EAC VCCI RCM FCC CE BSMI
Logistics data
Harmonized System (HS) code 84714100
Packaging data
Cables included AC
Other features
Processor ARK ID 91195
