Detailed Specifications

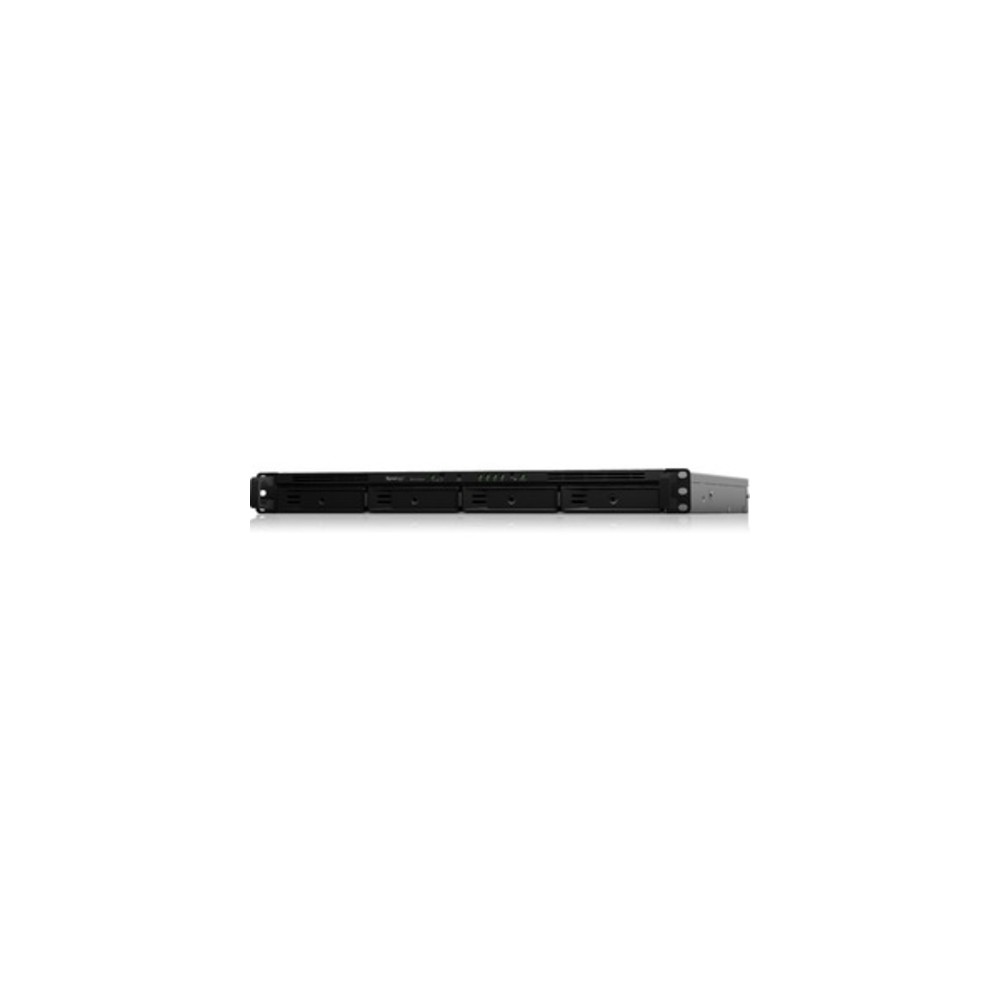

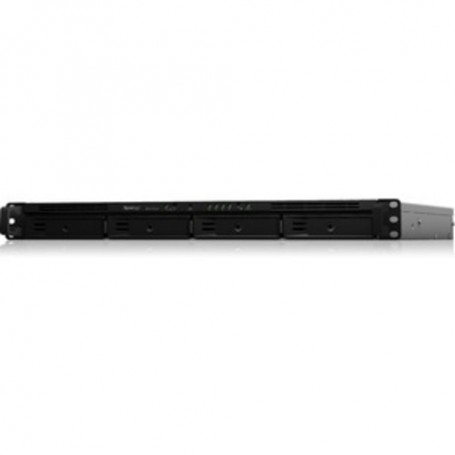

Synology 4 bay NAS RackStation RS1619xs+ (Diskless)
Overview RS1619XS+:
Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology's 5-year limited warranty.
Powerful NAS Solution in 1U Form Factor
Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration.
RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit2. Storage capacity can be expanded according to your business needs with minimal effort.
Enterprise-Grade Applications
Powered by the innovative Synology DiskStation Manager (DSM), RS1619xs+ comes fully-equipped with applications and features designed specifically for large-scale businesses:
- Windows® AD and LDAP support allows easy integration with existing business directory services.
- Windows ACL support provides fine-grained access control and efficient privilege settings, allowing RS1619xs+ to fit seamlessly into existing infrastructure.
- Internet file access is simplified by the encrypted FTP server and the web-based file explorer Synology File Station. HTTPS, firewall, and IP auto-block support ensures file sharing over the Internet is protected with a high level of security.
- Application Privileges controls access to applications and packages based on each individual account, user group, or IP address.
Btrfs: Next Generation Storage Efficiency
RS1619xs+ introduces the Btrfs file system, bringing the most advanced storage technologies to meet the management needs of modern businesses:
- Advanced snapshot technology with customizable backup schedule allows shared folders to be backed up in a minimum 5-minute interval, without consuming heavy system resources.
- File and folder level data restoration brings huge conveniences and saves time for users who wish to restore only a specific file or folder.
- Flexible Shared Folder and User Quota System provides comprehensive quota control on all user accounts and shared folders.
- File self-healing: Btrfs file system is able to auto-detect corrupted files with mirrored metadata and recover broken data using the supported RAID volumes, which include RAID1, 5, 6, and 10.
- A cutting-edge iSCSI service built for IT administrators that offers advanced LUN and provides lightning-fast snapshot creation, recovery, and cloning.
Specifications RS1619XS+:
Computing
| CPU |
2.2 to 2.7 GHz Quad-Core |
| Processor |
Intel Xeon D-1527 |
| Total Installed Memory |
8 GB ECC DDR4 |
| User-Replaceable Memory |
1 x 8 GB |
| Total Memory Slots |
4 x DIMM |
| Maximum Memory Capacity |
64 GB |
General
| Number of Bays |
4 x 2.5"/3.5"
2 x M.2 (2280) |
| I/O |
4 x RJ45 (Gigabit Ethernet)
2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s)) |
| Compatible Drive Interface |
SATA (Unspecified Version) |
| Media Card Slots |
None |
| Form Factor |
Rackmount (1 RU) |
| RAID |
RAID 0, 1, 10, 5, 6, JBOD |
| Hot-Swap Support |
Yes |
| PCI Expansion |
1 x PCIe 3.0 (x8 Electrical) |
| Wake on LAN |
Yes |
| Link Aggregation and Failover Support |
Yes |
Networking
| iSCSI LUN |
512 |
| iSCSI Target |
256 |
| Max Concurrent Connections |
10,000 |
| Max Folders |
512 |
| Max Sync Tasks |
32 |
| Max Groups |
512 |
| Max User Accounts |
16,000 |
| Max Volume Number |
1024 |
| Max Cameras Supported |
75 |
Software
| Installed Operating System |
Synology DSM |
| Supported File Systems |
Internal: BTRFS, EXT4
External: BTRFS, EXT3, EXT4, FAT, HFS+, NTFS, exFAT |
| OS Compatibility |
Windows 7
Windows 10
macOS 10.11 or Later
*As of January, 2019: Check with manufacturer for the most up-to-date compatibility |
| Supported Browsers |
Chrome, Firefox, Internet Explorer, Safari |
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Source |
Internal Power Supply |
| Power Consumption |
68.68 W (Typical)
34.78 W (Standby) |
| PSU Wattage |
2 x 150 W (Supports Redundancy) |
Environmental
| Operating Temperature |
40 to 95°F / 4 to 35°C |
| Operating Humidity |
5 to 95% |
| Storage Temperature |
-5 to 140°F / -20 to 60°C |
| Certifications |
BSMI, CCC, CE, EAC, FCC, Kcc, RCM, VCCI
*as per Manufacturer |
