Detailed Specifications

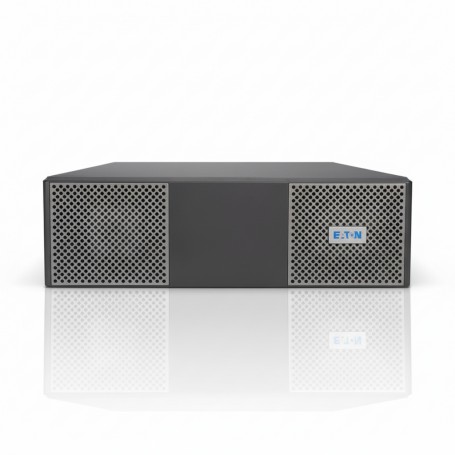

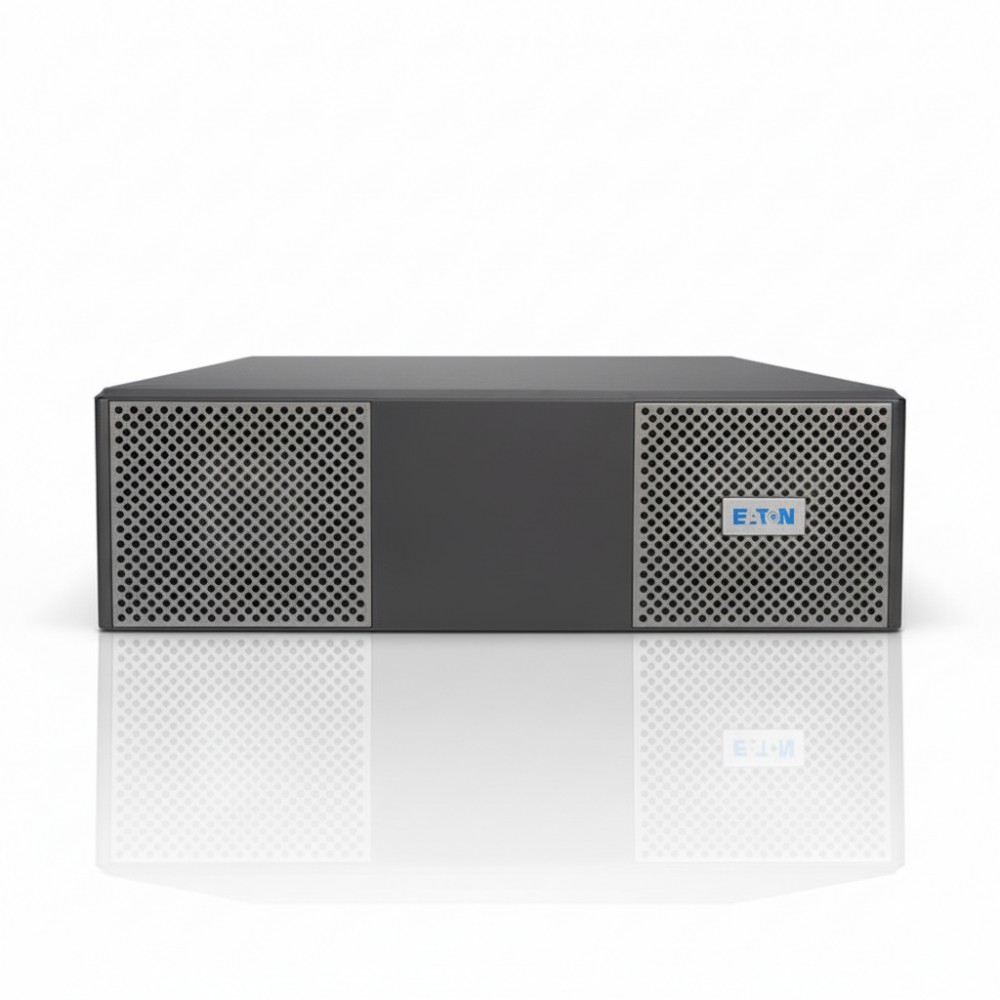

Eaton 9PXTFMR5 - 5kVA Step-Down Transformer
Overview:
The Eaton 9PXTFMR5 is a 5kVA step-down transformer designed to convert 208/240V AC input to 120V AC output, providing reliable power distribution for critical IT equipment. It features 18 NEMA 5-20R outlets, organized into two groups of nine, allowing for efficient power distribution to multiple devices. The transformer is housed in a 3U rack/tower form factor, making it suitable for installation in standard server racks or as a standalone unit. With a 3-foot input cord and an L6-30P plug, it offers flexibility in various deployment scenarios. The 9PXTFMR5 is compatible with Eaton's 9PX5K, 9PX6K, 9PX3K3UN, and 9PX 8-11K UPS models, enhancing the overall power protection solution. Certified with CE, cULus, NOM, and ENERGY STAR, it ensures compliance with international standards and energy efficiency requirements. This transformer is ideal for data centers, server rooms, and other environments requiring stable and efficient power conversion.
Key Features :
Converts 208/240V AC to 120V AC output
18 NEMA 5-20R outlets in two groups of nine
3U rack/tower form factor for flexible installation
Compatible with Eaton 9PX5K, 9PX6K, 9PX3K3UN, and 9PX 8-11K UPS models
Certified with CE, cULus, NOM, and ENERGY STAR
Specifications:
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 9PXTFMR5 |
| Product Type | Step-Down Transformer |
| Input Voltage | 208/240V AC |
| Output Voltage | 120V AC |
| Power Capacity | 5kVA |
| Output Receptacles | 18 x NEMA 5-20R (2 groups of 9) |
| Input Connection | L6-30P |
| Input Cord Length | 3 ft |
| Rack Size | 3U |
| Dimensions (H x W x D) | 5.1" x 17.3" x 25.4" |
| Weight | 95 lbs |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0-95% non-condensing |
