Detailed Specifications

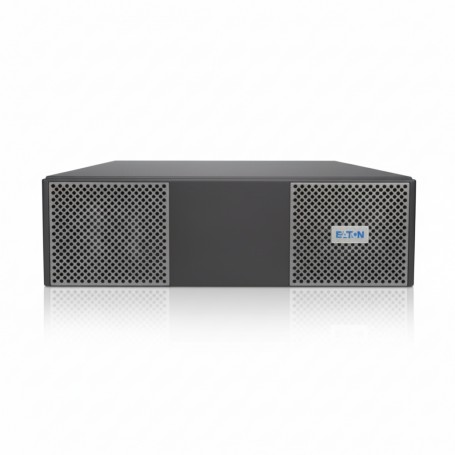

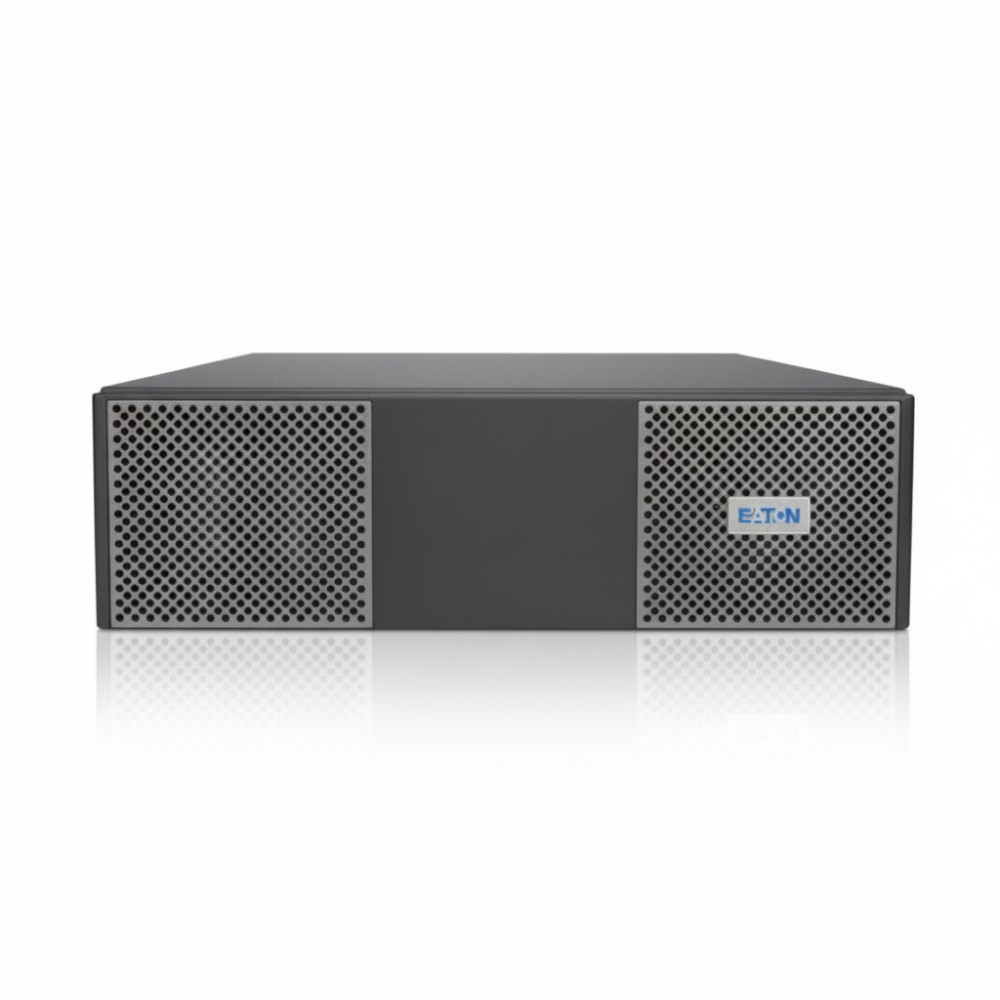

Eaton 9PXTFMR11 - Step-Down Transformer Module for 9PX UPS
Overview :
The Eaton 9PXTFMR11 is a step-down transformer module designed for use with Eaton 9PX UPS systems to provide 120V output from a 200/208/230V input source. It enables the UPS to power equipment requiring lower voltages while maintaining proper isolation and safety compliance. This transformer module is commonly deployed in data centers, branch offices, and network closets. It integrates seamlessly with 9PX UPS units for consistent and efficient power distribution.
Key Features :
Converts 200-230V input to 120V output
Compatible with Eaton 9PX UPS series
Rack/tower convertible installation
Provides galvanic isolation and safety
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 9PXTFMR11 |
| Product Type | Step-Down Transformer Module |
| Compatibility | Eaton 9PX UPS series |
| Input Voltage | 200/208/230V AC |
| Output Voltage | 120V AC |
| Form Factor | Rack/Tower convertible |
| Frequency | 50/60 Hz |
| Power Capacity | Matches corresponding 9PX UPS rating |
| Connector Type | IEC and NEMA outlets (varies by model) |
| Isolation | Galvanic isolation provided |
| Operating Temperature | 0°C to 40°C |
| Dimensions (H x W x D) | Approx. 86.2 x 440 x 605 mm |
| Weight | Approx. 34.7 kg |
| Mounting | 2U rack-mountable |
